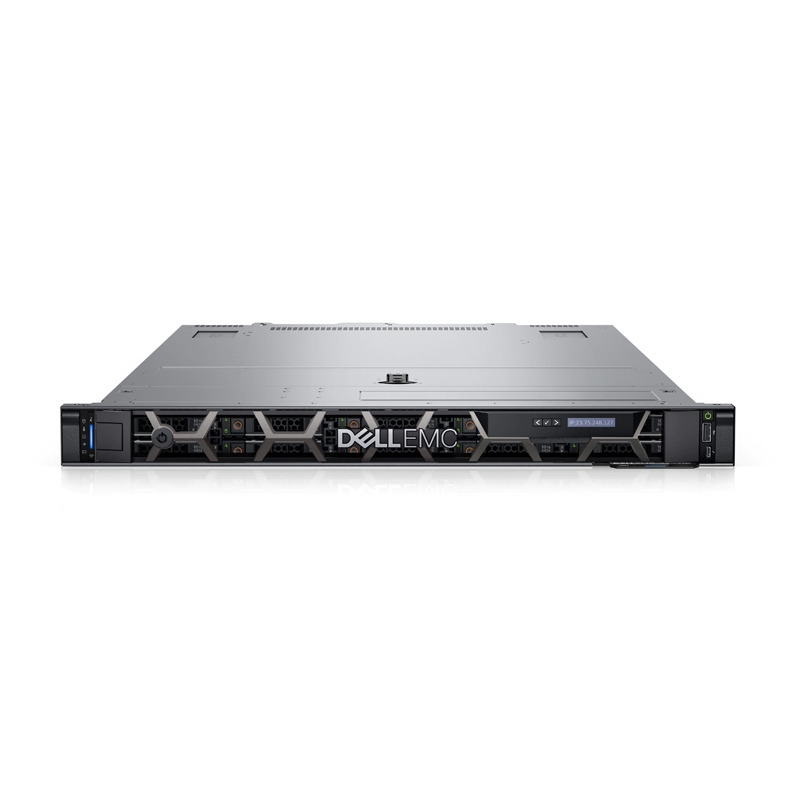

Dell R650 8SFF Server

Dell R650 8SFF Server Specification

Processor

Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor

Operating System

(Dell Technologies recommends Windows 11 Pro for business)

Canonical® Ubuntu® Server LTS

Citrix® Hypervisor®

Microsoft® Windows Server® with Hyper-V

Red Hat® Enterprise Linux

SUSE® Linux Enterprise Server

VMware® ESXi®

Chipset

Intel®C620A chipset

Accelerators

Up to three 75 W single-width GPU

Memory

DIMM Speed

Up to 3200 MT/s

Memory Type

RDIMM

LRDIMM

NVDIMM

Intel® Persistent Memory 200 series (BPS)

Memory Module Slots

32 DDR4 DIMM slots

Maximum RAM

RDIMM 2 TB

LRDIMM 4TB

NVDIMM 128 GB

Intel® Persistent Memory 200 series (BPS) 8TB

Storage

Front Bays

Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB

Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB

Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB

Rear bays

Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB

Storage Controllers

Internal Controllers

PERC H745, H345, HBA355I, H755, H755N

External Controllers

PERC H840, HBA355E

Software RAID

S150

Internal Boot

Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB

Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB

Internal Dual SD Module or

Internal USB 3.0

Security

Cryptographically signed firmware

Secure Boot

Secure Erase

Silicon Root of Trust

System Lockdown (requires iDRAC9 Enterprise or Datacenter)

TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server

iDRAC9

iDRAC Service Module

iDRAC Direct

Quick Sync 2 wireless module

Consoles

OpenManage Enterprise

OpenManage Power Manager plugin

OpenManage SupportAssist plugin

OpenManage Update Manager plugin

Mobility

OpenManage Mobile

Tools

iDRAC RESTful API with Redfish

IPMI

RACADM CLI

System Update Utility

Update Catalogs

OpenManage Integrations

BMC® Truesight

Microsoft® System Center

Red Hat® Ansible® Modules

VMware® vCenter and vRealize Operations Manager

OpenManage connections

IBM Tivoli® Netcool/OMNIbus

IBM Tivoli® Network Manager IP Edition

Micro Focus® Operations Manager

Nagios Core

Nagios® XI

Power Supplies

800 W Platinum AC/240 V Mixed Mode

1100 W Titanium AC/240 V Mixed Mode

1400 W Platinum AC/240 V Mixed Mode

1100 W DC -48 - 60 V

Hot plug power supplies with full redundancy option

Ports

Network Options

2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)

Front Ports

1 x iDRAC Direct (Micro-AB USB) port

1 x USB 2.0

1 x VGA

Rear Ports

1 x USB 2.0

1 x USB 3.0

1 x Serial (optional)

2 x RJ-45

1 x VGA (optional for liquid cooling configuration)

Internal Ports

1 x USB 3.0 (optional)

Slots

Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots

Video Card

1 x VGA (optional for liquid cooling configuration)

Bezel

Optional LCD bezel or security bezel

Form Factor

1U rack server

Dimensions & Weight

Height

42.8 mm (1.68 inches)

Width

482 mm (18.97 inches)

Depth

809 mm (31.85 inches) – without bezel

822.84 mm (32.39 inches) – with bezel

Weight

21.2 kg (46.7 lbs)

Rack Support

ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
