main product photo

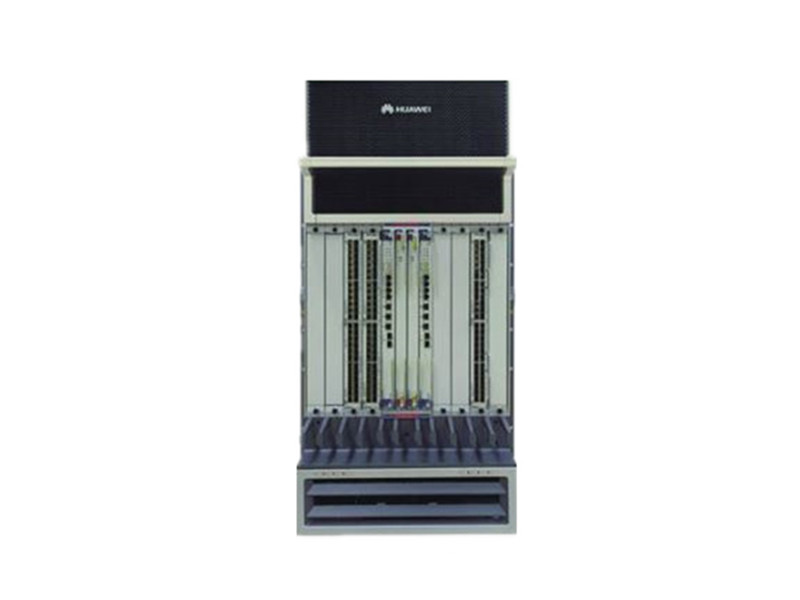

CR5P08BASD77, Huawei NE40E-X8A Router, 2 MPUs/2 SFUs(1T)/6 DC Power

  • Brand: Huawei
  • Model: CR5P08BASD77
List Price: $668,571.43
88% OFF
$81,824.00
Price Alert ×
CR5P08BASD77, Huawei NE40E-X8A Router, 2 MPUs/2 SFUs(1T)/6 DC Power
CR5P08BASD77, Huawei NE40E-X8A Router, 2 MPUs/2 SFUs(1T)/6 DC Power US$81,824.00
If you see a better price elsewhere, please let us know and we will work hard to find the product at the better price. We will notify you if the price drops.
Please enter a valid email address.
Please enter your name.
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    23 Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    Express Shipping to United States Get Shipping Estimate
    Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    CR5P08BASD77, Huawei NE40E-X8A Router, 2 MPUs/2 SFUs(1T)/6 DC Power

    CR5P08BASD77, Huawei NE40E-X8A Router, 2 MPUs/2 SFUs(1T)/6 DC Power

    100% Genuine Ready to Ship
    $668,571.43
    88% OFF
    $81,824.00
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Download
    Overview

    Huawei CR5P08BASD77 Overview

    The Huawei CR5P08BASD77 is a carrier-grade NE40E-X8A router designed for high-performance core and aggregation networks. With 25.16 Tbit/s switching capacity and 5,760Mpps forwarding performance, it supports dense 100GE, 40GE and multi-rate POS interfaces for converged IP/MPLS backbones across Asia, Europe, Africa and North America. Advanced IPv4, IPv6, MPLS and multicast capabilities, together with rich QoS, security and OAM toolsets, meet the needs of distributors, system integrators and large enterprise or service provider end users building scalable, highly reliable networks.

    Product Highlights

    25.16 Tbit/s
    Switch Cap
    5,760Mpps
    Fwd Rate
    12 Slots
    Modular Ch

    Product Components Breakdown

    Front Panel of the Product:

    CR5P08BASD77 front Panel

    Rear Panel of the Product:

    CR5P08BASD77 Back Panel

    Product Applications Scenarios

    Service Providers
    High-capacity IPv4/IPv6 and MPLS routing enables scalable carrier backbones, improving edge-core utilization and reducing transport costs by up to 30%.
    Data Center
    Multi‑100GE interfaces and 25.16 Tbit/s switching provide low-latency spine connectivity, consolidating traffic and simplifying data center interconnect.
    Enterprise Network
    Rich QoS and VPN services allow large enterprises to converge voice, video and data, cutting WAN complexity and branch routing costs by around 20%.

    Product Features Comparison

      Huawei Cisco Huawei Huawei
    Model CR5P08BASD77, Huawei NE40E-X8A Router, 2 MPUs/2 SFUs(1T)/6 DC Power ASR1002-5G-SEC/K9, Cisco ASR1002 Router, 5Gbps bandwidth/AES-3DES/IPsec VPN CR5P03BASD73, Huawei NE40E-X3 Router, 2 MPUs/2 DC Power/No Software License CR5B00BKPB50, Huawei NE5000E Router, Cluster Chassis/High Reliability/No Fan & PSU
    Brand Huawei Cisco Huawei Huawei
    Routing Throughput n/a Max Throughput: 36 Gbps Switching Capacity: 1.08 Tbit/s Throughput capability: 819Tbps/64 Chassis (400G)
    Interface Configuration Interface Types: 100 GE/40 GE 10 GE- LAN/WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1cPOS Channelized OC-3/STM-1 Channelized STM-4 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/T3 CE1/CT1 Ports: 4 built-in 1GE ports Interface Types: 100 GE/40 GE 10 GE- LAN/WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1cPOS Channelized OC-3/STM-1 Channelized STM-4 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/T3 CE1/CT1 Interface Types: GE、10GE、155M POS、622M POS、2.5G POS、10G POS、40G POS、40GE、100GE
    Supported Protocol IPv4, IPv6, MPLS, Layer 2 Features, Reliability, QoS, OAM, Multicast, Security, Value-added Services IPsec VPN: Yes; Firewall: Yes IPv4, IPv6, MPLS, Layer 2 Features, Reliability, QoS, OAM, Multicast, Security, Value-added Services Routing protocol: IPv4 static route, OSPF, IS-IS, BGP, PIM, MSDP, MBGP; IPv6 dual stack
    VPN Capability Value-added Services: IPsec tunnel, Distributed GRE tunnel, Distributed NetStream, High-precision NAT: CGN IPsec VPN: Yes Value-added Services: IPsec tunnel, Distributed GRE tunnel, Distributed NetStream, High-precision NAT: CGN n/a
    Integrated Features QoS, OAM, Multicast, Security, Environment Requirements Firewall, Encryption, Redundancy, Management Interfaces QoS, OAM, Multicast, Security, Environment Requirements High Availability features, IPv6, clustering

    Optional Add-ons

    Model Number Description
    CR5D0MPUA450 Huawei central main processing unit A4 with 2×2G memory and 2×2G CF card for NE/NetEngine core routers

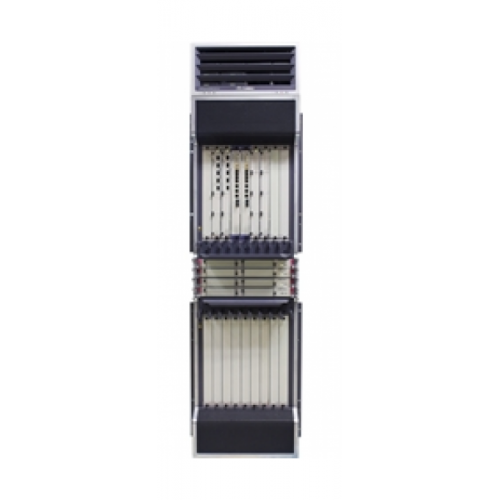

    CR5B00BKPB50 Huawei NE5000E cluster chassis for building scalable, resilient carrier core infrastructures
    CR5P16BASA76 Huawei NE40E-X16A chassis bundle with 2 MPUs and 4 SFUs (480G) for high-capacity expansion

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei CR5P08BASD77 Specification

    Model
    CR5P08BASD77
    Brand
    Huawei
    Switching Capacity
    25.16 Tbit/s
    Forwarding Performance
    5,760Mpps
    Number of Slots
    12 slots, including 2 SRUs (1:1 backup), 2 SFUs (3+1 backup), and 8 LPUs
    Dimensions (W x D x H)
    442mm x 650mm x 934mm (21U)
    Power Consumption (in full configuration)
    4,770W (480G)
    Interface Types
    100 GE/40 GE 10 GE- LAN/WAN GE/FE OC-192c/STM-64c POS OC-48c/STM-16c POS OC-12c/STM-4c POS OC-3c/STM-1cPOS Channelized OC-3/STM-1 Channelized STM-4 OC-3c/STM-1c ATM OC-12c/STM-4c ATM E3/T3 CE1/CT1
    IPv4
    Support for static routing as well as dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4 Line rate forwarding on all interfaces in complex routing environments, for example, when route flapping occurs
    IPv6
    Various IPv4-to-IPv6 transition technologies: manual tunnel, automatic tunnel, 6to4 tunnel, GRE tunnel, and ISATAP tunnel IPv4 over IPv6 tunnel and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Internet Control Message Protocol Version 6 (ICMPv6), Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB L2NAT, NAT444, DS-Lite, and NAT64
    MPLS
    MPLS TE and MPLS/BGP VPN, in compliance with RFC 2547 Inter-AS VPN Option A/B/C Integration with Internet services Martini and Kompella MPLS L2VPN L2VPN techniques, such as VPLS and VLL IP interworking over heterogeneous media Multicast VPN MPLS-TP, EVPN, Remote LFA
    Layer 2 Features
    IEEE 802.1Q, IEEE802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s VLAN aggregation (super VLAN) Filtering list based on MAC addresses and ports 1483B
    Reliability
    IP/LDP/VPN/TE/VLL FRR Protection mechanisms such as IP/TE auto rerouting, IGP/BGP/multicast route convergence, VRRP, RRPP, IP-Trunk load balancing and backup, BFD, MPLS/Ethernet OAM, Y.1731, and routing protocol/port/VLAN damping PW redundancy, E-Trunk, E-APS, and E-STP In-service patching for smooth software upgrade Passive backplane design Redundancy backup for key components, such as route processing modules, SFUs, and power modules to guard against single points of failure Switching between components that hot-back up each other GR, NSF, NSR, and ISSU Hot swap of all components
    QoS
    Well-designed HQoS and advanced scheduling and congestion avoidance technologies on each LPU Accurate traffic policing and traffic shaping Complex rule definition and fine-grained flow identification MPLS H-QoS, ensuring QoS for MPLS VPN, VLL, and PWE3 services 8CT that combines MPLS TE and the DiffServ model TE-tunnel-oriented QoS
    OAM
    Y.1731, IP FPM, RFC 2544, MPLS OAM, 802.1ag, and 802.3ah, OPS
    Multicast
    IGMPv1, IGMPv2, and IGMPv3 Multicast routing protocols, including PIM-DM, PIM-SM, PIM-SSM, Multicast Source Discovery Protocol (MSDP), and Multiprotocol BGP (MBGP) Static multicast Multicast CAC Interoperability between multicast protocols Processing of multicast policies based on multicast routing protocols and multicast forwarding Multicast QoS and multicast replication for IPoE access users Two-level multicast replication on the SFUs and LPUs to optimize the multicast effect
    Security
    ACL-based packet filtering URPF GTSM DHCP snooping ARP attack defense and DoS attack defense MAC address limit and MAC-IP binding Secure Shell (SSH) and SSH version 2 (SSH v2) BGP-Flowspec RIPv2, OSPF, IS-IS, and BGP MD5, SHA256, Keychain
    Value-added Services
    IPsec tunnel Distributed GRE tunnel Distributed NetStream High-precision NAT: CGN
    Environment Requirements
    Long-term operating temperature: 0°C to 45°C Short-term operating temperature: -5°C to 55°C Long-term operating humidity: 5% RH to 85% RH Short-term operating humidity: 0% RH to 100% RH Operating altitude: ≤ 3,000 meters
    Weight
    110 kg

    Get more information

    Discover unbeatable prices and fast shipping for the CR5P08BASD77, Huawei NE40E-X8A Router, 2 MPUs/2 SFUs(1T)/6 DC Power . Access the detailed CR5P08BASD77, Huawei NE40E-X8A Router, 2 MPUs/2 SFUs(1T)/6 DC Power datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    How cost-effective is the Huawei NE40E-X8A Basic Configuration?

    The NE40E-X8A offers a cost-effective solution with its robust feature set, high performance, and expandability, providing a strong return on investment for enterprises.

    How does the Huawei NE40E-X8A compare to other similar products?

    The NE40E-X8A stands out with its integrated hardware components, such as MPUs and SFUs, and its capability to handle high data throughput, making it competitive in its category.

    Can the Huawei NE40E-X8A handle heavy traffic loads?

    Yes, with its dual MPUs and dual SFUs (1 T), the NE40E-X8A is capable of handling heavy traffic loads and ensuring stable network performance.

    Is router-switch.com a reliable distributor?

    Absolutely. As a multi-brand authorized distributor, router-switch.com is directly certified by leading technology manufacturers. We guarantee 100% genuine products, competitive pricing, and full manufacturer warranties and support.
