How cost-effective is the Huawei NE20E-S8?

The Huawei NE20E-S8 offers high performance at a competitive price, making it a cost-effective choice for enterprises.

What are the key characteristics of the NE20E-S8?

The NE20E-S8 features a robust chassis, dual MPU units for redundancy, and dual AC power supplies for reliable performance.

What is the typical application scenario for the NE20E-S8?

The Huawei NE20E-S8 is ideal for use in enterprise core networks, data centers, and ISP infrastructures.

How do I install the NE20E-S8?

Installation involves mounting the unit in a standard rack, connecting the power cords, and setting up the configuration via the console port.

Does the NE20E-S8 require software updates?

Yes, regular software updates are recommended to ensure optimal performance and security.

Are there alternative products to the NE20E-S8?

Alternatives include the Huawei NE40E series, which offers more advanced features for higher performance needs.

Buy & Sell CR2M08BASA02 Huawei NetEngine N20E Router

Name: Huawei NE20E-S8 with 2*MPUE, 2*AC Power (CR2M08BASA02)
SKU: CR2M08BASA02
Rating: 5 (1 reviews)

Home
Routers
Service Provider Edge Routers
Huawei NetEngine20E-S Routers
Huawei NE20E-S8 with 2*MPUE, 2*AC Power (CR2M08BASA02)

Skip to the end of the images gallery

End of Life

Skip to the beginning of the images gallery

Name:	Huawei NE20E-S8 with 2MPUE, 2AC Power (CR2M08BASA02)
Model:	Huawei NetEngine NE20E Series Router CR2M08BASA02
Brand:	Huawei
Detail:	NE20E-S8 AC Basic Configuration Includes NE20E-S 8 Chassis,2MPUE,2AC Power,Power cord,without Software Charge and Document
	Rating: 100% 5/5.0 1 Review 10 Questions
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

Huawei NE20E-S8 with 2MPUE, 2AC Power (CR2M08BASA02)

NE20E-S8 AC Basic Configuration Includes NE20E-S 8 Chassis,2*MPUE,2*AC Power,Power cord,without Software Charge and Document

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

Huawei NE20E-S8 with 2MPUE, 2AC Power (CR2M08BASA02) Overview

The Huawei NE20E-S CR2M08BASA02 router can be flexibly deployed at the access and aggregation layer of IP/MPLS networks and work with other NE routers to provide an all-around network solution for enterprise users, satisfying diversified service requirements in the future. Huawei NetEngine series router CR2M08BASA02 includes following features:

1) 2 MPU slots, 2 NSP slots, 8 PIC slots, 2 AC power supplies

2) 7.94Tbps Switching capacity, 360Mpps forwarding performance

3) Advanced VRP Platform, Huawei-developed Chips, Service on Demand

4) Leading Industrial Design, Energy-conserving

5) Supports various interface types: E1/CE1, POS, CPOS, GE, 10GE, and 40GE

6) Powerful routing capabilities : RIP, OSPF, IS-IS, BGP, IPV6, Multicast

7) Reliability, Flexiblity, Security, Easy to Deploy and Maintain, Innovative IP Hard Pipe Solution

Quick Specs

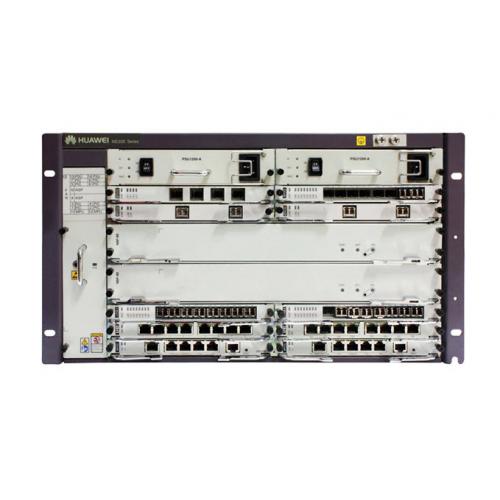

Figure 1 shows the appearance of Huawei Router - CR2M08BASA02.

Table 1 shows the Quick Specs.

Product Code	Huawei Router - CR2M08BASA02
Switching Capacity	480 Gbit/s
Forwarding Performance	360 Mpps
Fixed Ports	none
Number of Slots	2 MPUs 2 NSPs 8 PICs
Power module type	AC?power module
Weight	27.0 kg (AC)
Dimensions (W x D x H)	264 mm x 442 mm x 220 mm (AC, 6U)

The Optical transceiver

Table 2 shows the recommended elements for the Huawei Router - CR2M08BASA02.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)
eSFP-FE-LX-SM1310	eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	eSFP,FE,Single-mode Module(1310nm,40km,LC)
GE-SFP Optical Transceiver
SFP-1000BaseT	SFP,GE,Electrical Interface Module(100m,RJ45)
eSFP-GE-SX-MM850	eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	eSFP,GE,Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	eSFP,GE,Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	eSFP,GE,Single-mode Module(1550nm,40km,LC)

Compare to Similar Items

Table 3?shows the comparison between CR2M08BASA02 and CR2P2EBASA10.?

Model	CR2M08BASA02	CR2P2EBASA10
Switching Capacity	480 Gbit/s	160 Gbit/s
Forwarding Performance	360 Mpps	70 Mpps
Fixed Ports	none	2 x 10 GE (SFP+) and 24 x GE (SFP)
Number of Slots	2 MPUs 2 NSPs 8 PICs	2?PICs
Power module type	AC?power module	AC power module
Weight	27.0 kg (AC)	10.3 kg (AC)
Dimensions (W x D x H)	264 mm x 442 mm x 220 mm (AC, 6U)	89 mm x 442 mm x 220 mm (2U)

Get more information

Do you have any?question?about?the?CR2M08BASA02

Quality Certifications

Specification

Huawei NE20E-S8 with 2MPUE, 2AC Power (CR2M08BASA02) Specification

CR2M08BASA02 Specification
Switching Capacity	480 Gbit/s
Forwarding Performance	360 Mpps
Fixed Ports	--
Number of Slots	2 MPUs 2 NSPs 8 PICs
Dimensions (H x W x D)	10.3 in. x 17.4 in. x 8.6 in. AC = 6U (264 mm x 442 mm x 220 mm AC = 6U)
Power consumption (in full configuration)	703W (AC)
Weight in Full Configuration	59.5 lb (27.0 kg) (AC)
Interface Types	40 GE 10 GE GE/FE OC-3c/STM-1c POS OC-12c/STM-4c POS Channelized OC-3/STM-1 POS E1/CE1
Clock Synchronization	Synchronous Ethernet and IEEE 1588v2
Layer 2 Features	IEEE 802.1q IEEE 802.1p IEEE 802.3ad IEEE 802.1ab STP/RSTP/MSTP
IPv4/IPv6 Routing Protocols	IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP IPv4/IPv6 dual stack IPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PE IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing
L2/L3 VPN	LDP over TE, VPLS, H-VPLS, and VPN policy-based routing Martini MPLS L2VPN VLL/VPLS accessing L3VPN MPLS/BGP L3VPN and inter-AS VPN
Multicast	IGMPv1/v2/v3 IGMP snooping IPv6 multicast Static multicast routing PIM-SM PIM-SSM MBGP NG MVPN
QoS	WRED Five-level HQoS VLL/PWE3 QoS
Reliability	NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRP GR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIM BFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6 Fast convergence of BGP/IGP/multicast routes IP/LDP FRR, TE FRR, VPN FRR, and VLL FRR Ethernet OAM, Y.1731, and PWE3 E2E protection ISSU and in-service patching for smooth software upgrades
Security	ACL-based packet filtering AAA SNMPv3 encryption and authentication URPF, GTSM, DHCP snooping ARP attack defense SSHv2
Value-added Services	NAT, IPSec, GRE, and NetStream
OAM	Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah
Operating Temperature	-40°F to 149°F (-40°C to 65°C)
Operating Relative Humidity	5% to 85%, non-condensing
Operating Altitude	≤ 9,842.5 ft. (3,000m)

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are common troubleshooting tips for the NE20E-S8?

Ensure that power supplies are connected, check for firmware updates, and verify the configuration settings for network issues.

What accessories are available for the NE20E-S8?

Accessories include additional power cords, rack mounting kits, and various network modules for expanded capabilities.

How does the NE20E-S8 compare to similar products?

The NE20E-S8 offers a balance of performance and cost-effectiveness, making it a strong competitor against similar products in its category.

Is the Huawei NE20E-S8 scalable for future needs?

Yes, the NE20E-S8 is designed to be scalable, allowing for additional modules and upgrades to meet future network demands.
