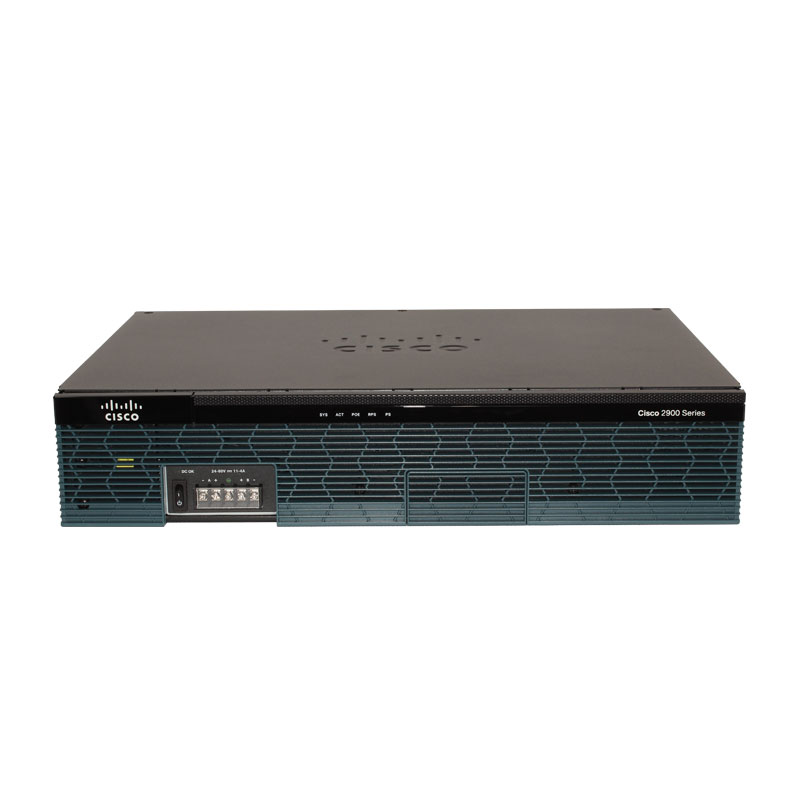

CISCO2911-DC/K9, Cisco 2911 Router, 3xGE/4xEHWIC/512MB DRAM

Can the PVDM2 and PVDM3 DSP modules coexist on the Cisco 2900 Series routers?

Yes, they can coexist as long as they are not both installed in the same domain. The motherboard PVDM slots form one domain and each service-module slot forms a separate domain. The motherboard domain can contain either all PVDM2 modules or all PVDM3 modules. A service-module domain can contain only PVDM2 modules housed by the NM-HDV2 carrier card. If a mix of PVDM2s and PVDM3s is detected on the motherboard, the PVDM2s are deactivated, allowing only the PVDM3s to be active. If PVDM2s are detected in service-module slots and PVDM3s are installed on the motherboard, then both continue to function in their own domain and coexist.

Do the Cisco 2900 Series platforms have dedicated EVM slots similar to those on the Cisco 2800 Series?

No, the Cisco 2900 Series platforms do not have dedicated EVM slots, but they do support the EVM card in their service-module slots (unlike the Cisco 2800 platforms) with the network module-to-service module adapter (NM-SM-ADAPTR).

Can I reuse my TDM gateway interfaces on the Cisco 2900 Series platforms?

For the motherboard PVDM slots, the PVDM3 DSP modules offer the best DSP density - and these modules do not require adapter cards. For service-module slots, order the NM-HDV2, along with the network module-to-service module adapter (SM-NM-ADPTR), and PVDM2 DSPs.

What is an enhanced high-speed WAN interface card (EHWIC)?

The EHWIC is an updated and enhanced version of the HWIC already available with existing integrated services routers. It offers greater speeds and higher port density than the current HWIC. EHWIC slots can support modules that provide both product-based Cisco Inline Power and PoE. EHWICs are available in two form factors: a singlewide form factor that takes up 1 slot and a doublewide form factor that takes up 2 slots. Note: You can combine two EHWIC slots into one bigger slot (EHWIC-D) by removing the center rail between two individual slots. The EHWIC slot is also backward-compatible with existing HWICs, voice interface cards (VICs), and WICs.

What is the SRST?

Cisco Unified Survivable Remote Site TelephonySRST is a feature of Cisco IOS software that allows the IP phones at the remote site cannot contactthe central call manager can still supportbasic traffic handling capacity

Can I must purchase the PVDM to get the voice function?

Yes. Cisco 2900 series need to installed PVDM and related license to get the voice function.

Does it support Multigigabit fabric?

Yes, multigigabit fabric is supported in all Cisco 2900 series routers.

Does CISCO2911-DC/K9 support USB console?

Yes, all Cisco 2900 series model support USB console.

Does CISCO2911-DC/K9 have integrated SFP slots?

No, Cisco 2901 and 2911 do not have integrated SFP slots. But 2921 and 2951 have one.

Does it support multicore processor?

Yes, all Cisco 2900 series model support multicore processor.

How cost-effective is the CISCO2911-DC/K9?

The CISCO2911-DC/K9 offers robust performance and versatility with 3 GE ports, scalability, and a DC power supply, making it highly cost-effective for medium-sized enterprises.

What are the key features of the CISCO2911-DC/K9?

The CISCO2911-DC/K9 includes 3 GE, 4 EHWIC, 2 DSP slots, 1 Service Module, 256MB CF, 512MB DRAM, and a DC power supply for reliable performance.

What are typical application scenarios for CISCO2911-DC/K9?

The CISCO2911-DC/K9 is ideal for enterprises needing robust security, unified communications, and scalable infrastructure in branch offices.

How do I install the CISCO2911-DC/K9?

Install the CISCO2911-DC/K9 by following the provided Cisco installation guide, ensuring all connections and configurations are correctly set.

Does the CISCO2911-DC/K9 require upgrades?

The CISCO2911-DC/K9 may require periodic IOS upgrades to enhance security and performance. Check Cisco's official website for updates.

Are there alternative products to CISCO2911-DC/K9?

Yes, alternatives include other Cisco 2900 Series routers like the CISCO 2901 and 2921, offering different port configurations and features.

What accessories are available for the CISCO2911-DC/K9?

Available accessories for the CISCO2911-DC/K9 include interface cards, memory modules, and power supply units.

How does CISCO2911-DC/K9 compare to similar routers?

The CISCO2911-DC/K9 offers excellent scalability and a DC power supply, making it more suitable for specific enterprise environments compared to similar routers.

How do I troubleshoot common issues with the CISCO2911-DC/K9?

Refer to the Cisco troubleshooting guide or use the Cisco CLI for diagnostic commands to address common issues with the CISCO2911-DC/K9.

What are the memory specifications of the CISCO2911-DC/K9?

The CISCO2911-DC/K9 comes with 256MB Compact Flash and 512MB DRAM, providing substantial memory for enterprise applications.

How cost-effective is the CISCO2911-DC/K9?

The CISCO2911-DC/K9 offers great value with features like 3 GE ports, 4 EHWIC slots, and a DC-power supply, ideal for small to medium businesses.

What are the key characteristics of the CISCO2911-DC/K9?

This Cisco 2911 router features 3 GE ports, 4 EHWIC slots, 2 DSP slots, and a DC-power supply, making it robust for various network demands.

What application scenarios are suitable for the CISCO2911-DC/K9?

The CISCO2911-DC/K9 is ideal for small businesses, branch offices, and enterprise networks needing reliable, versatile routing solutions.

How do I install the CISCO2911-DC/K9 router?

Installation involves mounting, connecting to the power supply, configuring through the Cisco IOS, and connecting it to the network for immediate use.

Does the CISCO2911-DC/K9 require upgrades?

Regular firmware updates are recommended to ensure security and performance. Check Cisco's website for the latest updates.

Are there alternative products to the CISCO2911-DC/K9?

Alternatives include other models in the Cisco 2900 series like the Cisco 2921 and Cisco 2951 routers.

What common troubleshooting steps exist for the CISCO2911-DC/K9?

Common troubleshooting steps include checking connections, verifying configurations, and rebooting the router. Use Cisco's support for advanced issues.

What accessories are available for the CISCO2911-DC/K9?

Accessories include additional EHWIC modules, DSP cards, and memory upgrades to optimize performance.

How does the CISCO2911-DC/K9 compare to other Cisco 2900 ISR routers?

The CISCO2911-DC/K9 provides a balance of performance and cost, suitable for various network environments compared to higher-end models like the Cisco 2951.

What is the benefit of the DC-power supply in the CISCO2911-DC/K9?

The DC-power supply ensures stable power delivery and is ideal for environments with available DC infrastructure, adding reliability to operations.
