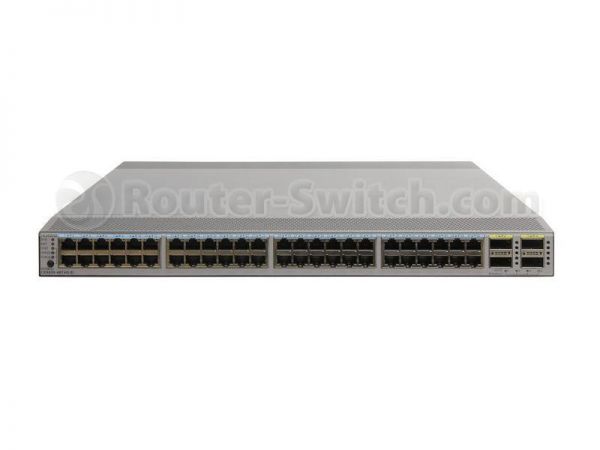

main product photo
Name:

CE6850-EI-B-B00

Model:CE6850-EI-B-B00 Huawei CE6800 Series Data Center Switch
Brand: Huawei
Detail:
CE6850-48T4Q-EI Switch (2*AC Power Module,2*FAN Box,Port-side Intake)
Rating:
100%
5/5.0
1 Review
Price:US$10,671.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

CE6810-EI-B00

CE6810-EI-B00

Rating:
90%
4.5/5.0
2 Reviews
US$6,829.00
CE6810-48S4Q-EI

CE6810-48S4Q-EI

Rating:
87%
4.4/5.0
3 Reviews
US$5,888.00
CE6850-48S4Q-EI

CE6850-48S4Q-EI

Rating:
82%
4.1/5.0
12 Reviews
US$3,589.00
CE6850-EI-B-B0A

CE6850-EI-B-B0A

Rating:
100%
5/5.0
3 Reviews
US$10,671.00
CE6810-48S-LI-B

CE6810-48S-LI-B

Rating:
100%
5/5.0
3 Reviews
US$5,027.00
CE6810-LI-B10

CE6810-LI-B10

Rating:
93%
4.7/5.0
3 Reviews
US$7,598.00
CE6810-LI-B01

CE6810-LI-B01

Rating:
100%
5/5.0
2 Reviews
US$4,609.00
CE6810-LI-F-B00

CE6810-LI-F-B00

Rating:
100%
5/5.0
2 Reviews
US$5,918.00
CE6851-HI-F-B0A

CE6851-HI-F-B0A

Rating:
100%
5/5.0
2 Reviews
US$3,778.00
CE6850-48S4Q-EI-B

CE6850-48S4Q-EI-B

Rating:
90%
4.5/5.0
2 Reviews
US$10,243.00
CE6850U-HI-B-B0A

CE6850U-HI-B-B0A

Rating:
90%
4.5/5.0
2 Reviews
US$12,139.00
CE6850U-HI-F-B0A

CE6850U-HI-F-B0A

Rating:
90%
4.5/5.0
2 Reviews
US$12,139.00

CE6850-EI-B-B00

CE6850-48T4Q-EI Switch (2*AC Power Module,2*FAN Box,Port-side Intake)

Price: US$10,671.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

CE6850-EI-B-B00 Overview

CE6850-EI-B-B00 is CE6850-48T4Q-EI Switch 2*AC Power Module,2*FAN Box,Port-side Intake.

Quick Specs

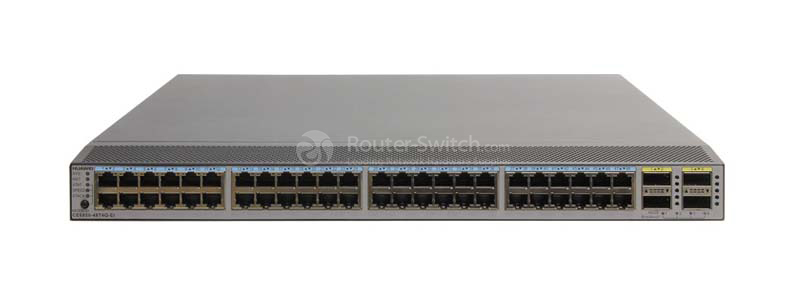

Figure 1 shows the appearance of CE6850-EI-B-B00.

CE6850-EI-B-B00 Appearance

Table 1 shows the Quick Specs.

Product Code

CE6850-EI-B-B00

Part Number

02350EXT

10G Base-T Ports

48

SFP+ Ports

0

FC Ports

0

QSFP+ Ports

4

Switching Capacity

1.28 Tbit/s

Forwarding Rate

960 Mpps

Airflow Design

Front-to-back or back-to-front

Power Supply

350W AC,600W AC

Maximum power consumption

380 W

Typical power consumption

305 W?

Dimensions (W x D x H)

442 mm x 600 mm x 43.6 mm

Weight (fully loaded)

11.4 kg (25.1 lb)

Product Details

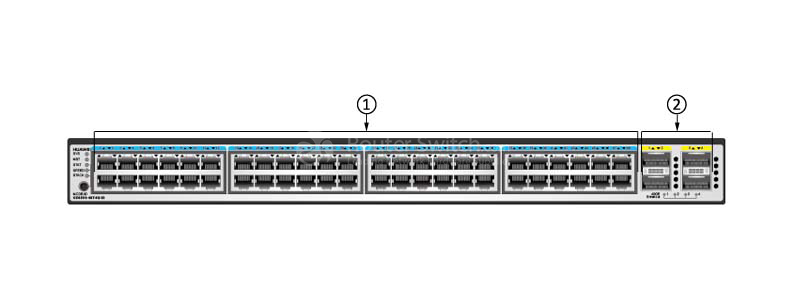

Figure 2 shows the rear (port side) panel of CE6850-EI-B-B00.

the rear (port side) panel of CE6850-EI-B-B00

Note:

①

Forty-eight 10GBASE-T Ethernet electrical ports

②

Four 40GE QSFP+ Ethernet optical ports

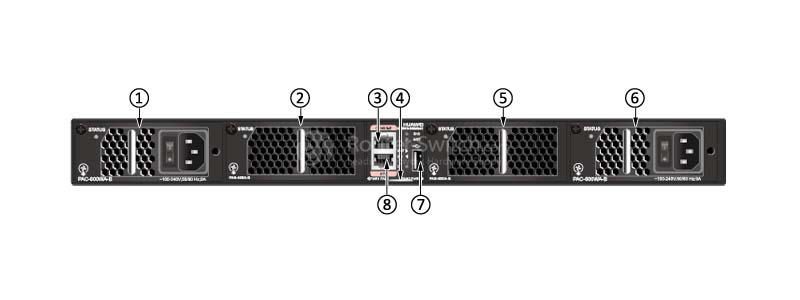

Figure 3 shows the front (power supply side) panel of CE6850-EI-B-B00.

the front (power supply side) panel of CE6850-EI-B-B00

Note:

①

Power supply slot 1

②

Fan slot 1

③

Console port

④

Bar code label

⑤

Fan slot 2

⑥

Power supply slot 2

⑦

USB port

⑧

ETH management port

The Modules

Table 2 shows the recommended elements for the CE6850-EI-B-B00.

Model

Description

40GE QSFP+ optical transceiver

QSFP-40G-iSR4

40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)

QSFP-40G-LR4

40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC)

FAN-40EA

FAN-40EA-F

Fan box(EA,Front to Back,FAN panel side intake)

FAN-40EA-B

Fan box(EA,Back to Front,FAN panel side exhaust)

Compare to Similar Items

Table 3 shows the comparison of CE6850-EI-B-B00 and CE6850-48S4Q-EI.

Product Code

CE6850-EI-B-B00

CE6850-48S4Q-EI

10G Base-T Ports

48

0

SFP+ Ports

0

48

FC Ports

0

0

QSFP+ Ports

4

4

Switching Capacity

1.28 Tbit/s

1.28 Tbit/s

Forwarding Rate

960 Mpps

960 Mpps

Airflow Design

Front-to-back or back-to-front

Front-to-back or back-to-front

Power Supply

350W AC,600W AC

350WDC,350WAC

Maximum power consumption

380 W

272 W

Typical power consumption

305 W?

180 W

Get more information

Do you have any?question about?the?CE6850-EI-B-B00

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

CE6850-EI-B-B00 Specification

CE6850-EI-B-B00 Specifications

10G Base-T Ports

48

SFP+ Ports

0

FC Ports

0

QSFP+ Ports

4

Switching Capacity

1.28 Tbit/s

Forwarding Rate

960 Mpps

Airflow Design

Front-to-back or back-to-front

Device Virtualization

iStack

Super Virtual Fabric (SVF)

Network Virtualization

M-LAG

TRILL

VM Awareness

Agile Controller

Network Convergence

FCoE

DCBX, PFC, and ETS

Programmability

OpenFlow

OPS

Puppet, and OVSDB plugins released on open source websites

Linux container for open source and customization programming

Traffic Analysis

NetStream

sFlow

VLAN

Adding access, trunk, and hybrid interfaces to VLANs

Default VLAN

QinQ

MUX VLAN

GVRP

ACL

Ingress: 2,250 Egress: 1,000

MAC Address Table

Maximum: 128k

Dynamic learning and aging of MAC addresses

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address limiting based on ports and VLANs

ARP (maximum)

16k

IPv4 FIB (maximum)

16k

IP Routing

IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS

IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+

IPv6 FIB (maximum)

8k

IPv6

IPv6 Neighbor Discovery (ND)

Path MTU Discovery (PMTU)

TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6

Multicast FIB (maximum)

4k

Multicast

IGMP, PIM-SM, PIM-DM, MSDP, and MBGP

IGMP snooping

IGMP proxy

Fast leave of multicast member interfaces

Multicast traffic suppression

Multicast VLAN

MPLS

MPLS (CE6800HI)

Reliability

LACP

STP, RSTP, VBST, and MSTP

BPDU protection, root protection, and loop protection

Smart Link and multi-instance

DLDP

ERPS (G.8032)

VRRP, VRRP load balancing, and BFD for VRRP

BFD for BGP/IS-IS/OSPF/Static route

QoS

Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority

Actions of ACL, CAR, re-marking, and scheduling

Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR

Congestion avoidance mechanisms, including WRED and tail drop

Traffic shaping

Configuration and Maintenance

Console, Telnet, and SSH terminals

Network management protocols, such as SNMPv1/v2c/v3

File upload and download through FTP and TFTP

BootROM upgrade and remote upgrade

802.3az Energy Efficient Ethernet (EEE)

Hot patches

User operation logs

ZTP

Security and Management

802.1x authentication

Command line authority control based on user levels, preventing unauthorized users from using commands

DoS, ARP, and ICMP attack defenses

Port isolation, port security, and sticky MAC

Binding of the IP address, MAC address, interface number, and VLAN ID

Authentication methods, including AAA, RADIUS, and HWTACACS

Remote Network Monitoring (RMON)

Dimensions (W x D x H)

442 mm x 600 mm x 43.6 mm

Weight (fully loaded)

11.4 kg (25.1 lb)

Environmental Parameters

Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Relative humidity: 5% RH to 95% RH, non-condensing

Operating Voltage

AC: 90V to 290V

Max. Power Consumption

380W



Quality Certifications

Q&A

Questions & Answers

What are common troubleshooting steps for the CE6850-48T4Q-EI Switch?

Common steps include checking cable connections, rebooting the switch, and ensuring firmware is up-to-date. Refer to the user manual for detailed troubleshooting.

What accessories are available for the CE6850-48T4Q-EI Switch?

Accessories include additional power modules, fan boxes, and network cables for enhanced performance and redundancy.

How does the CE6850-48T4Q-EI Switch compare with similar products?

The CE6850-48T4Q-EI provides superior performance and scalability compared to many competitors, with a focus on energy efficiency and advanced features.

Is the CE6850-48T4Q-EI Switch suitable for future expansion?

Yes, the switch supports ample ports and redundancy options, making it suitable for future network expansion needs.
