main product photo

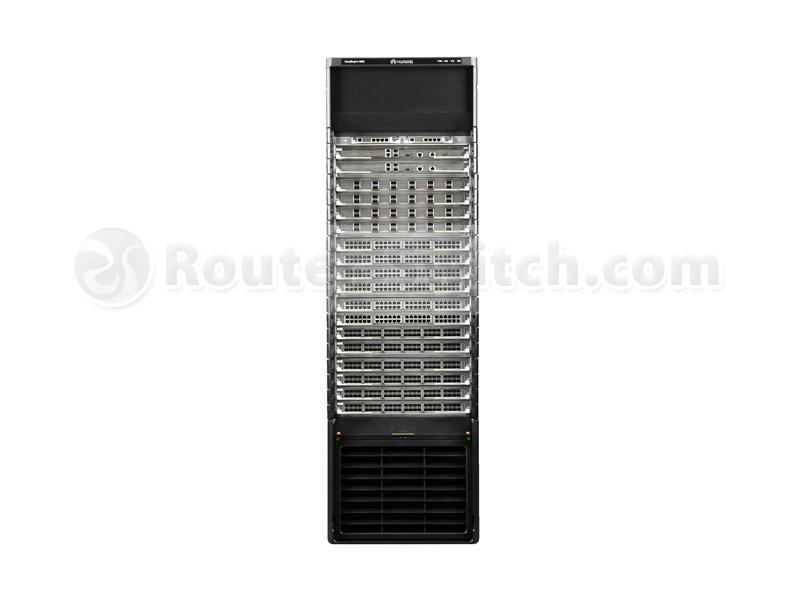

CE12816A-B09, Huawei CE12800 Switch, AC Assembly Chassis/2xMPUA/3xSFU16B

  • Brand: Huawei
  • Model: CE12816A-B09
Rating:
91%
4.6/5.0
7 Reviews
$61,457.00
Price Alert ×
CE12816A-B09, Huawei CE12800 Switch, AC Assembly Chassis/2xMPUA/3xSFU16B
CE12816A-B09, Huawei CE12800 Switch, AC Assembly Chassis/2xMPUA/3xSFU16B US$61,457.00
If you see a better price elsewhere, please let us know and we will work hard to find the product at the better price. We will notify you if the price drops.
Please enter a valid email address.
Please enter your name.
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    23 Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    Express Shipping to United States Get Shipping Estimate
    Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    CE12816A-B09, Huawei CE12800 Switch, AC Assembly Chassis/2xMPUA/3xSFU16B

    CE12816A-B09, Huawei CE12800 Switch, AC Assembly Chassis/2xMPUA/3xSFU16B

    100% Genuine Ready to Ship
    $61,457.00
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Download
    Overview

    Huawei CE12816A-B09 Overview

    The Huawei CE12816A-B09 is a flagship data center core switch designed for large-scale enterprise and cloud networks. With a switching capacity up to 1,032 Tbit/s and a forwarding rate of 69,120 Mpps, this chassis delivers massive throughput for spine and aggregation layers. Six fabric module slots and 16 service slots leverage a Clos architecture with VoQ and large distributed buffers for low-latency, non-blocking performance. Advanced virtualization with Virtual System (VS) and M-LAG enables resilient multi-tenant fabrics, while FCoE, BGP-EVPN, IPv6 over VXLAN, and NetStream provide converged storage networking, scalable DCI, and deep traffic visibility.

    Product Highlights

    1,032 Tbit/s
    Core Fabric
    69,120 Mpps
    Wire-Speed
    16 Slots
    High-Density

    Product Components Breakdown

    Front Panel of the Product:

    CE12816A-B09 front Panel
    ①
    CE12800 series switches chassis header, showing the following: Product series name: ● For the CE12816 chassis, the series name is CloudEngine 12800. ● Huawei Logo ● PWR, FAN, SFU, and MPU indicators
    ②
    Two CMUs
    ③
    Cable management frame
    ④
    Front ESD jack
    ⑤
    Power modules
    ⑥
    Indicators
    ⑦
    Two MPUs
    ⑧
    LPU
    ⑨
    Air intake area for SFUs in the CE12816 chassis
    ⑩
    Two power switches

    Rear Panel of the Product:

    CE12816A-B09 Back Panel
    ①
    Serial number label
    ②
    Rear ESD jack
    ③
    Handle
    ④
    Power distribution unit
    ⑤
    MAC address label
    ⑥
    Fan modules
    ⑦
    SFU
    ⑧
    Two ground points for a dual-hole ground lug, with a yellow grounding label attached

    Product Applications Scenarios

    Data Center
    Clos fabric, massive 1,032 Tbit/s capacity and VXLAN/EVPN simplify core spine design, reducing oversubscription and improving east-west throughput.
    Cloud Services
    VS and M-LAG enable multi-tenant segmentation and highly available fabrics, cutting service downtime and easing elastic cloud scaling.
    Service Providers
    BGP, MPLS and FCoE support converged IP and storage transport, simplifying backbone design and lowering TCO in carrier core networks.

    Product Features Comparison

      Huawei CE12816A-B09, Huawei CE12800 Switch, AC Assembly Chassis/2×MPUA/3×SFU16B Huawei CE12816A-B00, Huawei CE12800 Switch, AC Assembly Chassis/2×MPUA/3×SFU16A Huawei CE12812A-B09, Huawei CE12800 Switch, AC Assembly/2×MPUA/3×SFU12B Huawei CE12808A-B09, Huawei CE12800 Switch, AC Assembly Chassis/2×MPUA/3×SFU08B

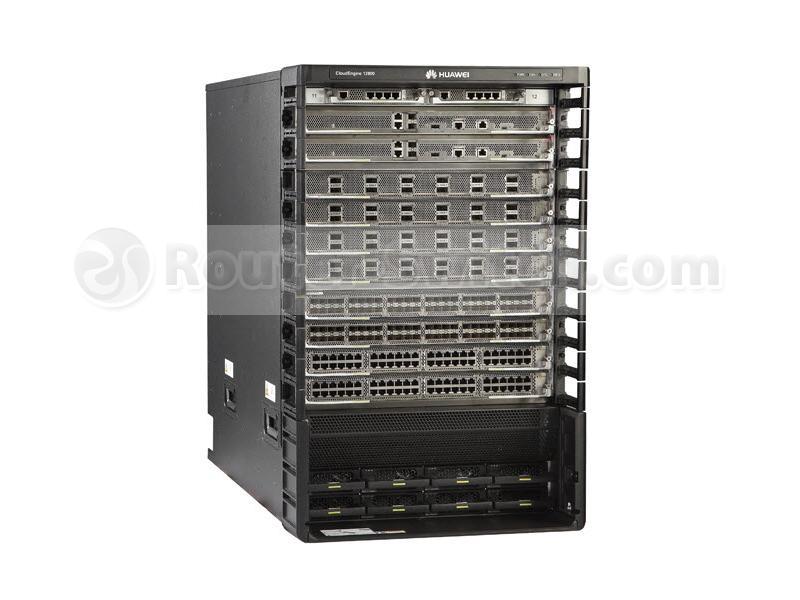

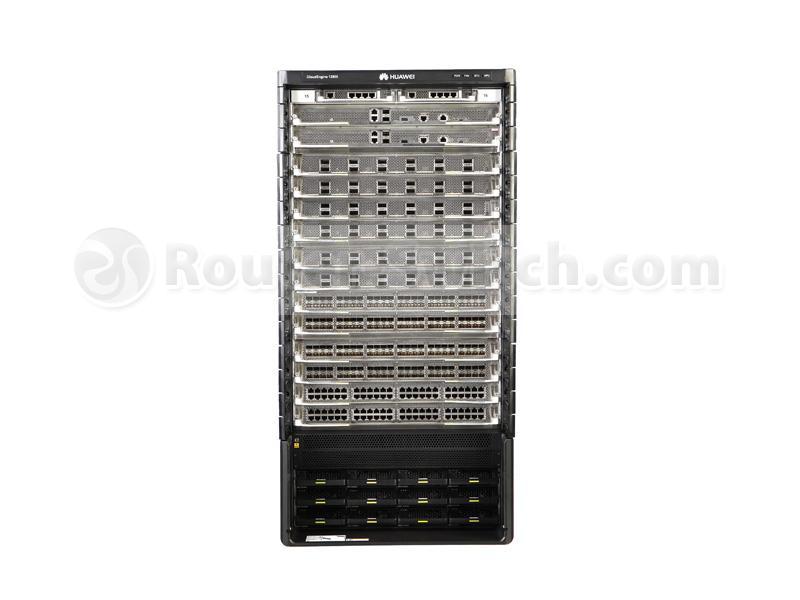

    Model CE12816A-B09 CE12816A-B00 CE12812A-B09 CE12808A-B09
    Brand Huawei Huawei Huawei Huawei
    Port Configuration n/a n/a n/a n/a
    Switching Capacity 178/ 1,032 Tbit/s 178/ 1,032 Tbit/s 134/ 774 Tbit/s 89/ 516 Tbit/s
    Forwarding Rate 69,120 Mpps 69,120 Mpps 51,840 Mpps 34,560 Mpps
    PoE Budget n/a n/a n/a n/a
    Stacking Capability n/a n/a n/a n/a

    Optional Add-ons

    Model Number Description
    SFU16B Huawei CE12800 16-slot switching fabric unit for scalable Clos core expansion
    MPUA Huawei CE12800 main processing unit providing control plane and management
    PHD-3000WA Huawei 3,000W AC power module for CE12800 chassis with front-to-back airflow

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei CE12816A-B09 Specification

    Model
    CE12816A-B09
    Brand
    Huawei
    Switching Capacity (Tbit/s)
    178/ 1,032
    Forwarding Rate (Mpps)
    69,120
    Service Slots
    16
    Switching Fabric Module Slots
    6
    Fabric Architecture
    Clos architecture, cell switching, VoQ, and distributed large buffer
    Airflow Design
    Strict front-to-back
    Device Virtualization
    Virtual System (VS)
    Network Virtualization
    M-LAG
    VM Awareness
    Agile Controller
    Network Convergence
    FCoE
    Data Center Interconnect
    BGP-EVPN
    Programmability
    OpenFlow
    Traffic Analysis
    NetStream
    VLAN
    Adding access, trunk, and hybrid interfaces to VLANs
    MAC Address
    Dynamic learning and aging of MAC addresses
    IP Routing
    IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP
    IPv6
    IPv6 over VXLAN
    Multicast
    IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
    MPLS
    Basic MPLS functions
    Reliability
    Link Aggregation Control Protocol (LACP)
    QoS
    Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information
    O&M
    IEEE 1588v2
    Configuration and Maintenance
    Console, Telnet, and SSH terminals
    Security and Management
    802.1x authentication
    Dimensions (W x D x H, mm)
    442 x 905 x 1,597.4 (36 U)
    Operating Voltage
    AC: 90V to 290V DC: -38.4V to -72V HVDC: 240V
    Max. Power Supply
    30,000W
    Weight
    480.1 kg

    Get more information

    Discover unbeatable prices and fast shipping for the CE12816A-B09, Huawei CE12800 Switch, AC Assembly Chassis/2×MPUA/3×SFU16B . Access the detailed CE12816A-B09, Huawei CE12800 Switch, AC Assembly Chassis/2×MPUA/3×SFU16B datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    What accessories are available for the CE12816A-B09?

    Available accessories include additional network interface cards and redundant power supplies.

    How does the CE12816A-B09 compare to similar products?

    The CE12816A-B09 offers superior performance and scalability compared to competitors.

    What should I do if the CE12816A-B09 encounters a problem?

    Refer to the troubleshooting guide or contact Huawei support for assistance.

    Is router-switch.com a reliable distributor?

    Absolutely. As a multi-brand authorized distributor, router-switch.com is directly certified by leading technology manufacturers. We guarantee 100% genuine products, competitive pricing, and full manufacturer warranties and support.
