Name:	CE12804D-B01
Model:	CE12804D-B01 Huawei CE12800 Series Data Center Switch
Brand:	Huawei
Detail:	CE12804 DC Bundle1 (DC Assembly Chassis,2MPUA,5SFU04A,3*PDC-2200WA)
	Rating: 96% 4.8/5.0 5 Reviews 10 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$32,625.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

CE12804D-B01

CE12804 DC Bundle1 (DC Assembly Chassis,2*MPUA,5*SFU04A,3*PDC-2200WA)

Price: US$32,625.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

CE12804D-B01 Overview

CE12804D-B01 is CE12804 DC Bundle1 DC Assembly Chassis, 2*MPUA, 5*SFU04A, 3*PDC-2200WA.

Quick Specs

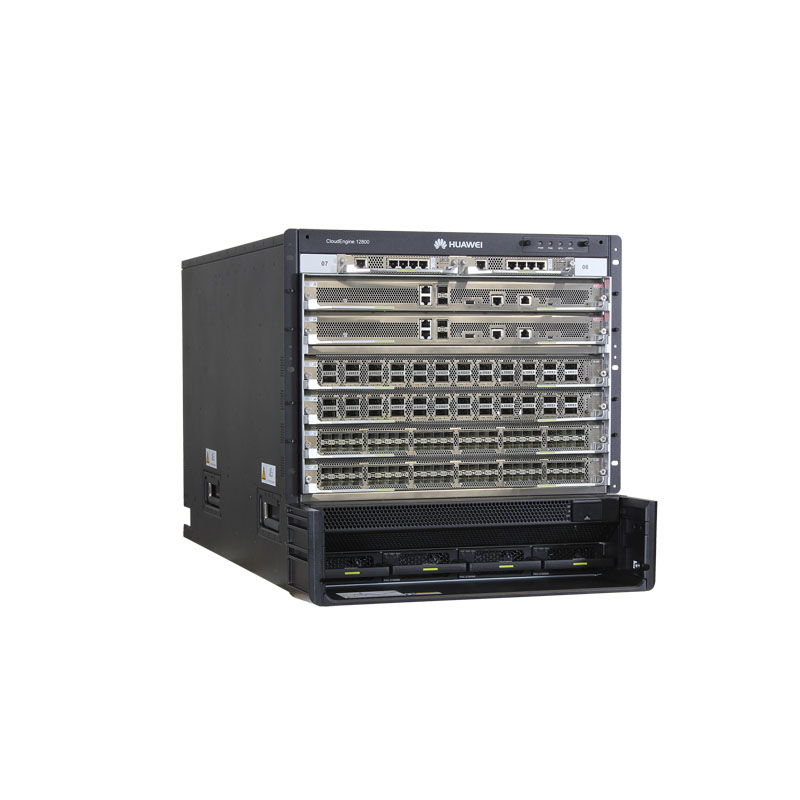

Figure 1 shows the appearance of CE12804 DC chassis. CE12804D-B01 is it’s assembly chassis.

Table 1 shows the Quick Specs.

Product Code	CE12804D-B01
Switching Capacity? (Tbit/s)	45/ 258
Forwarding Rate? (Mpps)	17,280
Service Slots	4
Switching Fabric? Module Slots	6
LPU slots	4 (slot IDs: 01 to 04)
MPU slots	2 (slot IDs: 05 to 06)
CMU slots	2 (slot IDs: 07 to 08)
SFU slots	6 (slot IDs: 09 to 14)
Power slots	4 (slot IDs: PM1 to PM4)
Fan slots	9 (slot IDs: FAN1 to FAN9)

Product Details

Figure 2 shows the front panel of CE12804D-B01.

Note:

①

Two CMUs

②

Cable management frame

NOTE:

Cable management frames are installed on the left and right sides of a chassis to route cables in each slot.

③

Front ESD jack

NOTE:

When maintaining components at the front of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

④

Power modules

⑤

Two MPUs

The CE12804 chassis uses the CE-MPUA.

⑥

LPUs

CE12804 chassis: supports 4 LPUs.

* CE12804D-B01 has only DC Assembly Chassis, 2*MPUA, 5*SFU04A and 3*PDC-2200WA, if you need other modules or cards, you must be purchased separately.

Figure 3 shows the back panel of CE12804D-BD1.

①	Serial number label	②	Rear ESD jack ?
③	?Handle	④	Power distribution unit
⑤	MAC address label	⑥	Fan modules
⑦	SFU	⑧	Two ground points for a dual-hole ground lug, with a yellow grounding label attached

* CE12804D-B01 has only DC Assembly Chassis, 2*MPUA, 5*SFU04A and 3*PDC-2200WA, if you need other modules or cards, you must be purchased separately.

The Modules, Cards

Table 2 shows the recommended elements for the CE12804D-B01.

Model	Description
AC power module
PAC-2700WA	2700W AC Power Supply
FE-SFP optical transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP optical transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ optical transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
40GE CFP optical transceiver
CFP-40G-LR4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC)
CFP-40G-ER4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC)
40GE QSFP+ optical transceiver
QSFP-40G-eSR4	40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-ER4	40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC)
100GE CFP optical transceiver
CFP-100G-SR10	High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO)
CFP-100G-LR4	CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC)
CFP-100G-ER4	High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC)
GE copper transceiver
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
100GE interface card
CE-L12CF-EG	12-Port-100GE Interface Card(EG,CFP2)
CE-L08CC-EC	8-Port-100G Interface Card(EC,CXP)
10GE interface card
CE-L48XT-EC	Huawei 48-port 100M/1000M/10G Base-T Interface Card(EC,RJ45) CE-L48XT-EC
CE-L48XS-EC	48-Port-10GE Interface Card(EC,SFP+)
40GE interface card
CE-L24LQ-EC1	24-Port-40G Interface Card(EC1,QSFP+)
CE-L12LQ-EF	12-Port-40G Interface Card(EF,QSFP+)
Firewall module
CE-FWA	Huawei CE12800 NGFW Module A CE-FWA, with HW General Security Platform Software
GE interface card
CE-L48GT-ED	48-Port 10/100/1000BASE-T Interface Card(ED,RJ45)
CE-L48GS-ED	48-Port 100/1000BASE-X Interface Card(ED,SFP)

Compare to Similar Items

Table 3 shows the comparison of CE12804D-B01 and CE12804S-DC.

Product Code	CE12804D-B01	CE12804S-DC
Switching Capacity? (Tbit/s)	45/ 258	45/ 258
Forwarding Rate? (Mpps)	17,280	17,280
Service Slots	4	4
Switching Fabric? Module Slots	6	2
LPU slots	4 (slot IDs: 01 to 04)	4 (slot IDs: 01 to 04)
MPU slots	2 (slot IDs: 05 to 06)	2 (slot IDs: 05 to 06)
CMU slots	2 (slot IDs: 07 to 08)	None (monitoring function integrated on the MPU)
SFU slots	6 (slot IDs: 09 to 14)	2 (slot IDs: 07 to 08)
Power slots	4 (slot IDs: PM1 to PM4)	4 (slot IDs: PM1 to PM4)
Fan slots	9 (slot IDs: FAN1 to FAN9)	3 (slot IDs: FAN1 to FAN3)

Get more information

Do you have any?question about?the?CE12804D-B01

Quality Certifications

Specification

CE12804D-B01 Specification

CE12804D-B01 Specifications
Switching Capacity (Tbit/s)	45/ 2581
Forwarding Rate (Mpps)	17,280
Service Slots	4
Switching Fabric Module Slots	6
Fabric Architecture	Clos architecture, cell switching, VoQ, and distributed large buffer
Airflow Design	Strict front-to-back
Device Virtualization	Virtual System (VS)
	Cluster Switch System (CSS)2
	Super Virtual Fabric (SVF)3
Network Virtualization	M-LAG
	TRILL
	VxLAN routing and bridging
	EVPN
	QinQ in VXLAN
VM Awareness	Agile Controller
Network Convergence	FCoE
Network Convergence	DCBX, PFC, and ETS
Data Center Interconnect	BGP-EVPN
Data Center Interconnect	Ethernet Virtual Network (EVN) for inter-DC Layer 2 network interconnections
Programmability	OpenFlow
	ENP programming
	OPS programming
	Puppet, Ansible, and OVSDB plug-ins released on open source websites
	Linux container for open source and customization programming
Traffic Analysis	NetStream
Traffic Analysis	Hardware-based sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs
	Default VLAN
	QinQ
	MUX VLAN
	GVRP
MAC Address	Dynamic learning and aging of MAC addresses
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
	MAC address limiting based on ports and VLANs
IP Routing	IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP
	IPv6 routing protocols, such as RIPng, OSPFv3, ISISv6, and BGP4+
	IP packet fragmentation and reassembling
IPv6	IPv6 over VXLAN
	IPv6 over IPv4
	IPv6 Neighbor Discovery (ND)
	Path MTU Discovery (PMTU)
	TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
Multicast	IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
	IGMP snooping
	IGMP proxy
	Fast leave of multicast member interfaces
	Multicast traffic suppression
	Multicast VLAN
MPLS	Basic MPLS functions
MPLS	MPLS VPN/VPLS/VPLS over GRE
Reliability	Link Aggregation Control Protocol (LACP)
	STP, RSTP, VBST, and MSTP
	BPDU protection, root protection, and loop protection
	Smart Link and multi-instance
	Device Link Detection Protocol (DLDP)
	Ethernet Ring Protection Switching (ERPS, G.8032)
	Hardware-based Bi-directional Forwarding Detection (BFD)
	VRRP, VRRP load balancing, and BFD for VRRP
	BFD for BGP/IS-IS/OSPF/Static route
	In-Service Software Upgrade (ISSU)
	Segment Routing (SR)
QoS	Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information
	Actions include ACL, CAR, and re-marking
	Queue scheduling modes such as PQ, WFQ, and PQ + WRR
	Congestion avoidance mechanisms, including WRED and tail drop
	Traffic shaping
O&M	IEEE 1588v2
	Packet Conservation Algorithm for Internet (iPCA)
	Dynamic Load Balancing (DLB)
	Dynamic Packet Prioritization (DPP)
	Network-wide path detection
	Microsecond-level buffer detection
Configuration and Maintenance	Console, Telnet, and SSH terminals
	Network management protocols, such as SNMPv1/v2c/v3
	File upload and download through FTP and TFTP
	BootROM upgrade and remote upgrade
	Hot patches
	User operation logs
	Zero-Touch Provisioning (ZTP)
Security and Management	802.1x authentication
	RADIUS and HWTACACS authentication for login users
	Command line authority control based on user levels, preventing unauthorized users from using commands
	Defense against MAC address attacks, broadcast storms, and heavy-traffic attacks
	Ping and traceroute
	Remote Network Monitoring (RMON)
Dimensions (W x D x H, mm)	442 x 813 x 486.15 (11 U)
Chassis Weight (empty)	< 110 kg (242 lb)
Operating Voltage	AC: 90V to 290V DC: -38.4V to -72V HVDC: 240V
Max. Power Supply	6,000W

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the CE12804D-B01?

Available accessories for the CE12804D-B01 include additional power modules, interface cards, cable management kits, and rack mounting brackets.

How does the CE12804D-B01 compare to similar products?

The CE12804D-B01 stands out for its high-density and high-performance capabilities, comparable to high-end models from Cisco and Juniper but often at a lower cost.

What are common troubleshooting steps for the CE12804D-B01?

Common troubleshooting includes checking connections, ensuring modules are properly seated, confirming power supply functionality, and consulting Huawei's diagnostic tools.

Can the CE12804D-B01 handle future expansion needs?

Yes, the CE12804D-B01 is designed for scalability, allowing for easy addition of new modules and capacity upgrades to meet future requirements.

Learn More

What are the primary characteristics of the CE12804D-B01?

The CE12804D-B01 offers high performance with a DC Assembly Chassis, 2 MPUA modules, 5 SFU04A switches, and 3 PDC-2200WA power modules.

Is the CE12804D-B01 cost-effective for large-scale deployments?

Yes, the CE12804D-B01 provides excellent scalability and reliability, making it a cost-effective solution for large data centers and enterprises.

What application scenarios are ideal for the CE12804D-B01?

The CE12804D-B01 is best suited for high-capacity data centers, enterprise networks, and cloud environments requiring robust performance and scalability.

How do I install the CE12804D-B01?

The CE12804D-B01 installation involves mounting the chassis in a data center rack, installing the MPUA modules, SFU04A switches, and PDC-2200WA power supplies, then connecting to the network.

Does the CE12804D-B01 need regular upgrades?

Regular firmware updates are recommended for the CE12804D-B01 to ensure security and optimal performance. Check Huawei's website for the latest updates.

Are there alternative products to the CE12804D-B01?

Yes, alternatives include other Huawei CloudEngine series models or switches from other manufacturers like Cisco's Nexus series, depending on specific needs.

What accessories are available for the CE12804D-B01?

Available accessories for the CE12804D-B01 include additional power modules, interface cards, cable management kits, and rack mounting brackets.

How does the CE12804D-B01 compare to similar products?

The CE12804D-B01 stands out for its high-density and high-performance capabilities, comparable to high-end models from Cisco and Juniper but often at a lower cost.

What are common troubleshooting steps for the CE12804D-B01?

Common troubleshooting includes checking connections, ensuring modules are properly seated, confirming power supply functionality, and consulting Huawei's diagnostic tools.

Can the CE12804D-B01 handle future expansion needs?

Yes, the CE12804D-B01 is designed for scalability, allowing for easy addition of new modules and capacity upgrades to meet future requirements.

Warranty

Standard Services

Warehouse

Customer Service

Packaging

Branch Offices : Hong Kong | USA | UK

Quality Checking

Shipping

Trusted by over 18,000 customers globally

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only:

Item conditions are all "New Sealed".
All items are fully tested with working conditions by Huawei certified engineer under customers' permission.

100% Money Back Guarantee:

If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support:

Router-switch.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Warranty Policy:

Original New Sealed Enterprise Hardware: 3 Years

Original New Sealed Consumer Devices: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Download

Model Datasheet

CE12804D-B01 Datasheet

CE12804D-B01

You may also be interested in the following product(s)

CE12804D-B01

CE12804D-B01 Overview

Quick Specs

Product Details

The Modules, Cards

Compare to Similar Items

Get more information

Quality Certifications

CE12804D-B01 Specification

CE12804D-B01 Specifications

Quality Certifications

Questions & Answers

What accessories are available for the CE12804D-B01?

How does the CE12804D-B01 compare to similar products?

What are common troubleshooting steps for the CE12804D-B01?

Can the CE12804D-B01 handle future expansion needs?

What are the primary characteristics of the CE12804D-B01?

Is the CE12804D-B01 cost-effective for large-scale deployments?

What application scenarios are ideal for the CE12804D-B01?

How do I install the CE12804D-B01?

Does the CE12804D-B01 need regular upgrades?

Are there alternative products to the CE12804D-B01?

What accessories are available for the CE12804D-B01?

How does the CE12804D-B01 compare to similar products?

What are common troubleshooting steps for the CE12804D-B01?

Can the CE12804D-B01 handle future expansion needs?

Standard Services

Warranty

Product Tags
