CBS350-24P-4G, Cisco Business 350 Switch, 24xPoE+ 195W/4xSFP/1U

What does a Cisco switch do?

Cisco Router and switch, both are the connecting devices in networking. Where a router chooses the smallest path for a packet to reach its destination, a switch stores the arrived packets, process it and forwards it to the specified destination.

How many types of Cisco switches are there?

There are two main categories of switches: modular and fixed configuration.

Is Cisco switch a PoE?

Cisco, the one of the best networking devices manufacturers, provide us many useful PoE switches.

What are the three functions of a Cisco switch?

There are three distinct functions of layer 2 switching (you need to remember these!): address learning, forward/filter decisions, and loop avoidance.

Why did Cisco introduce Cisco ® Business?

The partners and customers who serve and operate small businesses require a complete and reliable network that is simple, flexible, and secure—critical for achieving their business success. Cisco Business meets their needs in this evolving digitized world.

What product lines and solutions are part of Cisco Business?

Cisco Business offers a complete portfolio of switching, routing, and wireless products, all managed via the Cisco Business Dashboard and Cisco Business mobile app, enabling a complete network solution that meets our customers’ needs.

Besides static routing for IPv4 and IPv6, do the Cisco Business Switches 350 Series Managed Switches (CBS350 switches) support OSPF or EIGRP for dynamic routing?

The CBS350 series switches do not support OSPF and EIGRP. However, they support RIP v2 and policybased routing in addition to static routing.

Does the switch support Power over Ethernet?

Power over Ethernet (PoE) simplifies deployments for IP telephony, wireless, surveillance or other connected devices without the need for locating devices near power outlets. Cisco Business Switches support both the 802.3af and 802.3at PoE standards, providing up to 30W per port to high-performance wireless access points, pan-tilt zoom cameras, IP phones, and video endpoints.

Can Cisco Business Switches stack?

Cisco Business 350 Series managed switch models with 10 gigabit uplinks support true stacking up to 4 units.

How can Cisco Business Switches be managed?

For DIY small businesses managing small sites, Cisco Business Switches come with an intuitive web interface supporting configuration wizards, customizable dashboard, and integrated help. Users with both Cisco Business switches and Cisco Business wireless access points can also use Cisco Business mobile app to set up and manage the local network all from their mobile devices. For a larger network self-managed or maintained by managed service providers, Cisco Business Dashboard provides a single pane of glass for all Cisco Business switches, routers, and wireless access points across multiple sites. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks while automating the deployment, monitoring, and lifecycle management of the network. For advanced users, command-line interface and Simple Network Management Protocol (SNMP) are also available.

Do the CBS350 series switches include transceiver modules for SFP+ uplink ports?

No, SFPs are not included for any of the Cisco Business switches.

How can I identify whether a CBS350 managed switch is a fan-less model?

All 8-port and 16-port Gigabit models and selected 24-port Gigabit models are fan-less. 48-port Gigabit models have fans.

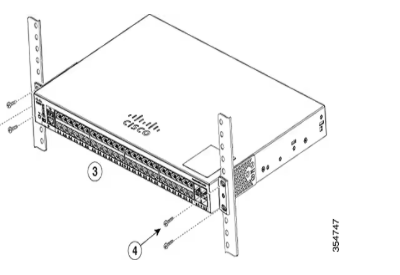

Are the CBS350 series switches shipped with 19-inch rack-mount ears?

Yes, every model in the CBS350 series includes a rack-mount kit (brackets) for a standard 19-inchwide rack- and wall-mount hardware.

Do I need to purchase any license or subscription with the CBS350 switch?

No license or subscription is required for Cisco Business switches. All features and functionalities are available with the hardware purchase.

What is the cbs350 24p 4g?

The cbs350 24p 4g is a network switch designed for small to medium-sized businesses that require advanced features such as PoE, VLAN, and QoS.

How many ports does the cbs350 24p 4g have?

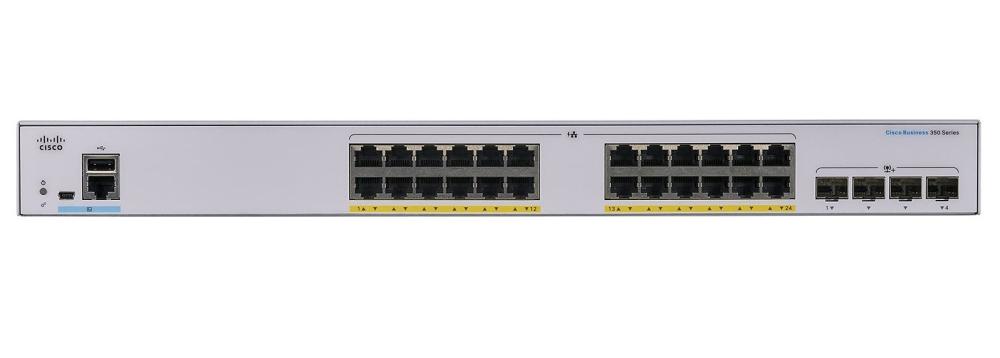

The cbs350 24p 4g has 24 Gigabit Ethernet ports and 4 Gigabit SFP ports. 12 of the Ethernet ports support PoE+ (802.3at) with a total PoE budget of up to 195W.

What is PoE?

PoE stands for Power over Ethernet. It is a technology that allows you to power network devices such as IP phones, wireless access points, and security cameras over the Ethernet cable, eliminating the need for a separate power source.

What is VLAN?

VLAN stands for Virtual Local Area Network. It is a technology that allows you to create separate networks within a physical network, which can improve network security, performance, and management.

What is QoS?

QoS stands for Quality of Service. It is a set of technologies that allows you to prioritize certain types of network traffic over others, which can improve network performance and reduce congestion.

Does the cbs350 24p 4g support link aggregation?

Yes, the cbs350 24p 4g supports link aggregation, which allows you to combine multiple Ethernet links into a single logical link, which can improve network performance and provide redundancy.

What is Router-switch?

Router-switch is a company that sells networking equipment such as routers, switches, firewalls, and other related products.

What brands does Router-switch carry?

Router-switch carries a variety of networking equipment brands such as Cisco, Huawei, Juniper, HP, Dell, and more.

Does Router-switch ship internationally?

Yes, Router-switch ships their products internationally. However, customers may need to pay additional customs and taxes depending on their country's regulations.

Does Router-switch offer discounts or promotions?

Yes, Router-switch often offers discounts and promotions on their products. Customers can check their website or subscribe to their newsletter to stay updated on current offers.

What is PoE support in Cisco switches?

PoE (Power over Ethernet) allows Cisco switches to supply power to PoE-enabled devices, such as IP phones, wireless access points, and security cameras, over the Ethernet cables, eliminating the need for separate power sources.

What are the key features of Cisco switches?

Cisco switches offer various features, including port density, PoE (Power over Ethernet) support, VLAN (Virtual LAN) capabilities, advanced security mechanisms, QoS (Quality of Service) support, and high-speed uplink options.

How do VLANs work in Cisco switches?

VLANs in Cisco switches divide a physical LAN into multiple virtual LANs, isolating traffic and improving network security and performance by reducing broadcast domains.

What is the Cisco IOS operating system used in switches?

The Cisco IOS (Internetwork Operating System) is a robust operating system used in Cisco switches, providing a command-line interface (CLI) for configuration and management.

Can Cisco switches support Layer 3 routing?

Yes, Cisco switches with Layer 3 capabilities can perform routing functions, allowing them to forward data between different VLANs or subnets.

What is the forwarding rate of Cisco switches?

The forwarding rate of Cisco switches refers to the speed at which data packets can be processed and forwarded within the network, typically measured in millions of packets per second (Mpps).

Are Cisco switches compatible with other networking devices?

Yes, Cisco switches follow industry-standard protocols and are compatible with other networking devices, allowing them to work seamlessly in multi-vendor environments.

How do Cisco switches ensure high availability?

Cisco switches offer features like redundant power supplies, hot-swappable components, and Rapid Link Detection Protocol (RLDP) to ensure high availability and minimize downtime.

What is the Cisco CBS350-24P-4G switch?

The Cisco CBS350-24P-4G is a member of the Cisco Business Switches Series, featuring a compact design with 24 Gigabit Ethernet PoE+ ports and 4 Gigabit Ethernet uplink ports, offering high-performance connectivity for small to medium-sized networks.

How does the Cisco CBS350-24P-4G switch enhance network security and performance?

The switch supports features like VLANs (Virtual LANs), Quality of Service (QoS), and Access Control Lists (ACLs), enhancing both security and performance in the network.

Is the CBS350-24P-4G a cost-effective option for small businesses?

Yes, the CBS350-24P-4G offers 24 PoE+ ports and advanced networking features at a competitive price, making it ideal for small businesses.

What unique features does the CBS350-24P-4G offer?

The CBS350-24P-4G provides 24 PoE+ ports with a 195W power budget and 4 Gigabit SFP uplinks, ensuring robust connectivity and flexibility.

In what scenarios is the CBS350-24P-4G typically used?

The CBS350-24P-4G is ideal for SMB environments requiring efficient power management and secure connectivity for IP cameras, phones, and wireless access points.

How do I install the CBS350-24P-4G switch?

Installation of the CBS350-24P-4G is straightforward with an intuitive web-based user interface and smart utilities for setup and configuration.

Does the CBS350-24P-4G require upgrades?

The CBS350-24P-4G supports firmware upgrades to enhance performance, security, and add new features. Cisco provides regular updates for this purpose.

Are there any alternative products to the CBS350-24P-4G?

Alternative products to the CBS350-24P-4G include other models in the Cisco Business 350 Series and competitors like the HPE OfficeConnect 1820 series.

What are common troubleshooting steps for the CBS350-24P-4G?

Common troubleshooting includes verifying PoE functionality, checking cable connections, ensuring firmware is up-to-date, and reviewing network configurations.

What accessories are available for the CBS350-24P-4G?

Accessories for the CBS350-24P-4G include rack-mount kits, additional SFP modules for fiber connections, and power supplies.

How does the CBS350-24P-4G compare to other similar products?

The CBS350-24P-4G's PoE+ capabilities, 4 Gigabit SFP uplinks, and advanced security features often provide better value and performance than comparable SMB switches.

How can the CBS350-24P-4G be used to enhance network security?

The CBS350-24P-4G includes advanced security features like VLANs, ACLs, and 802.1X authentication to protect network integrity and prevent unauthorized access.

Is router-switch.com a reliable distributor?

Absolutely. As a multi-brand authorized distributor, router-switch.com is directly certified by leading technology manufacturers. We guarantee 100% genuine products, competitive pricing, and full manufacturer warranties and support.
