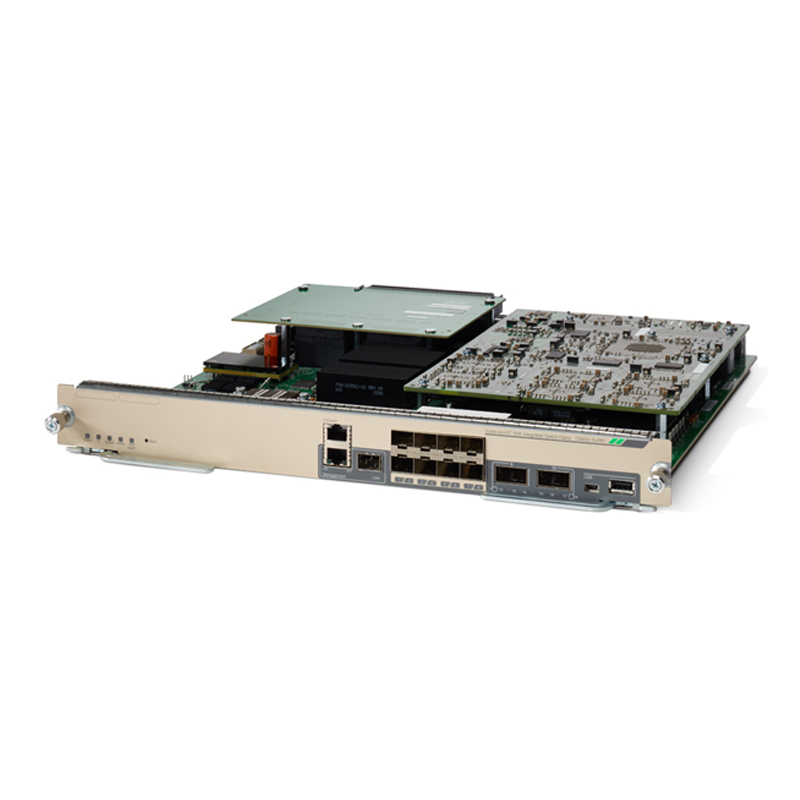

C6800-SUP6T-XL=

C6800-SUP6T-XL= Specification

Chassis compatibility

●  6500 E-Series*: Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, 6513-E

●  6800 Series: Cisco Catalyst 6807-XL

Switch fabric

●  6-Tbps crossbar switch fabric with 28 fabric channels

Line card compatibility

●  C6800-8P10G, C6800-8P10G-XL

●  C6800-16P10G, C6800-16P10G-XL

●  C6800-32P10G, C6800-32P10G-XL

●  C6800-48P-SFP, C6800-48P-SFP-XL

●  C6800-48P-TX, C6800-48P-TX-XL

●  WS-X6904-40G-2T, WS-X6904-40G-2TXL

●  WS-X6908-10G-2T, WS-X6908-10G-2TXL

●  WS-X6824-SFP-2T, WS-X6824-SFP-2TXL

●  WS-X6848-SFP-2T, WS-X6848-SFP-2TXL

●  WS-X6848-TX-2T, WS-X6848-TX-2TXL

●  WS-X6816-10T-2T, WS-X6816-10T-2TXL

●  WS-X6816-10G-2T, WS-X6816-10G-2TXL

With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-A, WS-F6k-DFC4-AXL)

●  WS-X6704-10GE

●  WS-X6724-SFP

●  WS-X6748-SFP

●  WS-X6748-GE-TX

With a DFC4 or DFC4XL upgrade (WS-F6k-DFC4-E, WS-F6k-DFC4-EXL)

●  WS-X6716-10GE

●  WS-X6716-10T

Service Modules

No Service Modules are supported

Supported IA clients

●  C6800IA-48TD – 48-port data-only IA

●  C6800IA-48FPD – 48-port PoE/PoE+

●  C6800IA-48FPDR – 48-port PoE/PoE+

●  WS-C3560CX-12PD-S – 12-port PoE, 8-port PoE+

● WS-C3560CX-8XPD-S – 8-port PoE

Slot requirements

Occupies the Supervisor slots as follows:

●  3-slot E-chassis – slots 1 and 2

●  4-slot E-chassis – slots 1 and 2

●  6-slot E-chassis – slots 5 and 6

●  7-slot 6807-XL chassis – slots 3 and 4

●  9-slot V-E chassis – slots 5 and 6

●  9-slot E-chassis – slots 5 and 6

●  13-slot E-chassis – slots 7 and 8

Software compatibility

●  Cisco IOS® Software Release 15.3(1)SY and future releases

Software packages

●  IP Services

●  Advanced Enterprise

Mgmt0

●  RJ45/SFP replaces the connectivity management processor (CMP)

DRAM

●  4-GB DDR3 for Standard and XL

NVRAM

●  4 MB

Bootdisk

●  4 GB (eUSB)

Disk 0

●  USB type A host drive

USB console port

●  USB type B mini

Management LED

●  Blue Beacon LED

Uplink ports

●  8 x 1-Gb/10-Gb Small Form Factor Pluggable Plus (SFP+) ports

●  2 x 40-Gb QSFP ports

Console ports

●  RJ-45 serial

●  USB mini B USB console

●  RJ-45 management Ethernet port

●  SFP fiber management port

Reliability and availability

●  Stateful Switchover + Nonstop Forwarding (SSO+NSF)

●  Fast Software Upgrade (FSU)

●  Enhanced Fast Software Upgrade (EFSU) – (Single Box, 2 Supervisors)

●  In-Service Software Upgrade (ISSU) – (VSS, VS4O)

●  Online insertion and removal (OIR) hot swap of power supplies, modules, fan trays, supervisors

Network management

●  Cisco Prime™ Infrastructure

●  Cisco Application Policy Infrastructure Controller – Enterprise Module (APIC-EM)

●  Simple Network Management Protocol (SNMP), Remote Monitoring (RMON)

Physical specifications

●  (H x W x D): 1.73 x 14.4 x 16 in (4.4 x 36.6 x 40.6 cm)

●  Weight: 11.64 lbs, 11.73 lbs (XL)

Power consumption

●  Standard: 341 W maximum

●  XL: 354 W maximum

ECC

●  ECC protection support

Environmental conditions

●  Operating temperature: 32 to 104°F (0 to 40°C)

●  Storage temperature: -40 to 167°F (-40 to 75°C)

●  Relative humidity: 10 to 90 percent, noncondensing
