How does the C6800-32P10G-XL= benefit system integrators?

The Catalyst 6800 32-port 10GE module offers high performance with dual integrated dual DFC4-XL, ensuring efficient network management for system integrators.

What are the key features of the C6800-32P10G-XL=?

The C6800-32P10G-XL= supports 32 ports of 10 Gigabit Ethernet, dual integrated DFC4-XL for high forwarding capacity, and enhanced security features.

Where can the C6800-32P10G-XL= be utilized?

The Catalyst 6800 32-port 10GE module is ideal for high-density campus core and data center aggregation environments.

How do you install the C6800-32P10G-XL=?

Installation involves sliding the module into the appropriate slot of a compatible Catalyst 6800 series chassis and securing it with screws.

Does the C6800-32P10G-XL= require an upgrade?

The module may require a software upgrade to the latest IOS version for optimal performance and new feature support.

Are there any alternative products to the C6800-32P10G-XL=?

Alternative products include other Catalyst 6800 series modules with varying port densities and features.

C6800-32P10G-XL=

Name: C6800-32P10G-XL=
SKU: C6800-32P10G-XL=
Rating: 4.8 (10 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	C6800-32P10G-XL=
Model:	C6800-32P10G-XL= - Cisco Catalyst 6800 Switch Module
Brand:	Cisco
Detail:	Catalyst 6800 32-port 10GE with dual integrated dual DFC4-XL spare
	Rating: 96% 4.8/5.0 10 Reviews 10 Questions
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

C6800-32P10G-XL=

Catalyst 6800 32-port 10GE with dual integrated dual DFC4-XL spare

List Price: US$71,801.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

C6800-32P10G-XL= Overview

The Cisco Catalyst6800 Family Switches offer a variety of 10-Gigabit Ethernet modules. Working in conjunction with the Catalyst 6500-E/6807-XL Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL), they can serve different needs on campus deployments. The family includes three modules: the Catalyst 6800 32-port, 16-port, and 8-port 10-Gigabit Ethernet Fiber Modules. C6800-32P10G-XL= is the C6800-32P10G-XL Spare, it provides eight 40G, thirty two 1G or thirty two 10G transceiver ports.

Quick Specs

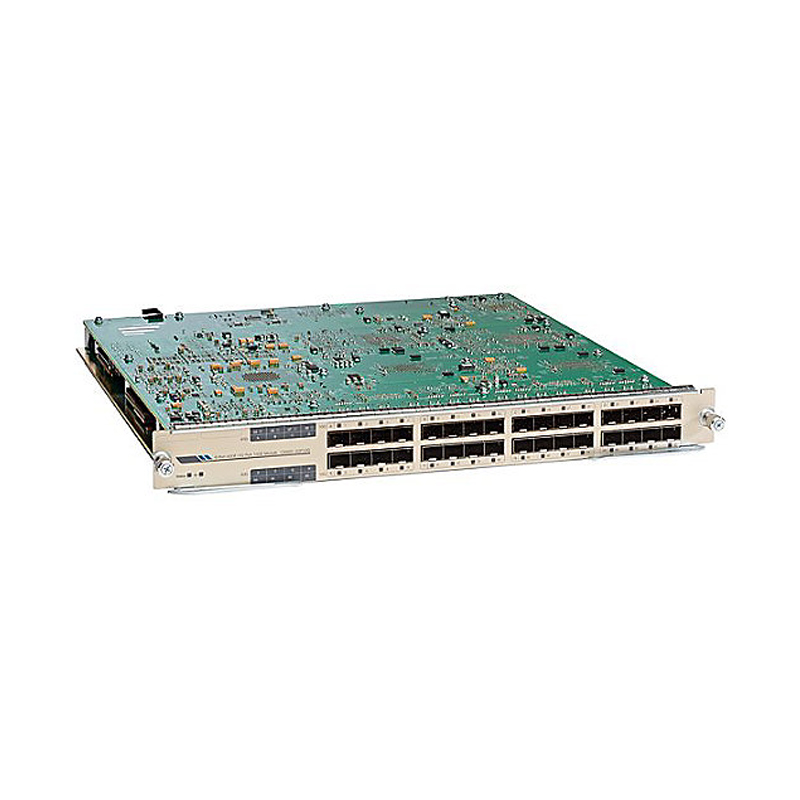

Figure 1 shows the 6800 Series 32-Port 10-Gigabit Ethernet Fiber Module.

Table 1 shows the Quick Specs.

Product Code	C6800-32P10G-XL=
Ports per module	·32 ports—Thirty-two 1G ports, or thirty-two 10G ports, or eight 40G ports ·Ports are numbered left to right. ·The top row has odd numbered ports 1 to 31. ·The bottom row has even numbered ports 2 to 32. ·4 port groups. Port ranges per port group: ·1, 3, 5, 7, 9,11, 13, 15 ·2, 4, 6, 8, 10, 12, 14, 16 ·17, 19, 21, 23, 25, 27, 29, 31 18, 20, 22, 24, 26, 28, 30, 32
Backplane connection	160-Gbps backplane bandwidth in 6807XL; 80 Gbps backplane bandwidth in 6500-E chassis
Chassis/slot support	Can occupy slots 1-2 and 5-7 in a Cisco Catalyst 6807-XL. Can occupy any slot in Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E
Distributed forwarding and performance	Comes equipped with factory-installed dual (2) DFC4-E or DFC4-EXL daughter cards
Maximum frame size	Up to 9216 bytes per frame
Module oversubscription rate	·2:1 oversubscription in a Cisco Catalyst 6807-XL chassis. (When all thirty-two 10G ports are used.) ·4:1 oversubscription in a Cisco Catalyst 6500 E-series chassis.(When all thirty-two 10G ports are used.)
Supervisor engine support	Supervisor Engine 2T-10GE Supervisor Engine 6T
Software support	With Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later With Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later
Fabric channel speed	In a Cisco Catalyst 6807-XL chassis—160 GB per second In a Cisco Catalyst 6500-E series chassis—80 GB per second
TDR support	Supported with GLC-T (1G Copper SFP) transceivers
Digital Optical Monitoring (DOM) support	The DOM-supported 1G transceivers and 10G Fiber SFP/SFP+ transceivers
Port connector type	LC (optical) or RJ-45 (copper) depending on the SFP transceiver installed. Depending on the distance between the end ports, different QSFP+ transceivers can be used
Dimensions (H x W x D)	1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)
Weight	14.33 lb (6.5 kg)

Product Details

Figure 2 shows the C6800-32P10G-XL= Ethernet Module Front Panel.

Note:

①	Status and ID LEDs
②	40G port IDs
③	10G ports (A total of eight port groups)
④	RFID

The Accessories

Table 2 shows the recommended elements for the C6800-32P10G-XL=.

Category	Model	Description
10G SFP Options	SFP-10G-LRM	10GBASE-LRM SFP Module
10G SFP Options	SFP-10G-ZR	10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)
GLC Options	GLC-BX-U	1000BASE-BX SFP, 1310NM
	GLC-SX-MMD	CiscoGLC-SX-MMD1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
	GLC-ZX-SMD	CiscoGLC-ZX-SMD1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparison of C6800-32P10G-XL= , C6800-16P10G-XL and C6800-8P10G=.

Product Code	C6800-32P10G-XL=	C6800-16P10G-XL	C6800-8P10G=
10GE ports	32 ports 1GE or 10GE	16 ports 1GE or 10GE	8 ports 1GE or 10GE
Port groups	4 port groups	2 port groups (N/A)	2 port groups (N/A)
Performance Mode	Yes per port-group	Yes per port-group	N/A
Switch fabric connection	160 Gbps in 6807-XL chassis 80 Gbps in 6500-E chassis	80 Gbps in 6807-XL and 6500-E chassis	80 Gbps in 6807-XL and 6500-E chassis

Get More Information

Do you have any question about the Cisco C6800-32P10G-XL=

Quality Certifications

Specification

C6800-32P10G-XL= Specification

C6800-32P10G-XL= Specification
Physical Specifications
Dimensions (H x W x D)	1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)
Weight	14.33 lb (6.5 kg)
Environmental Specifications
Operating temperature	Certified for operation: 32° to 104°F (0° to 40°C) Designed and tested for operation: 32° to 130°F (0° to 55°C)
Humidity (RH) ambient (noncondensing)	10 to 90 percent
Operating altitude	Certified for operation: 0 to 6500 ft (0 to 2000 m) Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are common troubleshooting steps for the C6800-32P10G-XL=?

Common troubleshooting includes checking for proper seating, verifying cable connections, and ensuring firmware compatibility.

What accessories are available for the C6800-32P10G-XL=?

Accessories include additional 10GE transceivers, compatible chassis, and power supply units.

How does the C6800-32P10G-XL= compare to other 6800 series modules?

The C6800-32P10G-XL= provides higher performance with its dual integrated DFC4-XL compared to other modules without this feature.

Is the C6800-32P10G-XL= cost-effective?

Yes, the C6800-32P10G-XL= offers a high port density and advanced features, making it a cost-effective solution for large-scale network environments.
