How cost-effective is the C6800-16P10G-XL=?

The C6800-16P10G-XL= offers high port density and scalability, reducing overall network equipment costs.

What are the key features of the C6800-16P10G-XL=?

The C6800-16P10G-XL= features 16 10GE ports and integrated DFC4-XL, ensuring high performance and flexibility.

What is the application scenario for the C6800-16P10G-XL=?

Ideal for large enterprise and data center environments requiring high bandwidth and performance.

How do I install the C6800-16P10G-XL=?

The C6800-16P10G-XL= can be easily installed in a compatible Cisco 6800 series switch module slot following the manufacturer's guidelines.

Does the C6800-16P10G-XL= need regular upgrades?

It's recommended to keep the device's firmware up-to-date for optimal performance and security.

Are there alternative products to the C6800-16P10G-XL=?

Alternatives include other Cisco 6800 series modules with different port configurations.

C6800-16P10G-XL=

Name: C6800-16P10G-XL=
SKU: C6800-16P10G-XL=
Rating: 4.8 (10 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	C6800-16P10G-XL=
Model:	C6800-16P10G-XL= - Cisco Catalyst 6800 Switch Module
Brand:	Cisco
Detail:	Catalyst 6800 16-port 10GE with integrated DFC4-XL spare
	Rating: 96% 4.8/5.0 10 Reviews 10 Questions
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

C6800-16P10G-XL=

Catalyst 6800 16-port 10GE with integrated DFC4-XL spare

List Price: US$55,844.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

C6800-16P10G-XL= Overview

C6800-16P10G-XL= is a 16-port 10-Gigabit Ethernet Fiber Module with DFC4XL, it provides four 40G, sixteen 10G or sixteen 1G transceiver ports.

Quick Specs

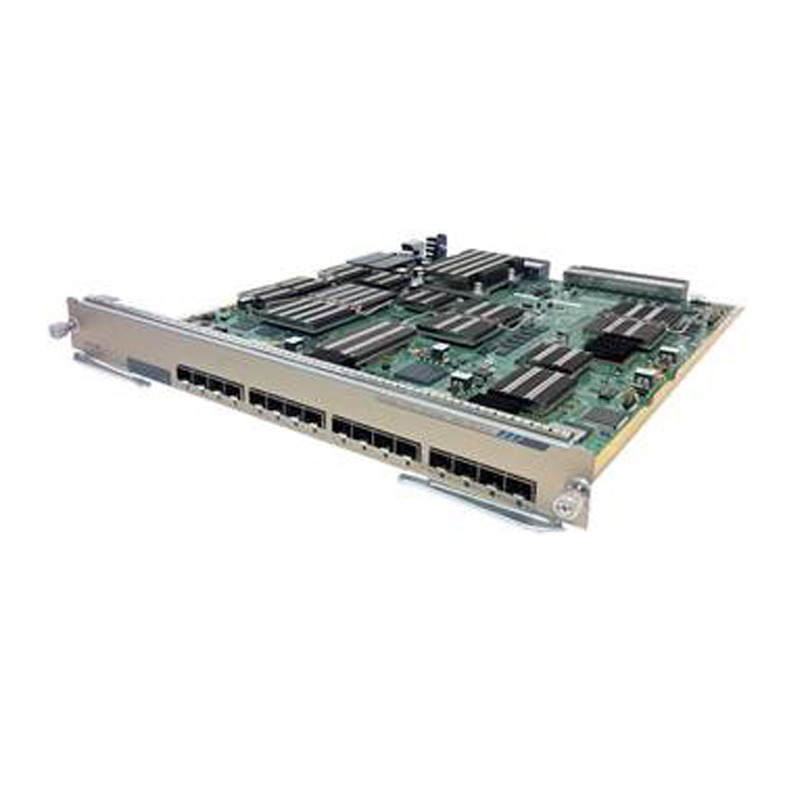

Figure 1 shows the 6800 Series 16-Port 10-Gigabit Ethernet Fiber Module.

Table 1 shows the Quick Specs.

Product Code	C6800-16P10G-XL=
Ports per module	·16 ports—Sixteen 1G ports, or sixteen 10G ports, or four 40G ports ·Ports are numbered left to right. ·2 port groups. Port ranges per port group: ·1 to 8 ·9 to 16
Cabling distance	Depends on the SFP transceiver installed in the module port
Maximum frame size	Up to 9216 bytes per frame
Module oversubscription rate	2:1 (When all sixteen 10G ports are used.)
Supervisor engine support	·Supervisor Engine 2T-10GE ·Supervisor Engine 6T
Software support	With Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later With Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later
Fabric channel speed	In a Cisco Catalyst 6807-XL chassis—80 GB per second In a Cisco Catalyst 6500-E series chassis—80 GB per second
TDR support	Supported with GLC-T (1G Copper SFP) transceivers
Digital Optical Monitoring (DOM) support	The DOM-supported 1G transceivers and 10G Fiber SFP/SFP+ transceivers
Operating temperature	Certified for operation: 32° to 104°F (0° to 40°C) Designed and tested for operation: 32° to 130°F (0° to 55°C)
Dimensions (H x W x D)	1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)
Weight	11.02 lb (5.0 kg)

Product Details

Figure 2 shows the C6800-16P10G-XL= Ethernet Module Front Panel.

Note:

①	40G port IDs
②	10G ports (A total of four port groups)

·The sticker on the module faceplate identifies it as either a C6800-16P10G or a C6800-16P10G-XL depending on whether a WS-F6K-DFC4-E or WS-F6K-DFC4-EXL daughter card is installed on the module.

The Accessories

Table 2 shows the recommended elements for the C6800-16P10G-XL=.

Category	Model	Description
10G SFP Options	SFP-10G-LRM	10GBASE-LRM SFP Module
10G SFP Options	SFP-10G-ZR	10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)
GLC Options	GLC-BX-U	1000BASE-BX SFP, 1310NM
	GLC-SX-MMD	CiscoGLC-SX-MMD1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
	GLC-ZX-SMD	CiscoGLC-ZX-SMD1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparison of C6800-16P10G-XL= , C6800-8P10G= and C6800-32P10G-XL=.

Product Code	C6800-16P10G-XL	C6800-8P10G=	C6800-32P10G-XL=
10GE ports	16 ports 1GE or 10GE	8 ports 1GE or 10GE	32 ports 1GE or 10GE
Port groups	2 port groups (N/A)	2 port groups (N/A)	4 port groups
Performance Mode	Yes per port-group	N/A	Yes per port-group
Switch fabric connection	80 Gbps in 6807-XL and 6500-E chassis	80 Gbps in 6807-XL and 6500-E chassis	160 Gbps in 6807-XL chassis 80 Gbps in 6500-E chassis

Get More Information

Do you have any question about the Cisco C6800-16P10G-XL=

Quality Certifications

Specification

C6800-16P10G-XL= Specification

C6800-16P10G-XL= Specification
Physical Specification
Dimensions (H x W x D)	1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)
Weight	11.02 lb (5.0 kg)
Environmental Specifications
Operating temperature	Certified for operation: 32° to 104°F (0° to 40°C) Designed and tested for operation: 32° to 130°F (0° to 55°C)
Humidity (RH) ambient (noncondensing)	10 to 90 percent
Operating altitude	Certified for operation: 0 to 6500 ft (0 to 2000 m) Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What common troubleshooting steps are there for the C6800-16P10G-XL=?

Common steps include checking connectivity, verifying configurations, and updating firmware.

What accessories are available for the C6800-16P10G-XL=?

Accessories include transceivers, cables, and compatible power supplies.

How does the C6800-16P10G-XL= compare with similar products?

Compared to similar products, the C6800-16P10G-XL= offers a balance of high performance and scalability.

How do I maximize the performance of the C6800-16P10G-XL=?

Ensure proper configuration, use compatible accessories, and keep firmware updated for maximum performance.
