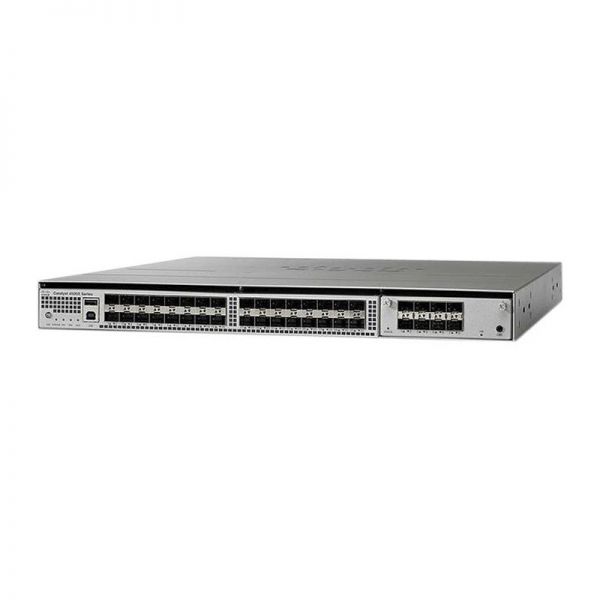

C1-C4500X-F-32SFP+, Cisco Catalyst 4500-X Switch, 32x10GE SFP+/Front-to-Back Airflow/No Power Supply

Name: C1-C4500X-F-32SFP+, Cisco Catalyst 4500-X Switch, 32x10GE SFP+/Front-to-Back Airflow/No Power Supply
SKU: C1-C4500X-F-32SFP+
Price: 20789 USD
Availability: OutOfStock
Rating: 4.7 (3 reviews)

Brand: Cisco
Model: C1-C4500X-F-32SFP+

Rating:

93%

4.7/5.0

3 Reviews

11 Questions

List Price: $32,340.00

36% OFF

$20,789.00

Price Alert

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New · Covered SN

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

C1-C4500X-F-32SFP+, Cisco Catalyst 4500-X Switch, 32x10GE SFP+/Front-to-Back Airflow/No Power Supply

100% Genuine Ready to Ship

$32,340.00

36% OFF

$20,789.00

Overview

Cisco C1-C4500X-F-32SFP+ Overview

The Cisco C1-C4500X-F-32SFP+ is an enterprise-class, high-density aggregation switch, designed for superior network core and distribution layers. Specifically engineered for large-scale deployments across enterprise networks and data centers, it delivers robust switching performance and simplified management. As part of the Catalyst 4500X family, it offers 32 SFP+ ports supporting both 10G and 1G connections for versatile fiber integration, making it an excellent fit for environments with high-bandwidth requirements and future-ready scalability. Integrated support for Virtual Routing and Forwarding (VRF) enables secure traffic segmentation, allowing businesses to run multiple virtual networks on the same hardware — a capability crucial for multi-tenant or segmented architectures in modern enterprises. Operating on Cisco IOS XE, this switch provides a unified, modular OS environment, ensuring exceptional resiliency, security, and advanced automation. The integration with Cisco 4500X technologies empowers high-speed core aggregation, with features such as VSS (Virtual Switching System) offering up to 1.6 Tbps scalability. Enhanced Layer 3 capabilities, including advanced VRF-Lite and comprehensive protocol support (OSPF, RIP, EIGRP, plus upgradable BGP and PIM functionality), suit enterprises requiring reliable network segmentation and seamless expansion. For distributors, system integrators, and end users in Asia, Europe, Africa, and North America, the C1-C4500X-F-32SFP+ combines unmatched switch capacity, operational efficiency, and global regulatory compliance for critical core and edge network scenarios.

Product Highlights

800 Gbps

Switch Cap.

32 SFP+

10G Ports

250 Mpps

Fwd. Rate

Product Applications Scenarios

Data Center

With high-density 10G/1G connectivity and VSS support, it streamlines data center core and aggregation, increasing network uptime.

Enterprise Network

Cisco IOS XE and VRF enable secure segmentation, making this switch ideal for large campus or headquarters deployment.

Cloud Services

Delivers low-latency, high-throughput switching supporting cloud infrastructure with 800 Gbps for scalable SaaS and IaaS.

Product Features Comparison


Model	C1-C4500X-F-32SFP+	C1-C4500X-F-16SFP+	C1-WSC3850-48XS-S	C1-N9K-C9372TX-E
Brand	Cisco	Cisco	Cisco	Cisco
Port Configuration	32 × SFP+ (supports 10G/1G via SFP/SFP+ optics)	16 × SFP+ (supports 10G/1G via SFP/SFP+ optics)	48 × 10 Gigabit Ethernet SFP+ ports	48 × 1/10G BASE-T (RJ45), 6 × 40G QSFP+ uplink
Switching Capacity	800 Gbps (1.6 Tbps with VSS)	800 Gbps (1.6 Tbps with VSS)	1280 Gbps	720 Gbps
Forwarding Rate	IPv4: 250 Mpps (hardware), IPv6: 125 Mpps (hardware)	IPv4: 250 Mpps; IPv6: 125 Mpps (hardware)	909 Mpps	1.4 Tbps
PoE Budget	n/a	n/a	n/a	n/a
Stacking Capability	n/a	n/a	StackWise-480 (up to 9 units)	n/a

Optional Add-ons

Model Number	Description
C4KX-NM-8SFP+	Cisco 8-port 10G SFP+ module for Catalyst 4500-X fixed switch expansion.
C4KX-PWR-750AC-F	Cisco 750W AC Power Supply (rear-to-front airflow), hot-swappable for Catalyst 4500-X series.
C4KX-PWR-750DC-F	Cisco 750W DC Power Supply (rear-to-front airflow), hot-swappable for Catalyst 4500-X series.

Quality Certifications

Specification

Cisco C1-C4500X-F-32SFP+ Specification

Model

C1-C4500X-F-32SFP+

Brand

Cisco

Series

Catalyst 4500-X Fixed 10G Ethernet Switch

Form Factor

1RU

Cooling

Rear-to-front airflow (blue fan handles)

10G Ethernet Ports

32 × SFP+ (supports 10G/1G via SFP/SFP+ optics)

Uplink Expansion

Optional 8-port 10G module (C4KX-NM-8SFP+)

Management Ports

1 × 10/100/1000BASE-T RJ45, USB Type-A (up to 4GB)

Switching Capacity

800 Gbps (1.6 Tbps with VSS)

Forwarding Rate

IPv4: 250 Mpps (hardware), IPv6: 125 Mpps (hardware)

MAC Addresses

55K entries

VLANs

4,094 active / 4,096 IDs

Jumbo Frames

Up to 9,216 bytes

Power Supplies

Dual hot-swappable 750W AC/DC (supports mixed modes)

Fans

5 hot-swappable fans (N+1 redundancy)

MTBF

199,720 hours

Base OS

Cisco IOS XE 3.3.0 SG (minimum)

Feature Set

IP Base (includes RIP, EIGRP, OSPF)

Upgrade Option

Enterprise Services (BGP, PIM, VRF-Lite via SAL)

VSS (Virtual Switching System)

Future support for 1.6 Tbps scalability

Multi-VRF

64 instances

QoS

8 queues/port, 128K ACL/QoS shared entries

Security

802.1X, port security, Hardware CoPP

SPAN/RSPAN

8 bidirectional sessions

Flexible NetFlow

128K entries (L2-L4 visibility)

Dimensions

17.29 in (43.92 cm) W × 16.14 in (40.99 cm) D × 1.712 in (4.445 cm) H

Operating Temperature

32°F to 104°F (0°C to 40°C)

Humidity

10% to 90% non-condensing

Altitude

-60 m to 3,000 m

Optional Modules

C4KX-NM-8SFP+ (8-port 10G)

Power Supply Options

C4KX-PWR-750AC-F (AC, rear-to-front), C4KX-PWR-750DC-F (DC, rear-to-front)

Compliance

UL 60950-1, EN 60950-1, FCC Part 15 Class A, EN55022 Class A, RoHS Compliant
