main product photo
Name:

ASR1009-X

Model:ASR1009-X - Cisco ASR 1000 Series Router
Brand: Cisco
Detail:
ASR1009-X Router Chassis
Rating:
93%
4.7/5.0
8 Reviews
List Price:US$21,236.85 (54% OFF)
Price:US$9,682.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: In Stock at Global Warehouses.
  • United States
  • United Kingdom
  • Germany
  • United Arab Emirates
  • Singapore
  • India
  • Hong Kong
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

ASR1002-10G/K9

ASR1002-10G/K9

Rating:
100%
5/5.0
1 Review
US$29,232.00
ASR1001

ASR1001

Rating:
95%
4.8/5.0
19 Reviews
US$9,036.00
ASR1002

ASR1002

Rating:
98%
4.9/5.0
16 Reviews
US$12,379.00
ASR1004

ASR1004

Rating:
98%
4.9/5.0
16 Reviews
US$5,457.00
ASR1000-ESP40

ASR1000-ESP40

Rating:
100%
5/5.0
5 Reviews
US$23,070.00
ASR1000-RP2

ASR1000-RP2

Rating:
96%
4.8/5.0
5 Reviews
US$22,593.00
Cisco ASR1001-X

ASR1001-X

Rating:
95%
4.8/5.0
72 Reviews
US$19,768.00
Cisco ASR1002-X

ASR1002-X

Rating:
97%
4.9/5.0
52 Reviews
US$27,168.00
ASR1001X-2.5G-K9

ASR1001X-2.5G-K9

Rating:
98%
4.9/5.0
11 Reviews
US$21,641.00
ASR1001X-10G-K9

ASR1001X-10G-K9

Rating:
97%
4.9/5.0
13 Reviews
US$16,911.00
ASR1002X-36G-NB

ASR1002X-36G-NB

Rating:
100%
5/5.0
6 Reviews
US$20,243.00
ASR1006-X

ASR1006-X

Rating:
98%
4.9/5.0
18 Reviews
US$8,606.00

ASR1009-X

ASR1009-X Router Chassis

List Price: US$21,236.85
Price: US$9,682.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

ASR1009-X Overview

The Cisco ASR 1009-X Router is for medium and high-end enterprises with up to 200 Gbps total system bandwidth in a 9-rack-unit (9RU) form factor. With the ASR 1009-X, you can benefit from best-in-class service performance and network resilience through redundant hardware and carrier class software.

Quick Specs

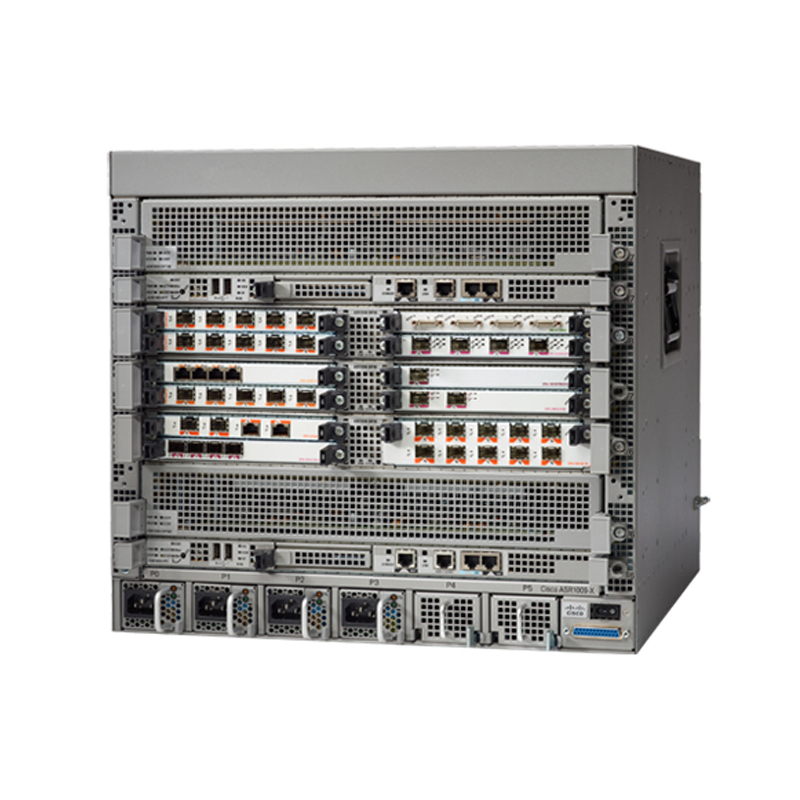

Figure 1 shows the appearance of ASR1009-X.

  ASR1009-X

Table 1 shows the Quick Specs.

Product Code

ASR1009-X

Default memory

8-GB DRAM RP2

8-GB DRAM RP3

Number of SIPs or Ethernet line cards supported

3

Shared port adapters

12 SPA slots

Ethernet port adapters

6 EPA slots

Route processor

2 route-processor slots

Network interface module

No

Weight

154 lb (70 kg)

Dimensions (W x D x H)

437.4 mm x 461.0 mm x 399.3 mm

Product Details

Figure 2 shows the back panel of ASR1009-X.

  ASR1009-X-front

Note:

①

Power shelf that has power supplies from P0 to P5

②

Slot F1

③

Slot R1

④

Slot 2

⑤

Slot 1

⑥

Slot 0

⑦

Slot F0

⑧

Slot R0

⑨

Standby/ON switch

⑩

DB-25 Alarm connector

The Cards，License，USB Flash ，Embedded Services Processor

Table 2 shows the recommended elements for the ASR1009-X.

Model

Description

card

ASR1000-RP2

Cisco ASR1000 Route Processor 2, 8GB DRAM

License

FLASR1-SBC-RTU

DBE Base Right-To-Use Lic for Release 2.3.x and prior

FLASR1-BB-RTU

Broadband Right-To-Use Feature Lic for ASR1000 Series

FLASR1-IPSEC-RTU

Encryption Right-To-Use Feature Lic for ASR1000 Series

USB Flash

MEMUSB-1024FT

1GB USB Flash Token

Embedded Services Processor

ASR1000-ESP40

Cisco ASR1000 Embedded Services Processor, 40G

Compare to Similar Items

Table 3 shows the comparison between ASR1009-X and ASR1002-X.

Model

ASR1009-X.

ASR1002-X

Default memory

8-GB DRAM RP2

8-GB DRAM RP3

4-GB DRAM shared across route processor, ESP, and SIP

Number of SIPs or Ethernet line cards supported

3

Integrated in chassis

Shared port adapters

12 SPA slots

3 SPA slots

Ethernet port adapters

6 EPA slots

N/A

Route processor

2 route-processor slots

Integrated in the chassis: Cisco ASR 1002-X Series Route Processor

with Quad Core Processor

Network interface module

No

No

Weight

154 lb (70 kg)

39.05 lb (17.72 kg)

Dimensions (W x D x H)

437.4 mm x 461.0 mm x 399.3 mm

437.4 mm x 461.0 mm x 88.9 mm

Get more information

Do you have any question about the ASR1009-X?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

ASR1009-X Specification

ASR1009-X Specifications

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 15.72 in. (399.3 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  50 lb empty

●  154 lb (70 kg) (with three fan modules, four AC power supplies, two power bay blanks, two Cisco ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], three Cisco ASR 1000 Series 100-Gbps MIPs [ASR1000-MIP100], six EPA blanks, and no EPAs)

Default memory

8-GB DRAM RP2

8-GB DRAM RP3

Number of SIPs or Ethernet line cards supported

3

Shared port adapters

12 SPA slots

Ethernet port adapters

6 EPA slots

Cisco ASR 1000 Series ESP

2 ESP slots

Route processor

2 route-processor slots

Redundancy

Hardware: Yes

Built-in Gigabit Ethernet ports

0

Built-in 10 Gigabit Ethernet port

No

Network interface module

No

Cisco ASR 1000 Series

Cisco ASR 1009-X

ESP support

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40),
Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100), and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200)

ESP bandwidth

40 to 200 Gbps

ESP memory

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40):
8-GB DRAM

Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM

Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200): 32-GB DRAM

SIPs and Ethernet line cards

Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE (ASR1000-2T+20X1GE) line cards; and six 10 GE line cards (ASR1000-6TGE)

Embedded hardware-based encryption

Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput, Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput, and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) with up to 78-Gbps crypto support throughput

Minimum Cisco IOS XE Software release

Cisco IOS XE Software Release 3.16.0

Rack-mounting

Yes: 19-inch

Wall-mounting

No

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Yes: Dual power supplies by default, expandable up to a total of six, depending on configuration and redundancy preferences; option of either 1100W AC or 950W DC

Note: A mix of AC and DC power supplies is not supported.

Power input

Worldwide ranging AC input range (85 to 264 VAC)

Worldwide ranging DC

(-40 to -72; -48V nominal)

Power consumption

●  Maximum (DC): 5200W

●  Maximum (AC): 5100W

●  Maximum (out): 4575W

Airflow

Front-to-back

Operating temperature (nominal)

Same as for Cisco ASR 1001-X

Operating temperature (short-term)

Same as for Cisco ASR 1001-X

Operating humidity (nominal) (relative humidity)

Same as for Cisco ASR 1001-X

Operating humidity (short-term)

Same as for Cisco ASR 1001-X

Storage temperature

Same as for Cisco ASR 1001-X

Storage humidity (relative humidity)

Same as for Cisco ASR 1001-X

Operating altitude

Same as for Cisco ASR 1001-X

Network Equipment Building Standards (NEBS)

GR-1089 and GR-63 (in progress)

EMC standards

Same as for Cisco ASR 1001-X

Safety Standard

UL60950-1

CSA C22.2 No. 60950-1-03

EN 60950-1

IEC 60950-1

AS/NZS 60950.1

Quality Certifications

Q&A

Questions & Answers

What accessories are available for the ASR1009-X Router Chassis?

Accessories for the ASR1009-X Router Chassis include power supply units, fan trays, and additional network interface cards.

How does the ASR1009-X Router Chassis compare with other similar routers?

The ASR1009-X Router Chassis offers superior scalability and modularity compared to similar products, making it a robust solution for demanding network environments.

What are common troubleshooting steps for the ASR1009-X Router Chassis?

Common troubleshooting steps include checking power supplies, verifying network connections, and updating firmware.

Can the ASR1009-X Router Chassis be used in high-bandwidth environments?

Yes, the ASR1009-X Router Chassis is designed to handle high-bandwidth requirements efficiently, making it suitable for large-scale network deployments.
