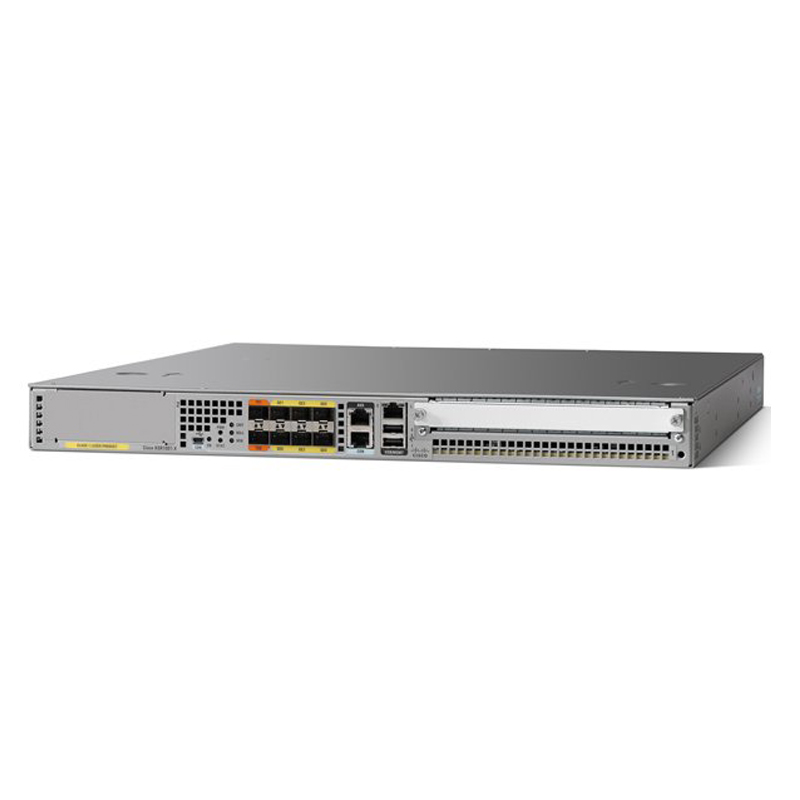

ASR1001X-20G-K9, Cisco ASR1001-X Router, 20G throughput/6x1GE/2x10GE

ASR1001X-20G-K9 Specifications

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 1.71 in. (43.43 mm)

Width: 17.3 in. (439.42 mm)

Depth: 18.17 in. (461.5 mm)

Weight:

●  25 lb (11.35 kg) fully loaded

Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated.

Default memory

8-GB DRAM shared across route processor, ESP, and SIP

Number of SIPs or Ethernet line cards supported

Integrated in chassis

Shared port adapters

1 single-height SPA slot

Ethernet port adapters

N/A

Cisco ASR 1000 Series ESP

Integrated in chassis

Route processor

Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor

Redundancy

Software: Yes

Built-in Gigabit Ethernet ports

Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports

Built-in 10 Gigabit Ethernet port

Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports

Note:Built-in 10-GB ports cannot be reduced to 1-GB speed.

Network interface module

Yes

Cisco ASR 1000 Series

Cisco ASR 1001-X

ESP support

Cisco ASR 1000 Series 2.5-Gbps ESP (default)

Upgradable through a software-activated feature license to 5, 10, or 20 Gbps

ESP bandwidth

2.5 to 20 Gbps

ESP memory

Share the same control memory on route processor

SIPs and Ethernet line cards

Integrated in chassis; not upgradable

Embedded hardware-based encryption

Yes: Up to 8-Gbps crypto support throughput

Minimum Cisco IOS XE Software release

Cisco IOS XE Software Release 3.12.0

Rack-mounting

Yes: 19-inch

Wall-mounting

No

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Yes: Dual power supplies by default; option of either AC or DC power supply

Note: A mix of one AC and one DC power supply is not supported.

Power input

Worldwide ranging AC input range (85 to 264 VAC)

Worldwide ranging DC

(-40 to -72V; 48V nominal)

Power consumption

●  Maximum (DC): 242W

●  Maximum (AC): 250W

●  Maximum (out): 250W

Airflow

Front-to-back

Operating temperature (nominal)

32 to 104°F
(0 to 40°C)

Operating temperature (short-term)

32 to 122°F
(0 to 50°C)

Operating humidity (nominal) (relative humidity)

10 to 85%

Operating humidity (short-term)

5 to 90%

Storage temperature

-40 to 150°F

(-40 to 70°C)

Storage humidity (relative humidity)

5 to 95%

Operating altitude

-500 to 10,000 feet
(152 to 3048 meters)

Network Equipment Building Standards (NEBS)

GR-1089 and GR-63 (in progress)

EMC standards

●  FCC 47 CFR Part 15 Class A

●  VCCI Class A

●  AS/NSZ Class A

●  ICES-003 Class A

●  EN55022/CISPR 22 Information Technology Equipment

(Emissions)

●  EN55024/CISPR 24 Information Technology Equipment

(Immunity)

●  EN300 386 Telecommunications Network Equipment

●  (EMC)

●  EN50082-1/EN61000-6-1 Generic Immunity Standard

Safety Standard

UL60950-1

CSA C22.2 No. 60950-1-03

EN 60950-1

IEC 60950-1

AS/NZS 60950.1
