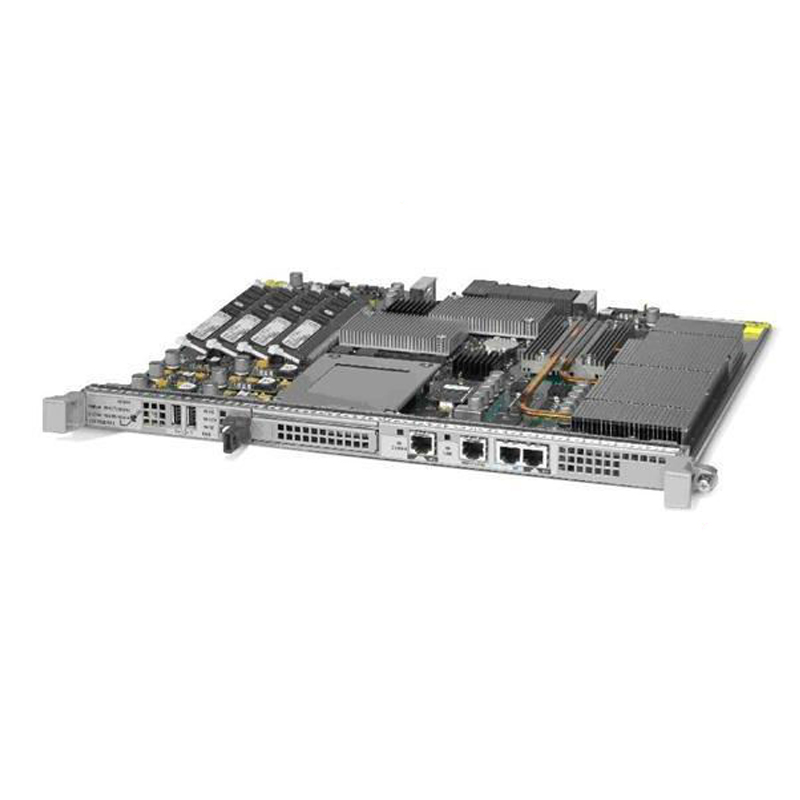

ASR1000-RP3, Cisco ASR1000 Router, High-performance CPU/Integrated control/Redundant design

ASR1000-RP3 Specifications

Chassis support

Cisco ASR 1006-X, 1009-X, and 1013 chassis

Software compatibility

Minimum Cisco IOS XE 16.3.1 Software

(Please consult your Cisco account representative for additional details.)

Software protocols

Refer to Cisco IOS XE 16.3.1 and later versions for protocol support

Connectivity

●  Console port (RJ-45 connector)

●  Auxiliary port (RJ-45 connector)

●  10/100/1000 Ethernet port (RJ-45 connector)

●  RJ-48 connector for BITS input clock and output source

Memory options

●  8-GB memory default; upgradable to 16-GB, 32-GB, or 64-GB memory

Storage options

●  100-GB SSD (hot-swappable); upgradable to 200-GB or 400-GB SSD

●  1-GB USB compact flash memory

Performance

With 8-GB memory:

●  Up to 1,000,000 IPv4 routes or 1,000,000 IPv6 routes

●  BGP RR scalability up to 8,000,000 IPv4 routes or 6,000,000 IPv6 routes

With 16-GB memory:

●  Up to 4,000,000 IPv4 routes or 4,000,000 IPv6 routes

●  BGP RR scalability up to 24,000,000 IPv4 routes or 17,000,000 IPv6 routes

Reliability and availability

●  1 + 1 redundancy in dual-route-processor configuration

●  Support for OIR

●  Support for NSF and SSO

●  Support for ISSU

MIBs

●  RFC 2737 compliant

Network management

●  Telnet and SSH (CLI)

●  Console port (through the CLI)

●  SNMP

●  RFC 2665

LEDs

●  PWR - Power

Green - All power rails are within specifications

●  STAT - Status

Green - Cisco IOS Software has booted

Yellow - BootROM has successfully loaded

Red - System failure or during boot process

●  ACTV- Active

Green - Active route processor

●  STBY - Standby

Yellow - Standby route processor

●  CRIT - Critical alarm

Red - Critical alarm or during boot process

●  MAJ - Major alarm

Red - Major alarm

●  MIN - Minor alarm

Amber - Minor alarm

●  HD - Internal HDD

FLASH Green - Activity indicator

Off - No activity

●  USB - External compact flash

FLASH green - Activity indicator

●  BF - Boot flash (Internal)

FLASH green - Activity indicator

Off - No activity

●  CARRIER

BITS I/F Mode

Off - Out of service or not configured

Green - Normal or bridging

Amber - Fast

●  DTI Mode

Off - Warm-up, free-run, or holdover

Green - In service or working properly

Amber - Fault or loop condition

●  LINK - Management Ethernet link status

Solid green - Link with no activity

FLASH green - Link with activity

Off - No link

●  DISK2 - Internal HDD

FLASH green - Activity indicator

Off - No activity

●  CARRIER - BITS interface

Off - Out of service

Green - In frame and in service

Amber - Fault or loop condition

Physical dimensions

(H x W x D)

0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36m)

Weight

7 lb (3.2 kg)

Approvals and compliance

Safety

●  UL60950-1 and CAN/CSA-C22.2 No. 60950-1-03 Information technology equipment

●  AS/NZS 60950-1

●  IEC/EN 60950-1 Information technology equipment

●  73/23/EEC

Electromagnetic Emissions Certification

●  CFR 47 Part 15: (FCC) Class A

●  ICES 003 Class A

●  AS/NZ CISPR 22: Class A

●  CISPR 22 (EN55022) Class A

●  VCCI Class A

●  KN22

●  IEC/EN 61000-3-2 (or 3-12 as applicable): AC Power Line Harmonics

●  IEC/EN 61000-3-3 (or 3-11 as applicable): AC Voltage Fluctuations and Flicker

Immunity

●  IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8-kV Contact, 15-kV Air)

●  IEC/EN-61000-4-3: Radiated Immunity (10 V/m)

●  IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2-kV Power, 1-kV Signal)

●  IEC/EN-61000-4-5: Surge AC Port (4-kV CM, 2-kV DM)

●  IEC/EN-61000-4-5: Surge Signal Ports (1-kV indoor, 2-kV outdoor)

●  IEC/EN-61000-4-5: Surge DC Port 1-kV

●  IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)

●  IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30 A/m)

●  IEC/EN-61000-4-11: Voltage Dips, Short Interruptions, and Voltage Variations

Network Equipment Building Standards

The module meets the following NEBS:

●  GR-1089-CORE

●  GR-63-CORE

ETSI and EN Standards

●  EN300 386: Telecommunications Network Equipment (EMC), OTC

●  EN55022: Information Technology Equipment (Emissions)

●  EN55024: Information Technology Equipment (Immunity)

●  EN50082-1/EN-61000-6-1: 1995-Generic Immunity Standard

Environmental

●  Storage temperature: -38 to 150°F (-40 to 70°C)

●  Operating temperature, nominal: 41 to 104°F (5 to 40°C)

●  Operating temperature, short-term: 23 to 131°F (-5 to 55°C)

●  Storage relative humidity: 5 to 95% RH

●  Operating humidity, nominal: 5 to 85% RH

●  Operating humidity, short-term: 5 to 90% RH

●  Operating altitude: -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
