main product photo
Name:

ASR-9001

Model:ASR-9001 Cisco ASR 9001 Chassis
Brand: Cisco
Detail:
ASR 9001 Router with 4 x 10 GE
Rating:
94%
4.7/5.0
10 Reviews
List Price:US$71,143.00 (79% OFF)
Price:US$14,800.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: In Stock at Global Warehouses.
  • United States
  • United Kingdom
  • Germany
  • United Arab Emirates
  • Singapore
  • India
  • Hong Kong
Condition:New Factory Sealed
Related:
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

CAB-AC16A-CH

CAB-AC16A-CH

Rating:
80%
4/5.0
1 Review
US$27.00

ASR-9001

ASR 9001 Router with 4 x 10 GE

List Price: US$71,143.00
Price: US$14,800.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

ASR-9001 Overview

The Cisco ASR 9001 is a compact, high-capacity, provider-edge router that delivers 120 Gbps of nonblocking, full-duplex fabric capacity in a 2-rack-unit (2RU) form factor. Cisco ASR 9001 has an integrated route switch processor (RSP) and two modular bays, which support 1 Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet modular port adapters. The base chassis, ASR-9001 has four integrated 10 Gigabit Ethernet enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.

Quick Specs

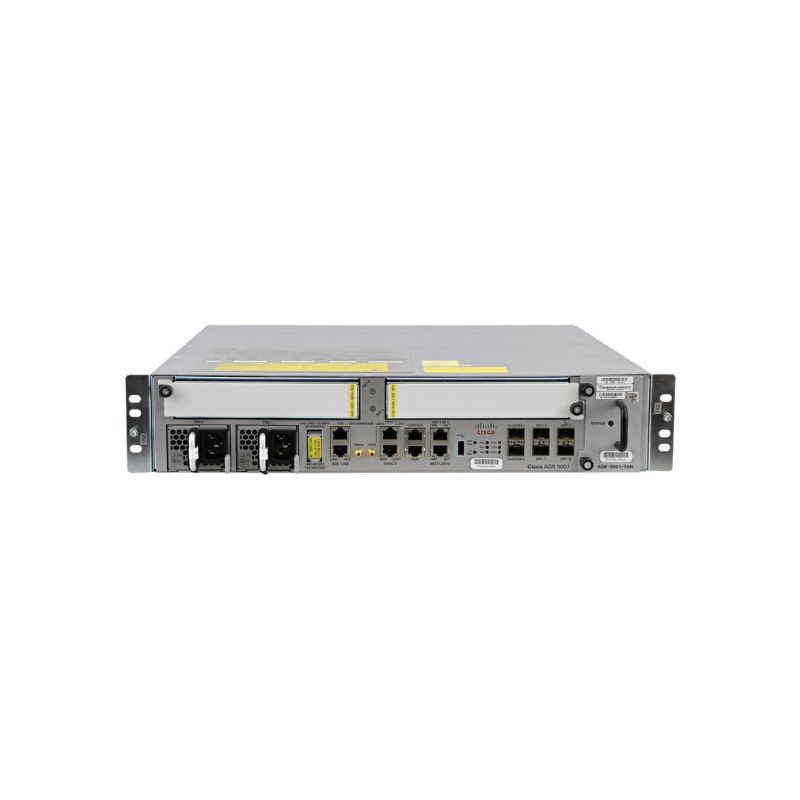

Figure 1 shows the appearance of ASR 9001 router. ASR-9001 is the chassis without these installed modules.

ASR-9001 with Installed Modules

Table 1 shows the quick spec of ASR 9001 router. ASR-9001 can deliver these spec when installed by the necessary modules.

Model

ASR 9001

Slots

Fixed 4x10GE
2 Modular Port Adapters

Rack Size

2 RU

Max Capacity

240 Gbps

Size (H x W x D)

3.5 in. x 17.5 in. x 18.5 in.

Power

AC or DC
425 W (typical), 525 W (max)

Fan

1 fan tray

Airflow

Side to Side

RSP / RP

Integrated

Fabric Architecture

Integrated

Software

IOS XR

Product Details

Figure 2 shows the front panel of ASR-9001 with installed modules. These modules must be purchased separately.

ASR-9001 Front Panel

Notes:

①

4 x 10 GE Modular Port Adapter

⑧

CONSOLE and AUX ports

②

20 x GE Modular Port Adapter

⑨

Management LAN ports

③

Power Supply Slot

⑩

External USB port

④

Power Supply Slot

⑪

Eight discrete LED indicators

⑤

Service LAN and ToD ports

⑫

CLUSTER ports

⑥

10MHz and 1PPS ports

⑬

Fixed SFP+ ports

⑦

SYNC (BITS/J.211) ports

⑭

Fan Tray Slot

Figure 3 shows the back view of ASR 9001 router.

ASR-9001 Back View

Configuration

Table 2 shows the recommended components.

Model

Description

A9K-MPA-20X1GE

Cisco ASR 9000 Series Router Modular Port Adapter A9K-MPA-20X1GE ASR 9000 20-port 1GE Modular Port Adapter

A9K-MPA-4X10GE

Cisco ASR 9000 Series Router Modular Port Adapter A9K-MPA-4X10GE ASR 9000 4-port 10GE Modular Port Adapter

A9K-750W-AC

Cisco ASR 9001 Power Supply A9K-750W-AC ASR 9000 Series 750W AC Power Supply for ASR-9001 Spare

A9K-750W-DC

Cisco ASR 9001 Power Supply A9K-750W-DC ASR 9000 750W DC Power Supply for ASR-9001 Spare

ASR-9001-FAN

Cisco ASR 9001 Fan ASR-9001-FAN ASR 9001 Fan Tray Spare

A9K-9001-AIP-LIC=

Cisco ASR 9001 License A9K-9001-AIP-LIC ASR 9001 AIP License

A9K-9001-OPT-LIC=

Cisco ASR 9001 License A9K-9001-OPT-LIC ASR 9001 Advanced Optical License

ASR-9001-2P-KIT

Cisco ASR 9001 Mounting Kit ASR-9001-2P-KIT ASR 9001 2 Post Mounting Kit

SFP-10G-SR

10GBASE-SR SFP Module

SFP-10G-ZR

10GBase-ZR Optical Transceiver, SFP+,10G,Single-mode Module(1550nm,80km,LC)

A9K-MPA-4X10GE

Cisco ASR 9000 Series Router Modular Port Adapter A9K-MPA-4X10GE ASR 9000 4-port 10GE Modular Port Adapter

A9K-MPA-20X1GE

Cisco ASR 9000 Series Router Modular Port Adapter A9K-MPA-20X1GE ASR 9000 20-port 1GE Modular Port Adapter

Compare to Similar Item

Table 3 shows the comparison between ASR-9001 and ASR-9006-AC-V2.

Model

ASR-9001

ASR-9006-AC-V2

Type

Cisco ASR-9001 Chassis

Cisco ASR-9006 AC Chassis PEM Version 2

Slots

2 Modular port adapters

4 Line Cards
2 RSPs

Rack Size

2 RU

10 RU

Get more information

Do you have any question about the Cisco ASR-9001?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

ASR-9001 Specification

ASR-9001 Specifications

Type

Cisco ASR 9001 Chassis

Integrated interfaces

4 x 10 GE SFP+

Modular port adapters

20 x 1 GE, 2 x 10 GE, 4 x 10 GE, 1 x 40 GE

Redundancy

Power supply redundancy

Power supply part number

●  A9K-750W-AC

●  A9K-750W-DC

Physical specifications

●  Height: 3.472 inches (88.2 mm)

●  Width: 17.42 inches (442 mm)

●  Depth: 18.5 inches (470 mm)

●  Weight of chassis: 30.2032 lbs (13.7 kg)

●  Weight of chassis with two MPAs: 36.37623 lbs (16.5 kg)

Power inputs

●  Worldwide ranging AC (90-265V; 50-60 Hz)

●  Worldwide ranging DC (-40V to -72V)

Power consumption

425 watts typical, 525 watts maximum

Environmental conditions

●  Operating temperature: 32 to 104°F (0 to 40°C)

●  Storage temperature: -40 to 167°F (-40 to 75°C)

●  Relative humidity: 10 to 90%, noncondensing

●  Regulatory compliance

Environmental Specifications

Operating temperature (nominal)

41 to 104ºF (5 to 40ºC)

Operating temperature
(short-term)

23 to 131ºF (-5 to 55ºC)

Operating humidity (nominal) (relative humidity)

10 to 85%

Operating humidity
(short-term)

5 to 90%
Note: Not to exceed 0.024 kg water or dry air

Storage temperature

-40 to 158ºF (-40 to 70ºC)

Storage (relative humidity)

5 to 95%
Note: Not to exceed 0.024 kg water or dry air

Operating altitude

-1800m

Air flow

Side to side

Compliance

Network Equipment Building Standards (NEBS)

Cisco ASR 9001 is designed to meet:

●  SR-3580: NEBS Criteria Levels (Level 3)

●  GR-1089-CORE: NEBS EMC and Safety

●  GR-63-CORE: NEBS Physical Protection

●  VZ.TPR.9205: Verizon TEEER

ETSI standards

Cisco ASR 9001 is designed to meet (qualification in progress):

●  EN300 386: Telecommunications Network Equipment (EMC)

●  ETSI 300 019 Storage Class 1.1

●  ETSI 300 019 Transportation Class 2.3

●  ETSI 300 019 Stationary Use Class 3.1

●  EN55022: Information Technology Equipment (Emissions)

●  EN55024: Information Technology Equipment (Immunity)

●  EN50082-1/EN-61000-6-1: Generic Immunity Standard

EMC standards

Cisco ASR 9001 is designed to meet:

●  FCC Class A

●  ICES 003 Class A

●  AS/NZS 3548 Class A

●  CISPR 22 (EN55022) Class A

●  VCCI Class A

●  BSMI Class A

●  IEC/EN 61000-3-2: Power Line Harmonics

●  IEC/EN 61000-3-3: Voltage Fluctuations and Flicker

●  EN 50121-4: Railway EMC

Immunity

Cisco ASR 9001 is designed to meet:

●  IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)

●  IEC/EN-61000-4-3: Radiated Immunity (10V/m)

●  IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)

●  IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)

●  IEC/EN-61000-4-5: Signal Ports (1kV)

●  IEC/EN-61000-4-5: Surge DC Port (1kV)

●  IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)

●  IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)

●  IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations

●  EN 50121-4: Railway EMC

Safety

Cisco ASR 9001 is designed to meet:

●  UL/CSA/IEC/EN 60950-1

●  IEC/EN 60825 Laser Safety

●  ACA TS001

●  AS/NZS 60950

●  FDA: Code of Federal Regulations Laser Safety

Quality Certifications

Q&A

Questions & Answers

What are common troubleshooting steps for the Cisco ASR-9001 Chassis?

Common steps include verifying power connections, checking interface configurations, and reviewing system logs for errors.

What accessories are available for the Cisco ASR-9001 Chassis?

Accessories include rack mounting kits, power supply modules, and high-speed interfaces. Refer to the accessory catalog for specific options.

How does the Cisco ASR-9001 Chassis compare to similar products?

The Cisco ASR-9001 Chassis provides a balance of performance, scalability, and cost-effectiveness, making it a competitive choice against similar products like the Juniper MX Series.

Can the Cisco ASR-9001 Chassis support my growing network needs?

Yes, the Cisco ASR-9001 Chassis is designed for scalability, allowing you to add additional modules and increase capacity as your network grows.
