AR2201-48FE Overview

Huawei AR G3 AR2200 series router AR2201-48FE uses a multi-core CPU and non-blocking switching structure to provide industry-leading system performance and scalability to meet current and future business needs. AR2201-48FE integrates 48 Fast Ethernet 10/100 ports, 2 Gigabit Ethernet ports (RJ-45 or SFP) and 1 expansion slot which can greatly meet the branch high-density Ethernet access requirements. The routing and switching integration device can simultaneously achieve the functionality of the access switches and branch router combination. Moreover, it can reduce device failure point and network maintenance difficulty.

Quick Specs

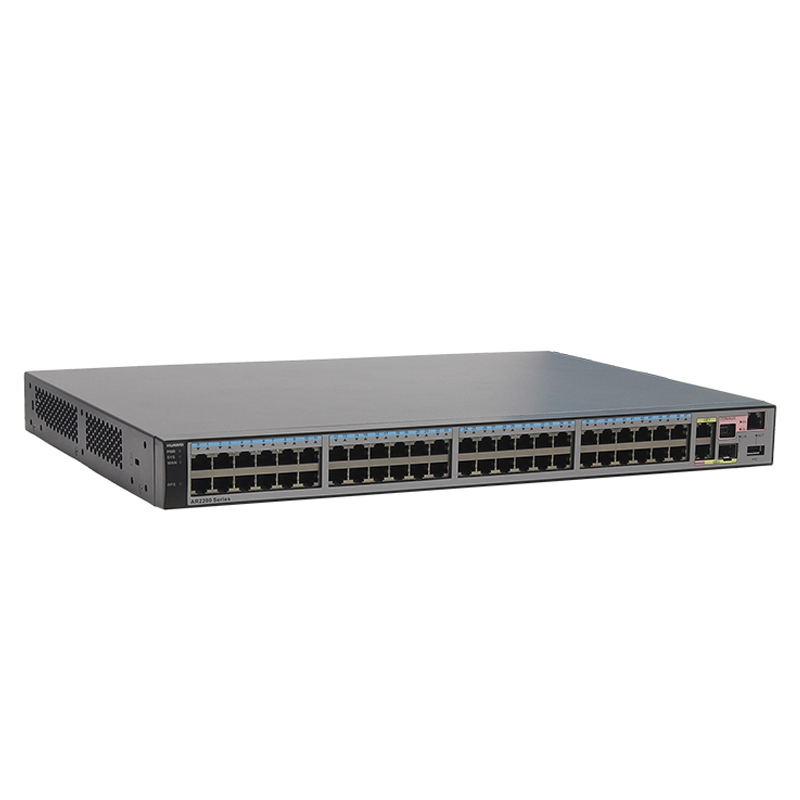

Figure 1 shows the appearance of AR2201-48FE.

AR2201-48FE

Table 1 shows the Quick Specs.

Product Code

AR2201-48FE

Services Interfaces

WAN interfaces: 1 GE electrical interface and 1 GE combo interface

LAN interfaces: 48 × 10/100M auto-sensing Ethernet electrical interfaces

Expansion Card Slots

1

Memory

512 MB

Flash

512 MB

Power module type

Built-in AC power module

Fan type

Built-in fans

Dimensions (W x D x H)

44.2 cm x 31.49 cm x 4.36 cm

Pack Weight

5.8 Kg

Software Version

V200R003C00 and later

Product Details

Figure 2 shows the front panel of AR2201-48FE.

AR2201-48FE Front Panel

Note:

①

48 × 10/100M auto-sensing Ethernet electrical interfaces

④

GE electrical interface

②

GE combo ports

⑤

Mini USB console Port

③

USB interfaces (host)

⑥

RJ-45 Console Port

· The Mini USB interface and console interface cannot be used at the same time.

Figure 3 shows the back panel of AR2201-48FE.

AR2201-48FE Back Panel

Note:

①

Extended card slot

④

Power switch

②

RPS power socket

⑤

AC power jack

③

Ground point

⑥

Jack for power cable locking strap

The Optical Transceivers

Table 2 shows the recommended optical transceivers of the Services Interfaces.

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)

eSFP-FE-LX-SM1310

Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

Compare to Similar Item

Table 3 shows the comparison between AR2201-48FE and AR2202-48FE.

Model

AR2201-48FE

AR2202-48FE

Services Interfaces

WAN interfaces:

1 GE electrical interface,

1 GE combo interface



LAN interfaces: 48 × 10/100M auto-sensing

Ethernet electrical interfaces

WAN interfaces:

1 GE electrical interface,

1 GE combo interface,

1 SA interface,

1 E1 interface



LAN interfaces: 48 10/100M auto-sensing

Ethernet electrical interfaces

Expansion Card Slots

1

1

Memory

512 MB

512 MB

Flash

512 MB

512 MB

Get more information

Do you have any question about the Huawei AR2201-48FE?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

AR2201-48FE Specification

AR2201-48FE Specifications

Type

AR2201-48FE,2GE WAN(1GE Combo),1 USB,48FE LAN,60W AC Power

Software Version

V200R003C00 and later

Dimensions (W x D x H)

442.0 mm x 314.9 mm x 43.6 mm

Memory

512 MB

Flash

512 MB

Hard disk

None

Service and Router Unit (SRU)

Not supported

Network data encryption (SM1/2/3/4) card

Not supported

Management interface

Supported

Console interface (RJ45)

Supported

Console interface (Mini USB)

Supported

USB 2.0 interface (host)

Supported

USB 2.0 interface (OTG)

None

Micro SD card (default)

Not supported

Antenna interfaces

None

Service interfaces (standard configuration)

WAN interfaces: 1 GE electrical interface and 1 GE combo interface

LAN interfaces: 48 10/100M auto-sensing Ethernet electrical interfaces

Interface number

LAN interfaces: FE0-FE47

Extended slots

1

Power module type

Built-in AC power module

Rated voltage range

100 V AC/240 V AC, 50 Hz/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

RPS150

Supported

PoE

Not supported

Maximum PoE power for PDs

None

PoE+ interfaces

None

Weight

4.5 kg (9.92 lb)

Mounting brackets

Standard configuration

Operating temperature

0°C to 45°C (32°F to 113°F)

Operating altitude

0-4000 m (0-13123 ft.)

Fan type

Built-in fans

Heat dissipation mode

Forcible air cooling

Installation mode

Rack mounting

Quality Certifications

Q&A

Questions & Answers

What are the common troubleshooting steps for the AR2201-48FE?

Common steps include power cycling, checking cable connections, updating firmware, and resetting the device to factory settings if needed.

What accessories are available for the Huawei AR2201-48FE?

Accessories include power cables, mounting brackets, and additional network cables, which can be purchased separately for enhanced flexibility.

How does the Huawei AR2201-48FE compare to similar products?

The AR2201-48FE offers a competitive edge with its high port density and cost-efficiency compared to similar models from competitors like Cisco 2900 Series.

How do I configure VLANs on the Huawei AR2201-48FE?

VLAN configuration can be done via the router's web interface, allowing you to segment network traffic effectively. Detailed steps are available in the device manual.
