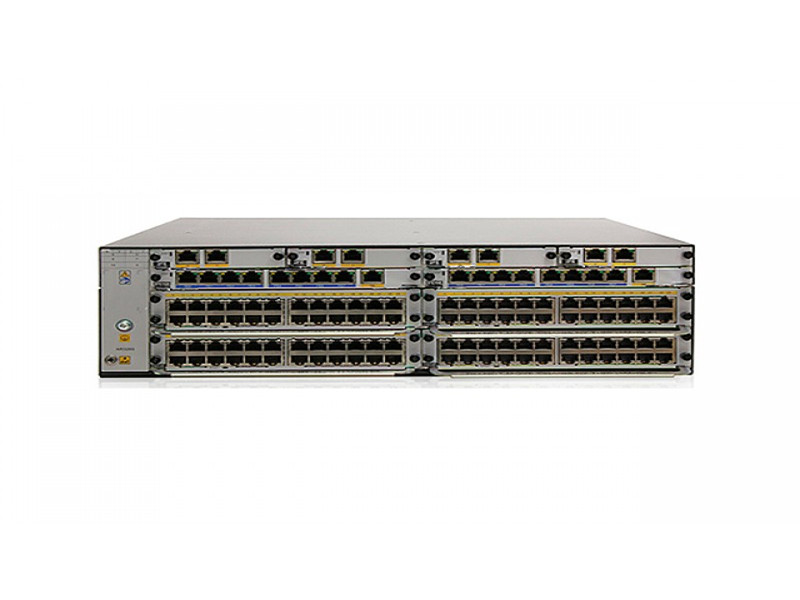

AR0B0037BA, Huawei AR3670 Router, 7 service slots/2 power slots/No fan

Name: AR0B0037BA, Huawei AR3670 Router, 7 service slots/2 power slots/No fan
SKU: AR0B0037BA
Price: 1686 USD
Availability: OutOfStock
Rating: 4.8 (5 reviews)

Brand: Huawei
Model: AR0B0037BA

Rating:

96%

4.8/5.0

5 Reviews

11 Questions

$1,686.00

Price Alert

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Express Shipping to United States
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

AR0B0037BA, Huawei AR3670 Router, 7 service slots/2 power slots/No fan

100% Genuine Ready to Ship

$1,686.00

Overview

Huawei AR0B0037BA Overview

The Huawei AR0B0037BA AR3670 is a high-end enterprise router designed for large branch and campus aggregation. Delivering 4.5 Gbit/s service forwarding performance, it features 7 WSIC service slots and robust VPN, MPLS, and QoS capabilities to support converged data, voice, and video services. With up to 8 virtual machines, rich IPv4/IPv6 routing, integrated WLAN AC, and advanced security, this Huawei router is ideal for service providers and enterprises seeking scalable, virtualized WAN edge infrastructure.

Product Highlights

4.5Gbit/s

Routing Perf

7 WSIC

Service Slots

8 VMs

Virtual Apps

Product Components Breakdown

Front Panel of the Product:

①

Ground point

②

ESD jack

③

Seven WSIC slots

④

Two SIC slots

Rear Panel of the Product:

①

Two SRU slots

②

3G/LTE antenna interface

③

Two power module slots

Product Applications Scenarios

Enterprise Network

High 4.5 Gbit/s forwarding, rich VPNs, and granular QoS make it ideal for multi-branch enterprises, cutting WAN latency and simplifying centralized control.

Service Providers

MPLS, L3 VPN, CGN, and carrier-grade QoS enable providers to deliver profitable managed VPN and internet services with up to 50% higher edge density.

Cloud Services

Integrated virtualization and secure IPSec, GRE, and smart VPN support cloud on-ramp designs, reducing deployment time and improving resilience.

Product Features Comparison


Model	AR0B0037BA, Huawei AR3670 Router, 7 service slots/2 power slots/No fan	ME0B0BKP0830, Huawei ME60-X8 Router, Integrated chassis/4 DC power/High reliability	ME0P08BASD70, Huawei ME60-X8 Router, 2+1 200G SRU/4 DC Power/No Software	CR2M08BASD02, Huawei NE20E-S8 Router, 2×MPUE/2×DC Power/No Software
Brand	Huawei	Huawei	Huawei	Huawei
Routing Throughput	4.5 Gbit/s (Service Forwarding Performance)	n/a	n/a	n/a
Interface Configuration	7 WSIC, 2 SIC, 0–6 XSIC; 1 management GE; 2 USB 2.0; 1 mini-USB; 1 console	11 slots; OC-192/STM-64 POS; 100GE; 10GE; GE/FE; E3/CT3; CE1/CT1	11 slots; OC-192/STM-64 POS; 100GE; 10GE; GE/FE; E3/CT3; CE1/CT1	2 MPUs; 2 NSPs; 8 PICs; 40GE; 10GE; GE/FE; POS; E1/CE1
Supported Protocol	IPv4/IPv6 routing, MPLS, VPN, multicast, WLAN AC, LAN L2 features	IPv4, IPv6, MPLS, BRAS, L2, QoS, CGN, DAA	IPv4, IPv6, MPLS, BRAS, L2, QoS, CGN, DAA	IPv4/IPv6 routing, L2, L2/L3 VPN, multicast, QoS, reliability, security
VPN Capability	IPSec, GRE, DSVPN, L2TP, smart VPN	DAA, NAT444, NAT64, VPN NAT, DS-Lite	DAA, NAT444, NAT64, VPN NAT, DS-Lite	NAT, IPSec, GRE, NetStream
Integrated Features	WLAN AC, QoS, security (ACL, firewall, 802.1x, AAA), management (Web NMS, SNMP, NTP, CWMP)	BRAS, L2TP, QoS, CGN, DAA	BRAS, L2TP, QoS, CGN, DAA	Clock sync, QoS, reliability (NSR, GR, BFD, FRR), OAM, multicast

Optional Add-ons

Model Number	Description
CR5D00LMXF70	Huawei NE9000 48×10GE SFP+ LPUI-480 line processing card for high-density 10G uplinks.
CR5DLPUFE070	Huawei CR5 Series 200G flexible LPUF-200 line card to expand forwarding capacity.
NECM000AOC00	Huawei NE05E-SL outdoor router with GE optical ports for rugged access aggregation.

Quality Certifications

Specification

Huawei AR0B0037BA Specification

Model

AR0B0037BA

Brand

Huawei

Service Forwarding Performance

4.5 Gbit/s

SIC Slots

WSIC Slots (default/maximum**)

7/8

XSIC slots (default/maximum**)

0/6

Management Port

One Ethernet port

USB 2.0 Ports

Mini-USB Port

Auxiliary or Console Port

Hard Disk

1TB

Memory (default/maximum)

8GB/24GB

Flash

8GB

Virtual Machines

8 (Based on VM, the customers can install Windows OS or Linux OS)

Maximum Power

700W per power supply (dual power supplies supported)

AC Power Supply

100V to 240V

Power Frequency

50/60 Hz

Dimensions (W x D x H)

442mm x 470mm x 130.5mm

Ambient Temperature

0°C to 45°C

Environment Relative Humidity

5% to 95% (non-condensing)

Basic Functions

ARP, DHCP, NAT, and sub-interface management

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio frequency management (802.11a/b/g/n), WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, and more

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMP鑱?v1/v2/v3, IGMP snooping v1/v2/v3, PIM SM, PIM DM, and MSDP

MPLS

LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, and smart VPN

QoS

DiffServ, MPLS QoS, priority mapping, CAR, traffic shaping, congestion avoidance (IP or DSCP priority-based WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), HQoS, FR QoS, SAC, and hardware QoS

Security

ACL, firewall, 802.1x authentication, MAC address authentication, web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP anti-attack, URPF, IP source guard, DHCP snooping, CPCAR, blacklist, attack source tracing, and state-approved algorithms (SM1, SM2, SM3 SCB2 algorithms)

Management and Maintenance

Upgrade management, device management, web NMS, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, USB-based deployment, Barcode Scanning, and command line

Weight

21.78 kg
