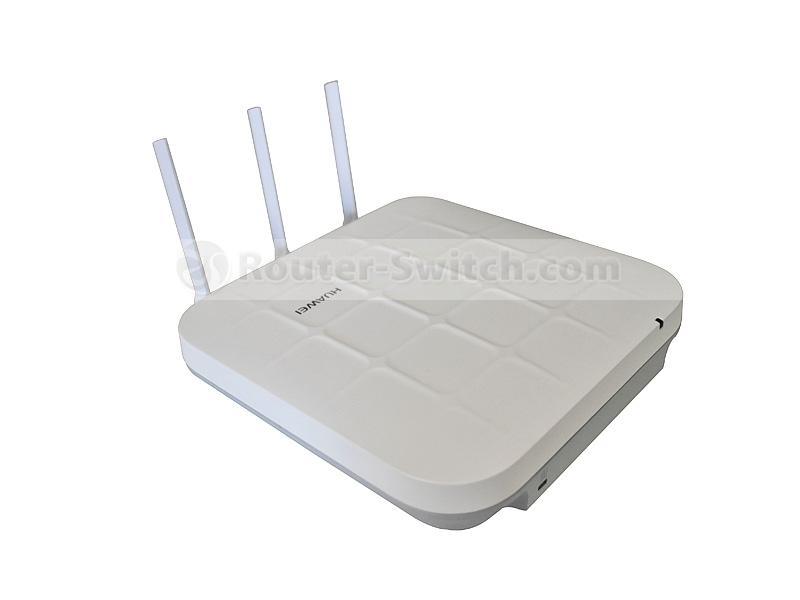

AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter

Name: AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter
SKU: AP5130DN-USA
Price: 541 USD
Availability: OutOfStock
Rating: 5 (2 reviews)

Brand: Huawei
Model: AP5130DN-USA

Rating:

100%

5/5.0

2 Reviews

13 Questions

$541.00

Price Alert

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Express Shipping to United States
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter

100% Genuine Ready to Ship

$541.00

Overview

Huawei AP5130DN-USA Overview

The Huawei AP5130DN-USA is an indoor enterprise-class access point designed for high-density wireless coverage in United States deployments. With dual-band 802.11ac, 3x3 MIMO, and built-in antennas delivering 2.4 GHz and 5 GHz coverage, it supports up to 256 concurrent users for offices, education, and hospitality. Flexible DC or PoE power input simplifies installation for distributors and SMB integrators, while IP41 protection, wide temperature tolerance, and optimized receiver sensitivity ensure reliable service for business end users.

Product Highlights

1,300Mbps

Data Rate

256

Users Max

20dBm

Tx Power

Product Applications Scenarios

Enterprise Network

AP5130DN-USA delivers stable dual-band Wi-Fi for offices and campuses, supporting up to 256 clients per AP to reduce cabling costs and simplify large-scale wireless LAN deployments.

Cloud Services

With high 802.11ac throughput and PoE support, this access point provides reliable edge connectivity to cloud apps, improving user experience and cutting remote branch rollout time.

Edge & IoT

IP41 protection, wide temperature range, and adjustable transmit power make it suitable for indoor edge and IoT gateways, enhancing coverage while keeping power usage under 12.95W.

Product Features Comparison


Model	AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter	AIR-CAP3502I-E-K9, Cisco 3500 AP, Wireless Access Point, 802.11a/g/n, CleanAir, Internal Antenna	AIR-CAP3501I-E-K9, Cisco 3500 Series Access Point, 802.11n Wi-Fi/Integrated Antenna/CleanAir	AIR-AP1042-SK9-5
Brand	Huawei	Cisco	Cisco	Cisco
Wi-Fi Standard	n/a	802.11a/g/n	802.11g/n	802.11a/g/n
Maximum Data Rate	802.11ac data rate (5GHz): 6.5 Mbit/s to 1,300 Mbit/s	Maximum Data Rate: 300 Mbps	Maximum Data Rate: 300 Mbps	Maximum Data Rate: 300 Mbps
Supported Frequency Band	n/a	Frequency Band: 2.4 GHz and 5 GHz	Frequency Band: 2.4 GHz and 5 GHz	Frequency Bands: 2.4 GHz, 5 GHz
Client Capacity	Maximum Number of Concurrent Users: ≤ 256	n/a	n/a	n/a
Network Interface	n/a	Ethernet Ports: 1 x 10/100/1000 Base-T	Interfaces: 1 x 10/100/1000 Ethernet port	Ethernet Ports: 1 x 10/100/1000 Ethernet

Optional Add-ons

Model Number	Description
AP5030DN-S	Huawei AP5030DN-S indoor 802.11ac access point for scalable campus extensions
Huawei PoE Switch S5700-28P-LI	Huawei S5700-28P-LI PoE switch to power and aggregate multiple AP5130DN-USA units
Huawei AC6005-8	Huawei AC6005-8 WLAN access controller for centralized management of Huawei indoor APs

Quality Certifications

Specification

Huawei AP5130DN-USA Specification

Model

AP5130DN-USA

Brand

Huawei

Dedicated Area

United States

Dimensions (H × W × D)

8.7in. x 8.7in. x 2.1in. (220mm x 220mm x 53mm)

System memory

256MB DDR2 32MB flash memory

Power input

DC 12V ± 10% PoE Power: -48V DC PoE function in compliance with IEEE 802.3af and 802.3at

Maximum power consumption

12.95W Note: Actual maximum power consumption depends on local laws and regulations.

Operating temperature

14 o F to 122 o F (-10 o C to 50 o C)

Storage temperature

-40 o F to 158 o F (-40 o C to 70 o C)

Humidity

5% to 95% (Non-condensing)

Waterproof grade

IP41

Altitude

-196.9 ft. to 13,123.4 ft. (-60m to 5,000m)

Antenna Type

Built-in

Antenna Gain

2.4G: 3.5 dBi 5G: 4 dBi

Maximum Number of Concurrent Users

≤ 256

Maximum Transmit Power

20 dBm Note: You can adjust the transmit power from the maximum to 20 dB in 1 dB increments. Actual transmit power depends on local laws and regulations

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n data rate (2.4GHz and 5GHz): 6.5 Mbit/s to 600 Mbit/s 802.11ac data rate (5GHz): 6.5 Mbit/s to 1,300 Mbit/s

Receiver Sensitivity

2.4GHz 802.11b (CCK) -96 dBm @ 1 Mbit/s -91 dBm @ 2 Mbit/s -92 dBm @ 5.5 Mbit/s -88 dBm @ 11 Mbit/s

2.4 GHz 802.11g (non-HT20) -91 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -89 dBm @ 12 Mbit/s -86 dBm @ 18 Mbit/s -83 dBm @ 24 Mbit/s -80 dBm @ 36 Mbit/s -76 dBm @ 48 Mbit/s -74 dBm @ 54 Mbit/s

2.4GHz 802.11n (HT20) -91 dBm @ MCS0 -88 dBm @ MCS1 -86 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -74 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -88 dBm @ MCS9 -86 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15

Weight

3 kg

Get more information

Discover unbeatable prices and fast shipping for the AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter . Access the detailed AP5130DN-USA, Huawei AP5130DN, Indoor Access Point, 3x3 MIMO, External Antenna, US Adapter datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

How does the Huawei AP5130DN-USA compare with similar products?

The AP5130DN-USA offers strong performance with dual-band support, making it competitive with similar models like Cisco's 1800 series, but at a potentially lower cost.

What are common troubleshooting steps for the Huawei AP5130DN-USA?

Common troubleshooting steps include checking antenna connections, verifying power supply, updating firmware, and resetting the device to factory settings.

How to use the Huawei AP5130DN-USA for optimal performance?

For optimal performance, position the AP5130DN-USA in a central location, use both frequency bands, and ensure firmware is up to date.

Is router-switch.com a reliable distributor?

Absolutely. As a multi-brand authorized distributor, router-switch.com is directly certified by leading technology manufacturers. We guarantee 100% genuine products, competitive pricing, and full manufacturer warranties and support.

Learn More

There are so many APs in the market, how can I select?

Consider your budget, and what you need AP to do. Please learn more details here .

What is the difference between Huawei wireless and Cisco wireless?

These two brands of wireless products focus on different areas.Please learn more details here .

How cost-effective is the Huawei AP5130DN-USA?

The Huawei AP5130DN-USA offers a competitive price-performance ratio, providing robust features aimed at general indoor use with 11ac support.

What are the key features of the Huawei AP5130DN-USA?

The Huawei AP5130DN-USA features 11ac technology, 3x3 double frequency support, external antennas, and an AC/DC adapter optimized for US standards.

What are the application scenarios for the Huawei AP5130DN-USA?

The Huawei AP5130DN-USA is ideal for indoor environments such as offices, schools, and hospitals requiring stable and fast wireless connectivity.

How do I install the Huawei AP5130DN-USA?

Installation involves mounting the device, connecting the external antennas, and plugging in the AC/DC adapter to a US compatible power source.

Does the Huawei AP5130DN-USA need software upgrades?

Yes, regular firmware updates from Huawei are recommended to ensure optimal performance and security of your AP5130DN-USA.

Are there alternative products to the Huawei AP5130DN-USA?

Alternatives within Huawei's range include the AP4050DN and other vendors' solutions like the Cisco Aironet 1800 series.

What accessories come with the Huawei AP5130DN-USA?

The Huawei AP5130DN-USA bundle includes the external antennas and an AC/DC adapter specifically for US use.
