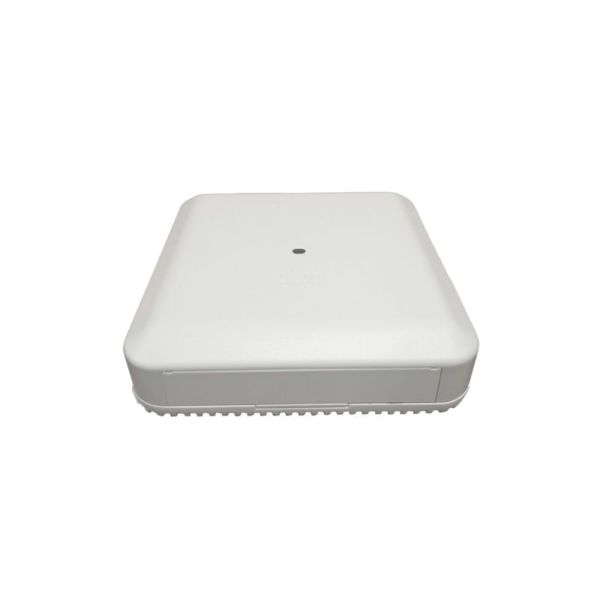

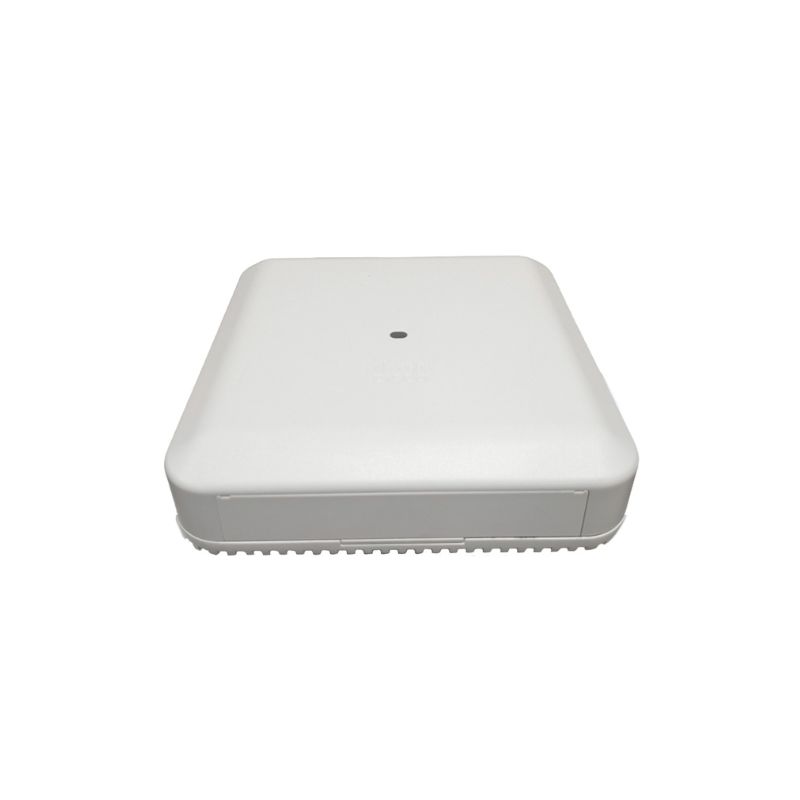

AIR-AP3802I-A-K9, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/Multigigabit Ethernet

AIR-AP3802I-A-K9 Specifications

Regulatory Domain

S (S regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz;, 11 channels

- 5.745 to 5.825 GHz; 5 channels

Software and supported wireless LAN controllers

Cisco Unified Wireless Network Software Release 8.2.MR1 or later

Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

Cisco IOS XE Software Release 16.3 – Target Q3 CY2016

Cisco Catalyst 3850 Series and 3650 Series Switches

802.11n version 2.0 (and related) capabilities

4x4 MIMO with three spatial streams

Maximal ratio combining (MRC)

802.11n and 802.11a/g beamforming

20- and 40-MHz channels

PHY data rates up to 450 Mbps (40 MHz with 5 GHz).

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 dynamic frequency selection (DFS)

Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities

4x4 MIMO with three spatial streams

MRC

802.11ac beamforming

20-, 40-, and 80-MHz channels

PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

CSD support

802.11ac Wave 2 capabilities

4x4 MU-MIMO with three spatial streams

MRC

802.11ac beamforming

20-, 40-, 80, 160-MHz channels

PHY data rates up to 5.2 Gbps

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

CSD support

Integrated antenna

Flexible radio (either 2.4 GHz or 5 GHz)

2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth

5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°

Dedicated 5-GHz radio

5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

Interfaces

2 Ethernet ports

100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

CAT 5e cabling

Higher-quality 10GBASE-T (CAT 6/6a) cabling

100/1000BASE-T autosensing (RJ-45 - AUX port)

Management console port (RJ-45)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm),

Weight

4.6 lb (2.09 kg)

Input power requirements

802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE)

802.3at power injector (AIR-PWRINJ6=)

50W power supply (AIR-PWR-50=)

Power draw

30W at the PSE with all features enabled except for the USB 2.0 port

34W at the PSE with the USB 2.0 port enabled

Environmental

Cisco Aironet 3800i

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

Operating temperature: 32° to 104°F (0° to 40°C)

Operating humidity: 10% to 90% percent (noncondensing)

Operating altitude test: 40˚C, 9843 ft.

System memory

1024 MB DRAM

256 MB Flash

Warranty

Limited lifetime hardware warranty
