Overview

A903-RSP1B-55 Overview

Cisco A903-RSP1B-55 is the Cisco ASR 903 Route Switch Processor. Cisco ASR 900 Series RSP modules contain separate control plane and data plane components. These include the main control plane CPU for the Cisco IOS Software operating system and platform control software. The data-plane packet processing and traffic management is performed by the Carrier Ethernet application-specific integrated circuit (ASIC).

Quick Specs

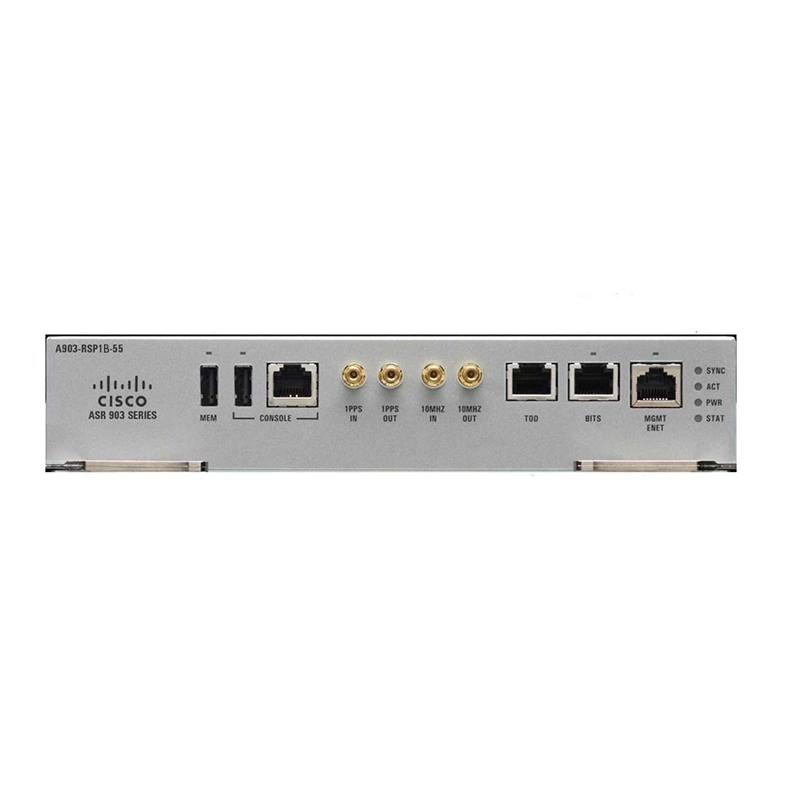

Figure 1 shows the appearance of A903-RSP1B-55.

Cisco A903-RSP1B-55 Appearance

Table 1 shows the quick specs.

Part Number

A903-RSP1B-55

Power consumption of chassis with 2 power supplies, 1 fan tray, and 1 RSP

210W

RSP memory (DRAM)

4 GB

Flash memory (storage)

2 GB

Service scale

Large

Maximum interface throughput

55 Gbps

IP version 4 performance

65 Mpps

IP version 6 performance

65 Mpps

Shipment package size in inches (L x W x H)

14.38 x 14.38 x 6.25

Shipment package weight

6.2 lbs.

Module Compatibility

Table 2 shows the recommended models.

Category

Model

Ethernet interface module compatibility

A900-IMA1X

A900-IMA8S

A900-IMA8T

TDM and ATM interface module compatibility

A900-IMA16D

A900-IMA4OS

A900-IMASER14A/S

Compare to Similar Items

Table 3 shows the comparison.

Part Number

A903-RSP1A-55

A903-RSP1B-55

Power consumption of chassis with 2 power supplies, 1 fan tray, and 1 RSP

195W

210W

RSP memory (DRAM)

2 GB

4 GB

Flash memory (storage)

2 GB

2 GB

Get more information

Do you have any question about the A903-RSP1A-55

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

A903-RSP1B-55 Specification

A903-RSP1B-55 Specifications

Power consumption of chassis with 2 power supplies, 1 fan tray, and 1 RSP

A903-RSP1B-55: 210W

RSP memory (DRAM)

A903-RSP1B-55: 4 GB

Flash memory (storage)

2 GB

Service scale

A903-RSP1B-55: Large

Ethernet interface module compatibility

A900-IMA1X

A900-IMA8S

A900-IMA8T

TDM and ATM interface module compatibility

A900-IMA16D

A900-IMA4OS

A900-IMASER14A/S

Maximum transmission unit (MTU)

Configurable MTU of up to 9216 bytes, for bridging on Gigabit Ethernet, 10 and 100 Gigabit Ethernet

Maximum interface throughput

55 Gbps

IP version 4 performance

65 Mpps

IP version 6 performance

65 Mpps

Management ports

Copper 10/100/1000Base-T LAN management port - RJ45 connector port Console/Aux RS232 serial ports - RJ45 connector port Console - USB 2.0 type A receptacle connector port

Timing ports

BITS simultaneous input and output (J1/T1/E1) - RJ48 connector port

1 pps input - mini-coax connector port 1 pps output - mini-coax connector port 2.048/10 MHz input - mini-coax connector port 2.048/10 MHz output - mini-coax connector port

External USB flash memory

Mass storage - USB 2.0 type A receptacle connector port

Shipment package size in inches (L x W x H)

14.38 x 14.38 x 6.25

Shipment package weight

6.2 lbs.

MTBF at 104ºF (40ºC) operating temperature

300,000 hours

Maximum Single-Dimensional Service Scale

MAC addresses

256,000

Bridge domains

4,000

Ethernet flow points

8,000

L3 interfaces

1,000

IPv4 routes

80,000

IPv6 routes

40,000

Multicast routes

8,000

MPLS VPN

1,000

MPLS labels

64,000

EoMPLS tunnels per system

8,000

VPLS instances

4,000

Queues

32,000

Classifications

24,000

Ingress policers

16,000

Class maps

4,000

Queue counters (packet and byte)

128,000

Policer counters (packet and byte)

96,000

IPv4 ACL entries

16,000

BFD sessions

511

IEEE 802.1ag (CFM) at 3.3ms interval

256
