Name:

816815-B21

Model:816815-B21 - HPE ProLiant DL580 Gen9 Server
Brand: HPE
Detail:
HPE ProLiant DL580 Gen9 E7-8890v4 4P 256GB-R P830i/4G 534FLR-SFP 1500W RPS Server S-ERVER
Rating:
100%
5/5.0
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.

You may also be interested in the following product(s)

816815-B21

HPE ProLiant DL580 Gen9 E7-8890v4 4P 256GB-R P830i/4G 534FLR-SFP 1500W RPS Server S-ERVER

Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

816815-B21 Overview

The HPE ProLiant DL580 Gen9 Server is the 4S enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies. HPE-816815-B21 Supporting Intel® Xeon® E7-4800/8800 v4/v3 processors, the DL580 Gen9 Server offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen 3.0 slots). The DL580 Gen9 Server has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications. Whether needed for highly virtualized or cloud based deployments, with intelligence and simplicity of automated management with HPE OneView and HPE iLO4 your business can achieve agile and lower cost infrastructure management.

Quick Specs

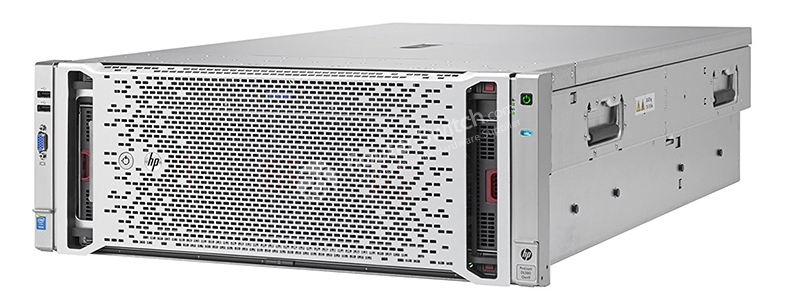

Figure 1 shows the appearance of HPE 816815-B21.

HPE-816815-B21-Appearance

Table 1 shows the Quick Specs of HPE 816815-B21.

Product Code

HPE-816815-B21

Processor

  • ● Intel® Xeon® E7-8890 v4 (24 core, 2.2 GHz, 60MB, 165W)

Number of processors

2

Processor core available

24

Processor cache

60MB L3

Processor speed

2.2GHz

Form factor (fully configured)

4U

Form factor chassis

Rack

Product dimensions (H x W x D)

17.48 x 29 x 6.88in

Product Details

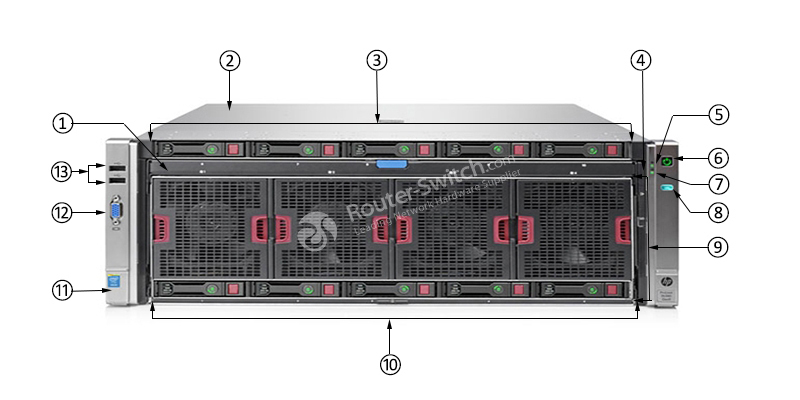

Figure 2 shows the front view of HPE 816815-B21.

HPE-816815-B21-Front

Note:

CPU Memory Drawer Handle

Quick removal access panel

Drive bays 6-10

Systems Insight Display

Health Status LED

Power On/Standby button and system power LED button

NIC status LED

UID button

Fans 1-4

Drive bays 1-5

Discovery services connectors

Video connector

USB connectors (2)

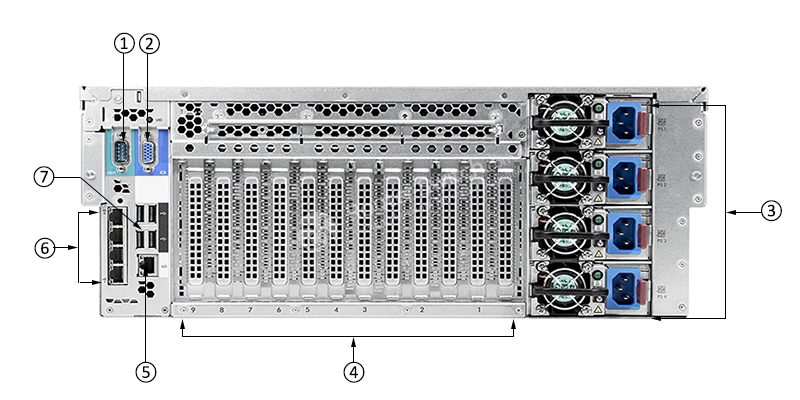

Figure 3 shows the ports and slots on the back panel of HPE 816815-B21.

HPE-816815-B21-Rear-Panel

Note:

Serial connector

Video connector

Power Supplies 1-4

PCI expansion slots 1-9

Dedicated iLO connector

FlexibleLOM ports 1-4

USB connectors (4)

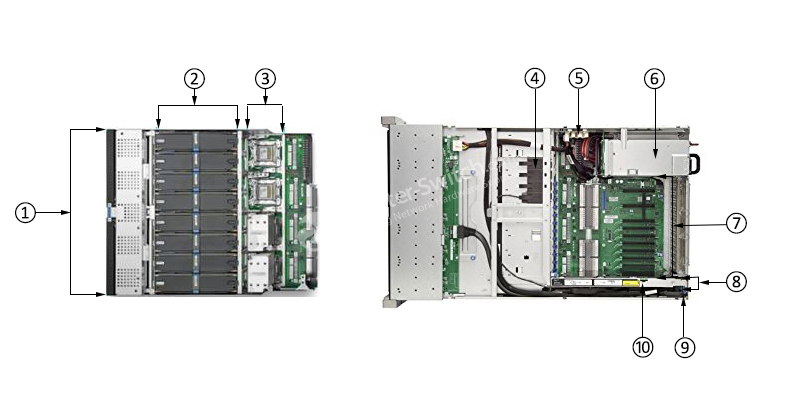

Figure 4 shows the inside view of HPE 816815-B21.

HPE-816815-B21-Inside

Note

CPU Memory Drawer

Memory Cartridges 1-8

Processors 1-4

FBWC capacitor slots 1-4

I/O Card Auxiliary Power Connectors

Power Supplies

PCI expansion slots 1-9

Flexible LOM connector

SPI board (houses iLO chip, FBWC, microSD slot, 2x USB slots, TPM, top SAS backplane connector)

MicroSD Slot

The Accessories

Table 2 shows the recommended elements for the HPE 816815-B21.

Product number

Model

Description

E7Y63A

E7Y63A - Storage Networking for HPE Server

HPE StoreFabric 84E 4-port 8Gb Fibre Channel Host Bus Adapter

726724-B21

726724-B21 - Enterprise Memory for HPE Server

HPE 64GB (64GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

825111-B21

825111-B21 - Networking Adapters for HPE Server

HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter

794525-B21

794525-B21 - Networking Adapters for HPE Server

HPE FlexFabric 10Gb 2-port 556FLR-T Adapter

727054-B21

727054-B21 - Networking Adapters for HPE Server

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

727055-B21

727055-B21 - Networking Adapters for HPE Server

HPE Ethernet 10Gb 2-port 562SFP+ Adapter

Compare to Similar Items

Table 3 shows the comparison between HPE 816815-B21 and HPE 793310-B21.

Model

816815-B21

793310-B21

Processor

  • ● Intel® Xeon® E7-8890 v4 (24 core, 2.2 GHz, 60MB, 165W)
 Intel® Xeon® E7-4850 v3 (14 core, 2.2 GHz 35MB 115W)

Number of processors

2

2

Processor core available

24

14

Processor cache

  • ● 60MB L3
 35MB L3

Processor speed

  • ● 2.2GHz
 2.2GHz

Get more information

Do you have any question about the HPE 816815-B21 Sever

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

816815-B21 Specification

HPE 816815-B21 Specification

Processor

  • Intel® Xeon® E7-8890 v4 (24 core, 2.2 GHz, 60MB, 165W)

Number of processors

2

Processor core available

24

Processor cache

60MB L3

Processor speed

2.2GHz

Form factor (fully configured)

4U

Form factor chassis

Rack

Power supply type

  • (4) 1500W Platinum Plus hot plug power supply kit Common Slot

Expansion slots

(9) PCIe 3.0

For detail descriptions reference the QuickSpecs

Memory, maximum

6TB

Up to 96 DIMM slots with 8 memory cartridges

Memory, standard

  • 256GB (16x16GB) RDIMM

Memory slots

  • 96 DIMM slots

Memory type

DDR4 SmartMemory

Memory protection features

MCA Recovery Execution Path

Patrol and Demand Scrubbing

Memory Lock Step Mode

Memory Online Spare Mode

Advanced ECC and DIMM Address/Parity Protection

Included hard drives

(5) SFF SAS

Supports up to (10) SFF SAS/SATA/SSD hot plug drives

Optical drive type

External support only

System fan features

4 (8 rotors, N+1 redundant)

Network controller

  • 10Gb 534FLR-SFP+ FlexFabric Adapter 2 Ports per controller

Storage controller

  • (1) Smart Array P830i/4GB FBWC

Product dimensions (H x W x D)

17.48 x 29 x 6.88in

Weight

116.5

Infrastructure management

  • iLO Management (standard), Intelligent Provisioning (standard), HP OneView Advanced (standard)

Quality Certifications

Q&A

Questions & Answers

How can I troubleshoot common issues with the HPE ProLiant DL580 Gen9 server?

Common issues can often be resolved by checking the server logs, ensuring all firmware is up-to-date, and consulting the HPE support website for troubleshooting guides.

What accessories are available for the HPE ProLiant DL580 Gen9?

Accessories include additional memory modules, storage drives, network adapters, and redundant power supplies to enhance performance and redundancy.

How does the HPE ProLiant DL580 Gen9 compare to other rack servers?

The DL580 Gen9 excels with its robust processing power, extended memory capacity, and redundant components, making it a premier choice among enterprise servers.

How does the power consumption of the HPE ProLiant DL580 Gen9 impact operational costs?

The 1500W redundant power supply is designed for efficiency, helping to minimize operational costs while providing reliable power for high-performance tasks.
