Overview

765819-001 Overview

HPE ProLiant ML350 Gen9 Server delivers a class-leading combination of performance, expandability, manageability, reliability and serviceability making it the choice for enterprise data centers, expanding SMBs and remote offices of larger businesses. ML350 Gen9 Server HPE 765819-001 leverages the Intel® Xeon® E5-2600 v3 and v4 processors with up to 21%1 performance gain, plus the latest HPE DDR4 SmartMemory offering up to 23%2 performance increase. Additional support for 12 Gb/s SAS, embedded 4x1GbE NIC with a broad range of graphics and compute options. Manage your HPE ProLiant Server in any IT environment by automating the most essential server lifecycle management tasks: deploy, update, monitor, and maintain with ease. The ML350 Gen9 Server is ideal for enterprise IT infrastructure to mission critical applications.

Quick Spec

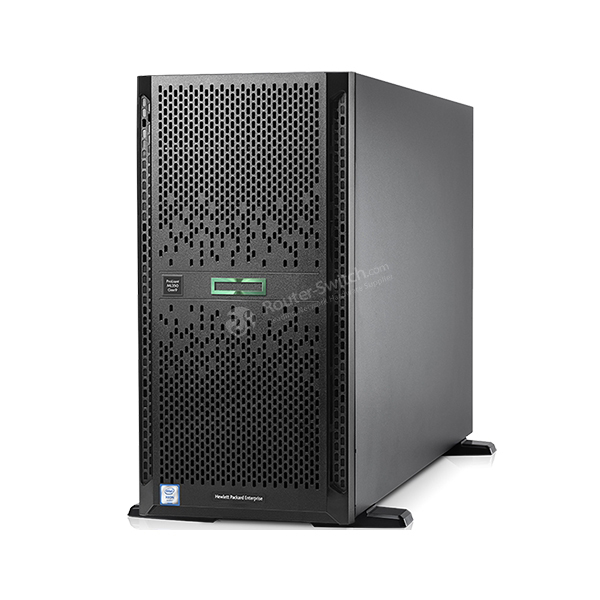

Figure 1 shows the appearance of HPE 765819-001.

HPE-765819-001-Appearance

Table 1 shows the quick spec.

Product Code

765819-001

Processor

  • ● Intel® Xeon® E5-2609 v3 (6 core, 1.9 GHz, 15MB, 85W)

Number of processors

  • ● 1 or 2

Processor core available

  • ● 6

Processor cache

  • ● 15MB L2

Processor speed

  • ● 9GHz

Form factor (fully configured)

  • ● 5U

Product dimensions (H x W x D)

18.27 x 8.62 x 30.28 in

Weight

66.14 lb

Product Details

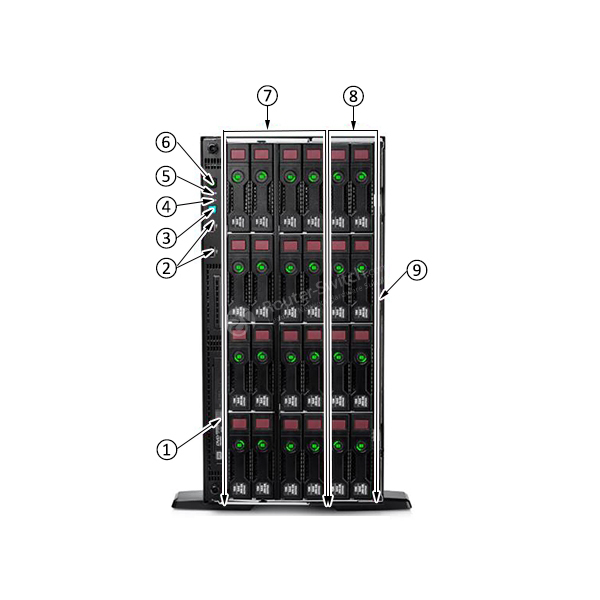

Figure 2 shows the front panel of HPE 765819-001

HPE-765819-001-Front

Note:

Slim Height Drive Bay for Optional Slim Height SATA DVD-ROM or DVD RW Optical Drive

Two (2) USB 2.0 connectors

Unit ID LED button

Health LED

NIC Activity LED

Power On /Standby button & system power LED button

Optional HDD cage Drive Cage Bays (Rack shown with blanks. Tower shown with 16 LFF Optional drives)

Eight (8) SFF (Rack)/LFF (Tower) SAS/SATA HDD cage

Serial label pull tab

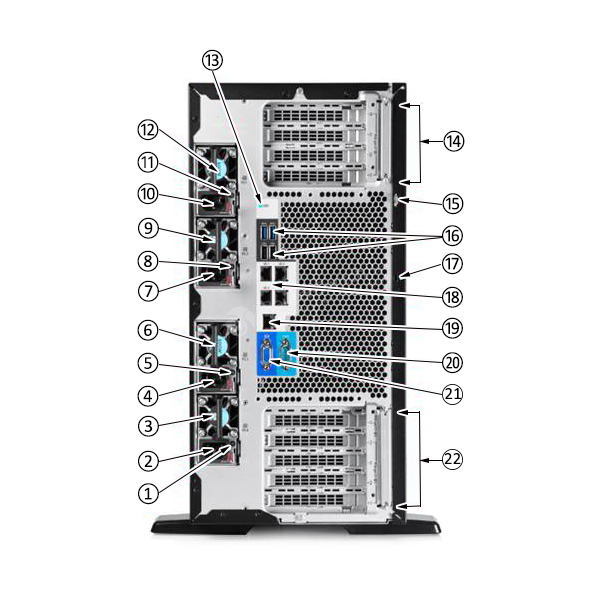

Figure 3 shows the back panel of HPE 765819-001.

HPE-765819-001-Rear

Note:

Power supply Power LED

Power supply Power connection

HPE Flexible Slot 4 Power Supply (Optional - 500w Power Supply shown)

Power supply Power connection

Power supply Power LED

HPE Flexible Slot 3 Power Supply (Optional - 500w Power Supply shown)

Power supply Power connection

Power supply Power LED

HPE Flexible Slot 2 Power Supply (Optional - 500w Power Supply shown)

Power supply Power connection

Power supply Power LED

HPE Flexible Slot 1 Power Supply (Standard Entry Model - 500w Power Supply shown)

Unit ID LED

PCI Slots (Slots 1-4) Slot 1 and 3 can support Optional GPU

Padlock

USB 3.0 Connectors (2) top & USB 2.0 Connectors (2) bottom

Kensington Security Lock

Embedded 4 x 1GbE Network Adapter

Dedicated iLO Connector

Serial Connector

Video Connector

PCI Slots (Slots 5-9) requires Optional second processor–Slot 6 and 8 can support Optional GPU

The Accessories

Table 2 shows the recommended elements for the HPE 765819-001.

Product number

Description

872487-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

846524-B21

HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

819201-B21

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

872485-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

877784-B21

HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

Compare to Similar Items

Table 3 shows the comparison between HPE 765819-001 and HPE 741064-B21.

Product Code

765819-001

741064-B21

Number of processors

  • ● 1 or 2

2

Processor core available

  • ● 6

10

Processor cache

  • ● 15MB L2

25MB L3

Processor speed

  • ● 9GHz

1.7GHz

Get more information

Do you have any question about the HPE 765819-001 Sever

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

765819-001 Specification

HPE 765819-001 Specification

Processor

  • Intel® Xeon® E5-2609 v3 (6 core, 1.9 GHz, 15MB, 85W)

Number of processors

  • 1 or 2

Processor core available

  • 6

Processor cache

  • 15MB L2

Processor speed

  • 1.9GHz

Form factor (fully configured)

  • 5U

Form factor chassis

  • Tower or Rack

Power supply type

  • (1) 500W Platinum hot plug power supply kit Flex Slot

Expansion slots

  • (9) PCIe
  • For detail descriptions reference the QuickSpecs

Memory, maximum

  • 1.5 TB
  • Based on 64GB DDR4 RDIMM

Memory, standard

  • 8GB (1x8GB) RDIMM

Memory slots

  • 24 DIMM slots

Memory type

  • 1R x4 PC4-2133P-R

Included hard drives

  • LFF None ship standard
  • Supports up to (8) LFF SATA/SSD hot plug drives

Optical drive type

  • Optional

System fan features

  • 3 Fans Non-Redundant

Network controller

  • 1Gb 331i Ethernet Adapter 4 Ports per controller

Storage controller

  • (1) Dynamic Smart Array B140i

Product dimensions (H x W x D)

18.27 x 8.62 x 30.28 in

Weight

66.14 lb

Infrastructure management

  • iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), HP Insight Control (optional)

Quality Certifications

Q&A

Questions & Answers

What are some common troubleshooting steps for the HPE ProLiant ML350 Gen9 E5-2609v3?

Common troubleshooting includes verifying all connections, checking for error codes on the front panel, and consulting the HPE ProLiant ML350 Gen9 service guide for specific issues.

What accessories are available for the HPE ProLiant ML350 Gen9 E5-2609v3?

Available accessories include additional RAM, storage drives, RAID controllers, and backup power supplies compatible with the HPE ProLiant ML350 Gen9 series.

How does the HPE ProLiant ML350 Gen9 E5-2609v3 compare to other similar servers?

The HPE ProLiant ML350 Gen9 E5-2609v3 offers robust performance and high scalability, often outperforming other tower servers in its class, such as the Dell PowerEdge T630.

How do I use the HPE ProLiant ML350 Gen9 E5-2609v3 for virtualization purposes?

Configure the HPE ProLiant ML350 Gen9 with virtualization software like VMware or Hyper-V and allocate hardware resources efficiently to run multiple virtual machines.
