Model: WS-C3850-12S-E Catalyst 3850 Switch
Detail: Cisco Catalyst WS-C3850-12S-E Switch Layer 3 - 12 * 10/100/1000 SPF Fibric ports - IP service - wireless controller - managed- stackable
Price: US$12,000.00
List Price: US$12,000.00
Condition: Brand New Sealed
US$ 12,000.00 Brand New Sealed
Product Overview

Overview (WS-C3850-12S-E)

Cisco next generation Catalyst WS-C3850-12S-E is stackable enterprise level switch and integrated with 12 SFP ports in IP service feature set. It enables sophisticated layer2-4 switching capability by providing the optimal solution for access layer and aggregation layer.

Quick Specs

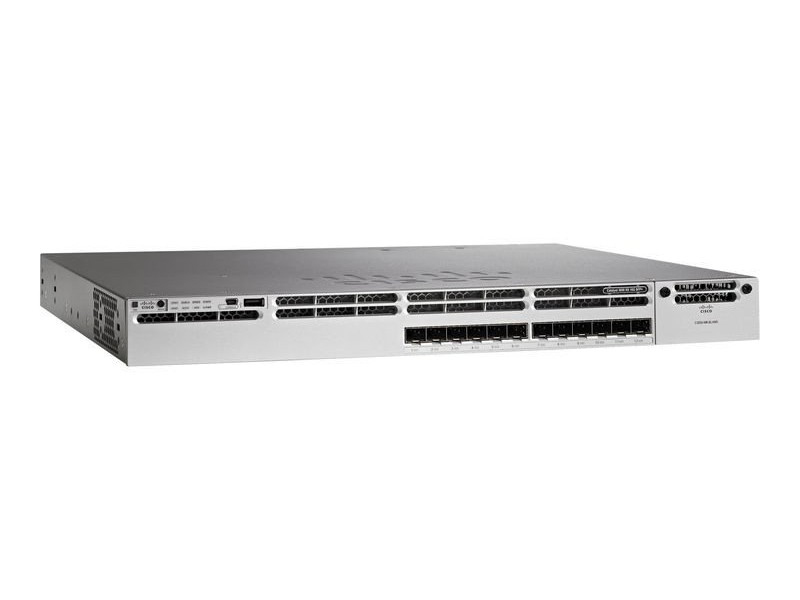

Figure 1 shows the appearance of the Cisco Catalyst WS-C3850-12S-E.

WS-C3850-12S-E

Table 1 shows the Quick Specs.

Product Code

WS-C3850-12S-E

Enclosure Type

1 RU

Feature Set

IP Service

Network SFP uplink module selection

C3850-NM-4-1G

C3850-NM-2-10G

Ports

12 x 10/100/1000 SFP Optical ports

Maximum stacking number

9

Stack bandwidth

480 Gbps

Forwarding Performance

68.4 Mpps

Switching Capacity

68 Gbps

RAM

4 GB

Flash Memory

2 GB

Dimensions

44.5 cm x 45.0 cm x 4.45 cm

Product Details

Figure 2 shows the front panel of the Cisco 3850 series 12 ports switch.

WS-C3850-12S-E Front Panel

Note:

UID (blue beacon)

USB Type A storage port

Mode button

12 ports of SFP

Status LEDs

Network SFP uplink module slot

USB mini-Type B (console) port



·The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) and S-PWR (Stack Power).

·The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.

Figure 3 shows the back panel of the WS-C3850-12S-E switch.

WS-C3850-12S-E Back Panel

Note:

Ground connector

StackWise port connector

CONSOLE (RJ-45 console port)

StackPower connector

Fan module

Power supply modules

MGMT port



Figure 4 shows the StackWise-480 and StackPower connectors.

IP service feature set can only stack with other Catalyst 3850 Series IP service switches. Power stack capacity is supported by Cisco Stackpower technology to provide power redundancy among stacking members.

StackWise-480

The Modules, Licenses and Accessories

Table 2 shows some recommended modules,licenses and accessories of this switch.

Models

Description

C3850-NM-4-1G

Cisco 3850 Series 4 x 1GE Network Module

C3850-NM-2-10G

Cisco 3850 Series 2 x 10GE Network Module

PWR-C1-350WAC

Cisco 3850 Series Power Supply 350W AC

PWR-C1-350WAC/2

Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply

STACK-T1-50CM=

Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch

STACK-T1-1M=

Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch

Compare to Similar Items

Table 3 shows the comparison between WS-C3850-12S-E and WS-C3850-12S-S.

Models

WS-C3850-12S-S

WS-C3850-12S-E

Feature Set

IP Base

IP Service

Ports

12 ports of SFP Ethernet fiber connection with Flexible Netflow feature

12 ports of SFP Ethernet fiber connection with Flexible Netflow feature

Network SFP uplink module selection

C3850-NM-4-1G

C3850-NM-2-10G

C3850-NM-4-1G

C3850-NM-2-10G

Get more information

Do you have any question about the WS-C3850-12S-E?

Contact us now via Live Chat or cisco@router-switch.com.

Specification

Specification (WS-C3850-12S-E)

WS-C3850-12S-E Specification

model info:

WS-C3850-12S-E

enclosure type

Rack-mountable - 1U

Ports

12 x SFP ports

Network management Interface

● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

68Gbps

Maximum stacking number

9

Stack Bandwidth

480Gbps

Forwarding Performance

68.4Mpps

FNF entries

48,000 flows

Maximum VLANs IDs

1,000

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP per switch/stack

100

Number of wireless clients per switch/stack

2000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 20Gbps

Supported Aironet AP series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 network module slot and 1 power redundant slot

Network Modules Selection

● C3850-NM-4-1G: 4 x 1G uplinks network module
●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module

Stacking cable

●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable (recommended)

●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length

Power supply

PWR-C1-350WAC

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone(in Watts)

109.75 (Max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

17.7 Inches (45.0 cm)

Height

1.75 Inches (4.45 cm)

Weight

15.48 Pounds (7.02 Kg)

Rack Mounting Kit

optional

 MTBF in hours

315,840

Compliant Standards

● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3

System software / license

System software

IOS IP Service

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Access Point Licenses

●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

features

●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP

● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast  ●Dynamic Trunking Protocol (DTP) ● port CoS Trust

and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies

● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority

Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS

and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency

● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4  ● VRF-lite  ● PIM-SM/DM,

PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network security

● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)
● Bidirectional data support on a SPAN ● User authentication
● Private VLAN  ●Router and VLAN ACLs  ● complete identity and security
● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs
●  Bridge protocol data unit (BPDU) Guard
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security

Management

●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB
●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB
●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB
●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB
●CISCO-CIRCUIT-INTERFACE-MIB
●CISCO-ENTITY-VENDORTYPE-OID-MIB
●CISCO-CONTEXT-MAPPING-MIB
●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB
●CISCO-EIGRP-MIB
●CISCO-EMBEDDED-EVENT-MGR-MIB
●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB
●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB
●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB
●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB
●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB
●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB
●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB
●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB
●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB
●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB
●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB
●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB
●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB
●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB
●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB
●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB
●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB
●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB
●CISCO-SMART-INSTALL-MIB

●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB
●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB
●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB
●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB
●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB
●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB
●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB
●LLDP-MIB ●NOTIFICATION-LOG-MIB
●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB
●POWER-ETHERNET-MIB ●RMON2-MIB
●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB
●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB
●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB
●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB
●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB
●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB
●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB
●CISCO-LWAPP-CLIENT-ROAMING-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB
●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB
●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB
●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB
●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB
●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB
●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB

Technical Support and Services

● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services

Environmental Ranges

With AC power supply Operating environment and altitude

Operating temperature up to 5000 ft (1500 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception up to 5000 feet (1500 m)

23ºF to 122ºF (-5ºC to 50ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 113ºF (-5ºC to 45ºC)

With DC power supply Operating environment and altitude (NEBS)

Operating temperature up to 6000 ft (1800 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Operating temperature up to 13,000 ft (4000m)

23ºF to 95ºF (-5ºC to 35ºC)

Short-term exception up to 6,000 feet (1800 m)

23ºF to 131ºF (-5ºC to +55ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 122ºF (-5ºC to +50ºC)

Short-term exception up to 13,000 feet (4000 m)

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45º)

Storage environment

 -40ºF to 160ºF (-40ºC to 70ºC)

Operating altitude

Up to 13,000 Feet (Up to 4000 Meters)

Storage altitude

Up to 15,000 Feet (Up to 4573 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

Shipping Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa Discover American
Express
JCB Wire Transfer eCheck WestUnion
Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews 10 item(s)

In time reply

Always got very fast reply from Nancy. Cool.

55
by / (Posted on 7/28/2016)
T-shirt as my gift

Got a T-shirt as my gift. Nice.

55
by / (Posted on 7/26/2016)
12 Port GE SFP

This switch comes with 12 Port GE SFP , suitable for my needs.

55
by / (Posted on 7/22/2016)
Pleasant experience

It was pleasant to deal with Router-swith.com. Will back for more business.

45
by / (Posted on 7/15/2016)
More orders

Pleasure working with this company. Many orders already. Like their service.

55
by / (Posted on 6/21/2016)
Leadtime

Leadtime is a little longer than expected. Luckily, price and product are good.

55
by / (Posted on 8/27/2015)
Entrega rápida

Entrega rápida, funcionó como se esperaba

55
by / (Posted on 2/20/2015)
Nice switch with nice feature set

Nice switch,has a very nice feature set,worth every penny.

55
by / (Posted on 9/11/2014)
worked perfectly

worked perfectly,5 stars!

55
by / (Posted on 8/14/2014)
Быстрая доставка

Быстрая доставка, работали, как и ожидалось

55
by / (Posted on 5/21/2014)

You may also be interested in the following product(s)

Product Tags

Subscription

Register now to get updates on promotions and coupons

Stay Connected

Router-switch.com is neither a partner of nor an affiliate of Cisco Systems. Logos remain the property of the corresponding company.
Copyright @ 2002-2017 Router-switch Ltd. | HongKong Yejian Technologies Co., Ltd | All Rights Reserved.
