S5700-28C-PWR-EI-AC

5 2
5/5.0
2 Review(s)
Model: S5700-28C-PWR-EI-AC Huawei S5700 Series Switch
Detail: S5700-28C-PWR-EI-AC(24 Ethernet 10/100/1000 PoE+ ports,with 1 interface slot,with 500W AC power supply)
Price: $1,908.00
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Newark, NJ, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 1,908.00 In stock Brand New Sealed
OR

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (S5700-28C-PWR-EI-AC)

Huawei S5700-28C-PWR-EI-AC is one of the S5700 Series Switches. S5700 Series Switches provide highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers.

Quick Specs

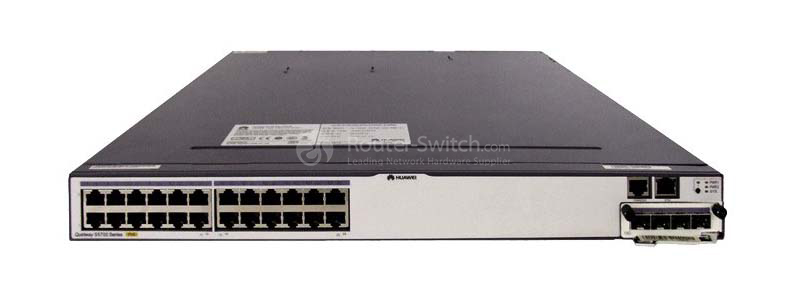

Figure 1 shows the appearance of S5700-28C-PWR-EI-AC.

 the appearance of S5700-28C-PWR-EI-AC

Table 1 shows the Quick Specs.

Product Code

S5700-28C-PWR-EI-AC

Fixed Interfaces

24 x 10/100/1,000 Base-T

Extended Slots

 two extended slots, one for an uplink sub-card and the other for a stack card

Subcards supported

4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard

Power Supply

Double hot-swappable AC power supplies

Forwarding Performance

 96 Mpps

Switching Capacity

256 Gbit/s

Memory (RAM)

256 MB

Flash

32 MB

RPS

Not supported

PoE

Supported

power consumption

< 842W(PoE: 740W)

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Weight

Empty: ≤ 5 kg (11.02 lb)

Fully loaded: ≤ 8.5 kg (18.74 lb)

Product Details

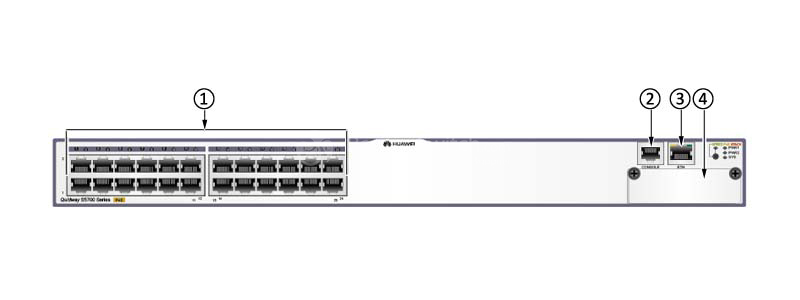

Figure 2 shows the front panel of S5700-28C-PWR-EI-AC.

the front panel of S5700-28C-PWR-EI-AC

Note:

Twenty-four PoE+ 10/100/1000BASE-T ports

One console port

ETH management port

Front card slot

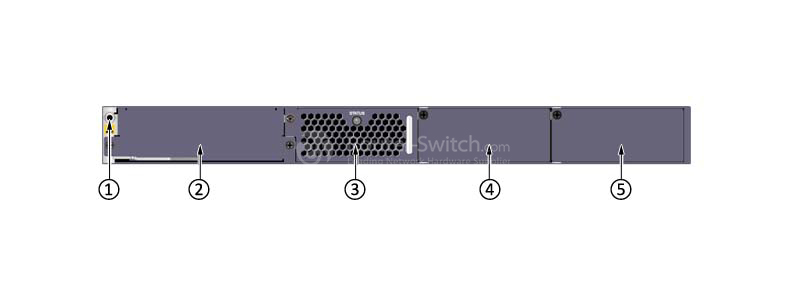

Figure 3 shows the back panel of S5700-28C-PWR-EI-AC.

the back panel of S5700-28C-PWR-EI-AC

Note:

ESD jack

Rear card slot

Fan slot

Power module slot 2

Power module slot 1

The Modules, Cards

Table 2 shows the recommended elements for the S5700-28C-PWR-EI-AC.

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)

GE Copper Transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module(100m, RJ45)

10GE Interface Card

ES5D000X2S00

2 10 Gig SFP+ interface card(used in S5700SI and S5700EI series

Compare to Similar Items

Table 3 shows the comparison of S5700-28C-PWR-EI-AC and S5700-52C-EI.

Product Code

S5700-28C-PWR-EI-AC

S5700-52C-EI

Fixed Interfaces

24 x 10/100/1,000 Base-T

48 x 10/100/1,000 Base-T ports

Extended Slots

 two extended slots, one for an uplink sub-card and the other for a stack card

 two extended slots, one for an uplink sub-card and the other for a stack card

Subcards supported

4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard

4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard

Power Supply

Double hot-swappable AC power supplies

Double hot-swappable AC/DC power supplies

Forwarding Performance

 96 Mpps

132 Mpps

Switching Capacity

256 Gbit/s

256 Gbit/s

Memory (RAM)

256 MB

256 MB

Flash

32 MB

32 MB

RPS

Not supported

Not supported

PoE

Supported

Not supported

power consumption

< 842W(PoE: 740W)

< 88W

Comparison between LI, SI, EI and HI

Huawei S5700 Series Enterprise Switches provides LI (Lite), SI (Standard), EI (Enhanced) and HI (Hyper) models for users. There are some differences among these four versions.

Click this PDF to know more.

Comparison of Huawei S5700-LI, SI, EI and HI Series Switches.pdf.

Get More Information

Do you have any question about the S5700-28C-PWR-EI-AC?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (S5700-28C-PWR-EI-AC)

S5700-28C-PWR-EI-AC Specifications

Switching Capacity

256 Gbit/s

Forwarding Performance

96 Mpps

Fixed Ports

24 x 10/100/1,000 Base-T ports

Extended Slots

S5700C provides two extended slots, one for an uplink subcard and the other for a stack card.

MAC Address Table

IEEE 802.1d compliance

32K MAC

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

Reliability

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS (G.8032)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection

E-Trunk

IP Routing

Static routing, RIPv1/v2, RIGng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, and ECMP

IPv6 Features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

IPv4 and IPv6 dual stack

6to4 tunnel, ISATAP tunnel, and manually configured tunnel

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM

MSDP

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, PQ, WRR + PQ, and DRR + PQ queue scheduling algorithms

WRED (supported by the S5710-EI)

Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source

IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Management and Maintenance

iStack

MAC Forced Forwarding (MFF)

Virtual cable test

SNMP v1/v2c/v3

RMON

Web NMS

System logs and alarms of different levels

NetStream (supported by S5710-EI)

sFlow

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating Environment

Operating temperature: 0°C to 50°C

Relative humidity: 5% to 95% (non-condensing)

Input Voltage

AC:

Rated voltage range: 100V to 240V AC, 50 Hz/60 Hz Maximum voltage range: 90V to 264V AC, 50 Hz/60 Hz

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Power Consumption

< 842W

(PoE: 740W)
