H807ADPD

Huawei SmartAX MA5600T 64-port ADSL2+ over POTS Service Board

Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

H807ADPD Overview

The H807ADPD board is a 64-port ADSL2+ over POTS Service Board. It works with the ADSL terminal unit-remote end (ATU-R) through the ADSL2+ port to access 64 channels of ADSL2+ service.

Quick Specs

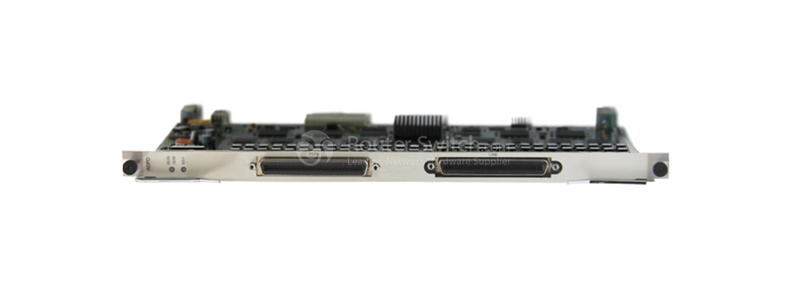

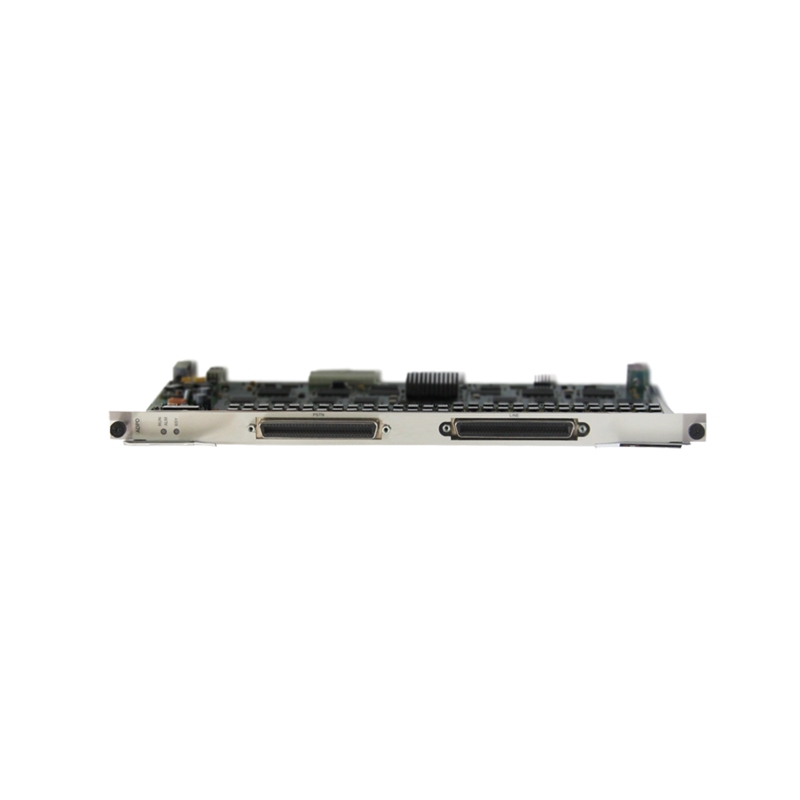

Figure 1 shows the appearance of H807ADPD.

H807ADPD Appearance

Table 1 shows the Quick Specs.

Product Code

H807ADPD

Part Number

03023ANX

Description

64 PORTS ADSL BOARD

Discount Category

ADSL2+ Board

Product Line

Networking

Sub Product Family

FTTx and Cable

Product Series

MA5603T(F01S300)

UOM

PCS

Net Dimension(D*W*H mm)

237*22*395

Typic Power(W)

30.5

Compare to Similar Items

Table 2 shows the comparison of H807ADPD, H807ADPE and H807ADPM.

Specifications

H807ADPD

H807ADPE

H807ADPM

Applicable Line

ADSL2+ over POTS

ADSL2+ over POTS

ADSL2+ over POTS

Physical Layer Retransmission (G.INP)

Yes

Yes

Yes

ADSL2+ Bonding

Yes (Supported by V800R009C00 and later)

Yes (Supported by V800R010C00 and later)

Yes (Supported by V800R010C00 and later)

INM

Yes

Yes

Yes

SELT

Yes

Yes

Yes

MELT

No

No

Yes

Built-in Splitter

No

Yes (600-ohm pure impedance splitter)

No

Temperature Query and High-temperature Alarm

Yes

Yes

Yes

Automatic Power Shutdown in Case of a High Temperature

Yes

Yes

Yes

Get more information

Do you have any question about the H807ADPD

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

H807ADPD Specification

H807ADPD Specifications

Applicable Line

ADSL2+ over POTS

Physical Layer Retransmission (G.INP)

Yes

ADSL2+ Bonding

Yes (Supported by V800R009C00 and later)

INM

Yes

SELT

Yes

MELT

No

Annex Type

G.992.1 Annex A

G.992.3 Annex A/L/M (EU32-EU64)

G.992.5 Annex A/M (EU32-EU64)

Flexible Configuration Modes

Supports RFC2662, RFC4706, and TR165. (Users with a super user account can log in to the system and run the switch adsl mode to command in diagnose mode to switch between the configuration modes. The default configuration mode is RFC2662. Considering the current development trend, it is recommended that you use TR165, which is more flexible than the others)

Connector

Champ 64-pin

Built-in Splitter

No

Temperature Query and High-temperature Alarm

Yes

Automatic Power Shutdown in Case of a High Temperature

Yes

Quality Certifications

Q&A

Questions & Answers

What accessories are compatible with the H807ADPD Service Board?

Compatible accessories include network cables, line splitters, and backup power supplies, specifically designed for Huawei SmartAX series devices.

Is the H807ADPD the best choice compared to similar products?

The H807ADPD stands out for its integration with Huawei MA5600T systems, offering robust performance and reliability at a competitive price point.

Are there alternative products to the H807ADPD?

Alternatives include other Huawei service boards like the H805ADPD, depending on specific network and service requirements.

How does the H807ADPD compare with other ADSL2+ service boards?

The H807ADPD offers superior connectivity over POTS lines with 64 ports, ensuring high performance and seamless integration with the SmartAX MA5600T.
