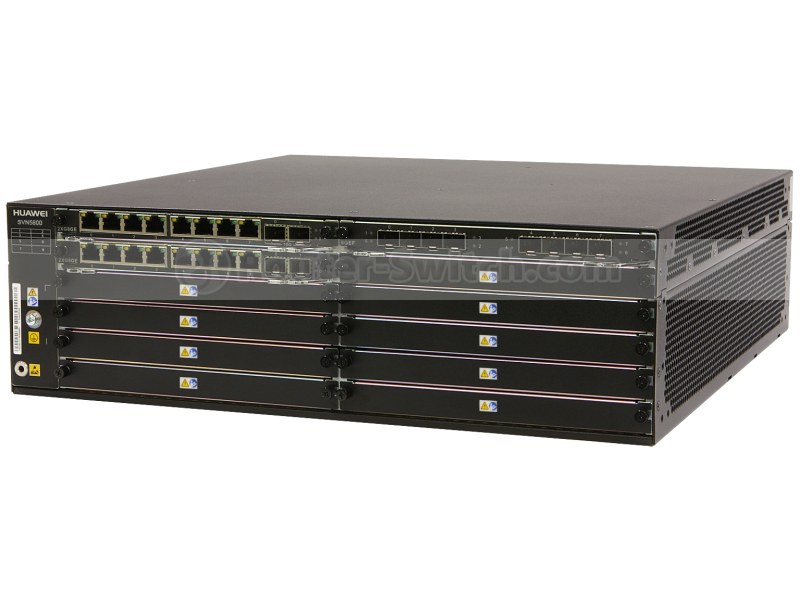

SVN5880-C-AC, Huawei SVN5880 Series Security Gateway, 16GE(RJ45)+8GE(SFP)+4x10GE(SFP+), 16G Memory, 2AC Power

SVN5880 Specifications

Maximum number of concurrent SSL VPN users

100,000

Maximum number of concurrent SSL VPN connections

150,000

IPSec VPN throughput

18Gbit/s

Concurrent IPSec VPN connections

15,000

Maximum number of virtual gateways

512

I/O

Fixed ports

4*10GE+16GE+8SFP

Expansion slots

5WSIC

Expansion card types

WSIC: 2×10GE（SFP+）+8×GE（RJ45)，8×GE（RJ45），8×GE（SFP），4×GE（RJ45）BYPASS

Device Specifications

Form Factor

3U

Dimensions (H x W x D) mm

130.5 x 442 × 415

Weight (fully configured)

22KG

HDD

Optional, 300 GB hot-swappable dual hard disks (RAID1)

Redundant power supply

Standard

AC power supply

100 V to 240 V

Maximum power

700W

Operating environment

Temperature: 0°C to 45°C (without hard disk)/5°C to 40°C (with hard disk), humidity: 10% to 90%

Non-operating environment (storage environment)

Temperature: –40ºC to 70ºC, humidity: 5% to 95% (non-condensing)

Functions

SSL VPN

Supports Web proxy, file sharing, port forwarding, network extension, and multimedia tunnel.

Supports access to resources, such as Web, Client/Server application program, and multimedia resources, in IPv4 or IPv6

VPN types

SSL VPN, IPSec VPN, GRE VPN, L2TP VPN, MPLS VPN

User authentication

Supports authentication methods, such as local password (VPNDB), AD, RADIUS, LDAP, SecurID, X.509 digital certificate, USB key, SMS, device ID, and CAPTCHA authentication. Supports hierarchical authentication, single sign-on (SSO), and software keyboard.

Authentication control

Supports role-based, external group mapping, and dynamic authorization based on the security level of the terminals

Provides fine-grained access control based on application, IP address, port, and URL and is able to identify over 6000 application protocols

Supported operating systems

Supports Android, Windows, Mac OS, iOS, Linux, Symbian, and BlackBerry OS.

Terminal security

Supports terminal/host security check, cache cleaning, terminal ID binding, and DDoS attack defense at application and network layers.

Virtual gateway

Supports multiple virtual gateways on one physical gateway to allow for service and network virtualization and independent authentication, authorization, services, and resources management

Agile feature

Bandwidth management, intelligent ISP link selection

Network security

Supports access control, NAT, and attack defense.

Network protocols

Supports IPv4 and IPv6

Deployment and availability

Supports transparent, routing, and hybrid deployment modes and active/active and active/standby high availability (HA)
