What are the main features of the SVN5630-AC?

The SVN5630-AC features 4 GE RJ45 ports, 2 GE combo ports, 4GB memory, and an AC power supply.

Is the SVN5630-AC cost-effective for large enterprise networks?

Yes, the SVN5630-AC provides high performance and scalability at a competitive price.

What are the common application scenarios for the SVN5630-AC?

The SVN5630-AC is ideal for enterprise campuses, data centers, and branch offices.

How do I install the SVN5630-AC?

The SVN5630-AC installation involves rack mounting, connecting network cables, and configuring via the console.

Does the SVN5630-AC require regular upgrades?

Yes, firmware and software updates are recommended for optimal performance and security.

Are there alternative products to the SVN5630-AC?

Alternatives include similar models like the Huawei S5700 series depending on specific needs.

What accessories are available for the SVN5630-AC?

Accessories include additional power supplies, mounting kits, and SFP modules.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SVN5630-AC, Huawei SVN5630 Series Security Gateway, 4GE(RJ45)+2GE Combo/4GB Memory/1 AC Power

Brand: Huawei
Model: SVN5630-AC

$7,267.00

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Express Shipping to United States
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

SVN5630-AC, Huawei SVN5630 Series Security Gateway, 4GE(RJ45)+2GE Combo/4GB Memory/1 AC Power

100% Genuine Ready to Ship

$7,267.00

Overview

Huawei SVN5630-AC Overview

The Huawei SVN5630-AC is an enterprise-class security gateway designed to deliver scalable remote access and VPN consolidation for distributed organizations. With support for up to 1,500 concurrent SSL VPN users and rich IPSec VPN capabilities, this Huawei firewall simplifies secure connectivity for branch offices, mobile staff, and third parties. Flexible authentication, agile bandwidth management, and multi-tenant virtual gateways help Asian, European, African, and North American businesses protect critical applications while optimizing WAN resources.

Product Highlights

1,500

SSL Users

400Mbps

IPSec Thp

Virt Gates

Product Components Breakdown

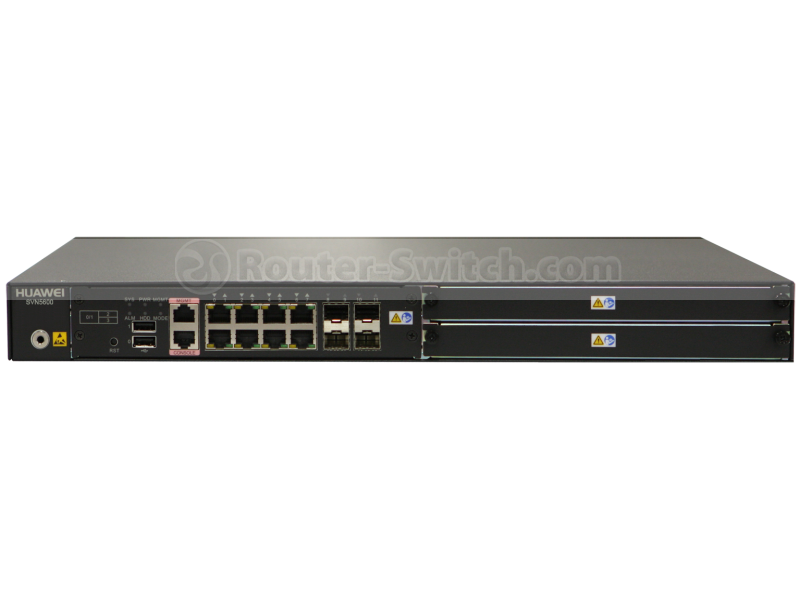

Front Panel of the Product:

①

Fixed interface board

②

Expansion slots

Rear Panel of the Product:

①

Hard disk combination(optional)

②

Power module

③

Slot for optional power module

Product Applications Scenarios

Enterprise Network

Centralizes secure remote access for branches and mobile users, reducing MPLS reliance and cutting deployment and management costs by up to 30% for mid-sized enterprises.

Cloud Services

Provides IPSec and SSL VPN aggregation to hybrid clouds, simplifying tenant onboarding and cutting onboarding time by up to 40% for regional service integrators.

Security & Privacy

Combines strong user authentication and terminal checks to enforce zero-trust-style access, reducing unauthorized access incidents by up to 50% in regulated sectors.

Product Features Comparison


Model	SVN5630-AC, Huawei SVN5630 Series Security Gateway, 4GE(RJ45)+2GE Combo/4GB Memory/1 AC Power	USG6350-AC, Huawei USG6350 Firewall, 4GE+2GE Combo/4GB Memory/1 AC Power	SVN5660-AC, Huawei SVN5660 Series Security Gateway, 8GE(RJ45)+4GE(SFP)/4GB Memory/1 AC Power	NIP5100D-AC-01, Huawei NIP5100D Firewall, 4GE+4GE Combo/4G Memory/2 AC Power
Brand	Huawei	Huawei	Huawei	Huawei
Firewall Throughput	n/a	Firewall Throughput (packets per second): 0.6Mpps	n/a	n/a
VPN Performance	IPSec VPN throughput: 400Mbps	IPsec VPN Throughput (AES-128 + SHA1, 1,420-byte): 800 Mbit/s	IPSec VPN throughput: 3 Gbit/s	n/a
Interface Type and Count	Fixed ports: 4 x GE + 2 x Combo; Expansion slots: 2 x WSIC; Expansion card types: WSIC: 1 x 10GE (SFP+), 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), 4 x GE (RJ45, BYPASS)	Fixed Interfaces: 4 x GE (RJ45) + 2 x GE Combo; Expansion Slot: 2 x WSIC; Expansion I/O Options: WSIC: 2 x 10 GE (SFP+) + 8 x GE (RJ45); or 8 x GE (RJ45); or 8 x GE (SFP); or 4 x GE (RJ45) BYPASS; Maximum Number of Interfaces: 22 x GE (RJ45) + 4 x 10 GE (SFP+), or 18 x GE (SFP) + 4 x GE (RJ45)	Fixed ports: 8 x GE + 4 x SFP; Expansion slots: 2 x WSIC; Expansion card types: WSIC: 1 x 10GE (SFP+), 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), 4 x GE (RJ45, BYPASS)	Dedicated management interface: 1 x GE (RJ45); Fixed interface: 4 x GE (RJ45) 4 x GE (combo); Expansion slot: 3 x FIC; Expansion network interface: 4 x GE (RJ45) BYPASS 2 Line (LC/UPC) BYPASS 8 x GE (RJ45), 8 x GE (SFP) 2 x XE, 2 x XE + 8 GE
Concurrent Sessions	Maximum number of concurrent SSL VPN users: 1,500; Maximum number of concurrent SSL VPN connections: 5,000; Concurrent IPSec VPN connections: 4,000	Concurrent Sessions (HTTP 1.1): 2,000,000; New Sessions per Second (HTTP 1.1): 30,000; Concurrent SSL VPN Users (default/maximum): 100 / 500	Maximum number of concurrent SSL VPN users: 3,000; Maximum number of concurrent SSL VPN connections: 10,000; Concurrent IPSec VPN connections: 4,000	n/a
Security Features	SSL VPN features: Web proxy, file sharing, port forwarding, network extension, multimedia tunnel; VPN types: SSL VPN, IPSec VPN, GRE VPN, L2TP VPN, MPLS VPN; User authentication: Local password (VPNDB), AD, RADIUS, LDAP, SecurID, X.509 digital certificate, USB key, SMS, device ID, CAPTCHA; Authentication control: Role-based control, external group mapping, dynamic authorization; Terminal security: Terminal/host security check, cache cleaning, terminal ID binding, DDoS attack defense; Virtual gateway: Multiple virtual gateways; Agile features: Bandwidth management, intelligent ISP link selection; Network security: Access control, NAT, attack defense	URL Filtering Categories: More than 130; URL Filtering Database: Access to a cloud database of over 120 million URLs; Third-Party and Open-Source Ecosystem: Open APIs; Centralized Management via Huawei eSight and LogCenter; High Availability Configurations: Active/Active, Active/Standby	SSL VPN features: Web proxy, file sharing, port forwarding, network extension, multimedia tunnel; VPN types: SSL VPN, IPSec VPN, GRE VPN, L2TP VPN, MPLS VPN; User authentication: Local password (VPNDB), AD, RADIUS, LDAP, SecurID, X.509 digital certificate, USB key, SMS, device ID, CAPTCHA; Authentication control: Role-based control, external group mapping, dynamic authorization; Terminal security: Terminal/host security check, cache cleaning, terminal ID binding, DDoS attack defense; Virtual gateway: Supports multiple virtual gateways; Agile features: Bandwidth management, intelligent ISP link selection; Network security: Access control, NAT, attack defense	Server protection; Client protection; Infrastructure Protection; Device management; Log report monitor; Deployment and availability: IPS in in-line mode, IDS in off-line mode, hardware bypass cards, hot standby deployment

Optional Add-ons

Model Number	Description
SVN-HDD-300G	Huawei 300GB hot-swappable HDD for SVN5630/SVN5660/SVN5830 security gateways
SVN-WSIC-10GE	Huawei WSIC card with 1 x 10GE SFP+ and GE expansion for SVN5600/SVN5800 series
SVN-AC-170W-PSU	Huawei 170W AC power supply module compatible with SVN5630-AC gateway

Quality Certifications

Specification

Huawei SVN5630-AC Specification

Model

SVN5630-AC

Brand

Huawei

Maximum number of concurrent SSL VPN users

1,500

Maximum number of concurrent SSL VPN connections

5,000

IPSec VPN throughput

400Mbps

Concurrent IPSec VPN connections

4,000

Maximum number of virtual gateways

Fixed ports

4 x GE + 2 x Combo

Expansion slots

2 x WSIC

Expansion card types

WSIC: 1 x 10GE (SFP+), 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), 4 x GE (RJ45, BYPASS)

Form factor

Dimensions (H x W x D)

43.6mm x 442mm x 421mm

HDD

Optional, 300GB hot-swappable single hard disk

Redundant power supply

Optional

AC power supply

100 V to 240 V AC

Maximum power

170W

Operating environment

Temperature: 0°C to 45°C (without hard disk) / 5°C to 40°C (with hard disk); humidity: 10% to 90%

Non-operating environment

Temperature: -40°C to 70°C; humidity: 5% to 95% (non-condensing)

SSL VPN features

Web proxy, file sharing, port forwarding, network extension, multimedia tunnel; access to Web, client/server applications, and multimedia resources over IPv4 or IPv6

VPN types

SSL VPN, IPSec VPN, GRE VPN, L2TP VPN, MPLS VPN

User authentication

Local password (VPNDB), AD, RADIUS, LDAP, SecurID, X.509 digital certificate, USB key, SMS, device ID, CAPTCHA; supports hierarchical authentication, SSO, software keyboard

Authentication control

Role-based control, external group mapping, dynamic authorization based on terminal security level; fine-grained access control by application, IP address, port, and URL; identifies over 6,000 application protocols

Supported operating systems

Android, Windows, Mac OS, iOS, Linux, Symbian, BlackBerry OS

Terminal security

Terminal/host security check, cache cleaning, terminal ID binding, DDoS attack defense at application and network layers

Virtual gateway

Multiple virtual gateways on one physical gateway for service and network virtualization with independent authentication, authorization, service, and resource management

Agile features

Bandwidth management, intelligent ISP link selection

Network security

Access control, NAT, attack defense

Network protocols

IPv4 and IPv6

Deployment and availability

Transparent, routing, and hybrid deployment modes; active/active and active/standby high availability (HA)

Weight

15 kg
