S5700-28C-SI

Name: S5700-28C-SI
SKU: S5700-28C-SI
Price: 805 USD
Availability: OutOfStock
Rating: 5 (5 reviews)

End of Life

Skip to the beginning of the images gallery

Name:	S5700-28C-SI
Model:	S5700-28C-SI 02352341 Huawei Quidway S5700 Switch
Brand:	Huawei
Detail:	20 GE RJ45, 4 GE Combo,Dual Slots of Power, Single Slot of Flexible Card, Without Flexible Card
	Rating: 100% 5/5.0 5 Reviews 11 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$805.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed
Replacement:	S5720-28X-SI-AC

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

S5700-28C-SI

20 GE RJ45, 4 GE Combo,Dual Slots of Power, Single Slot of Flexible Card, Without Flexible Card

Price: US$805.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

S5700-28C-SI Overview

The S5700-28C-SI is gigabit Layer 3 Ethernet switch based on new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With 24 GE ports (10/100/1000Base-T) and 4 GE Combo ports, it provides a large switching capacity, high-density GE interfaces, and 10 GE uplink interfaces for users, applicable to various scenarios. The S5700-28C-SI integrates many advanced technologies in terms of reliability, security, and energy conservation in order to help enterprise customers build a next-generation IT network.

Quick Specs

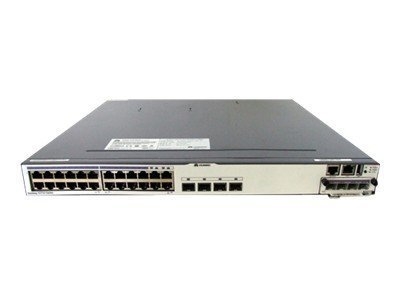

Figure 1 shows the appearance of Huawei S5700-28C-SI switch.

Table 1 shows the Quick Specs.

Product Code	S5700-28C-SI
Ports	20 GE ports, 4 GE Combo ports
Extended Slots	2 extended slots, one for an uplink subcard and the other for a stack card.
Memory (RAM)	256 MB
Flash	32 MB
MAC Address Table Size	16 MAC
Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Device	Double hot-swappable AC/DC power supplies
Power Consumption Operational	< 56W
Forwarding performance	96 Mpps
Switching capacity	256 Gbit/s
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Package Weight	6.6kg
PoE	Not supported

Product Details

Figure 2 shows the front panel of Huawei S5700-28C-SI.

Note:

①	Twenty 10/100/1000BASE-T ports	③	One console port
②	Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)	④	ETH management port
⑤	USB port	⑥	Front card slot

Figure 3 shows the back panel of Huawei S5700-28C-SI.

Note:

①	ESD jack	④	Power module slot 2
②	Rear card slot	⑤	Power module slot 1
③	Fan slot

*Ventilating fan and power modules have been installed in the diagram, but they should be purchased alone.

Optical Modules

Table 2 shows the recommended optical modules.

	Model	Description
Power Module	LS5M100PWA00	150W AC Power Module(Gray)
Power Module	LS5M100PWD00	150W DC Power Module(Gray)
Optical Transceivers	OMXD30000	Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
	OSX010000	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)
	SFP-10G-USR	10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
	eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.5km,LC)
	eSFP-GE-ZX100-SM1550	eSFP, GE, Single-mode Module(1550nm,100km,LC)
	SFP-FE-SX-MM1310	Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)
	eSFP-FE-LX-SM1310	Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)
	S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE , Single-mode Module(1310nm,40km,LC)
Copper Transceivers	SFP-1000BASET	1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate,100m
Card	ES5D000X2S00	2 10 Gig SFP+ interface card(used in S5700SI and S5700EI series

Compare with Similar Item

Table 3 shows the comparison of Huawei S5700-28C-SI and S5700-28C-PWR-SI.

Models	S5700-28C-SI	S5700-28C-PWR-SI
Fixed Ports	24 x 10/100/1,000 Base-T	24 x 10/100/1,000 Base-T
Extended Slots	2 extended slots	2 extended slots
PoE	Not supported	Supported
Power Consumption	Non-PoE model:	PoE model:

Get more information

Do you have any question about the Huawei S5700-28C-SI switch?

Quality Certifications

Specification

S5700-28C-SI Specification

S5700-28C-SI Specifications
Manufacturer	Huawei
Manufacturer Part Number	S5700-28C-SI
Form Factor	Fixed, Stackable
Switch Port	20 GE ports, 4 GE Combo ports
Power Over Ethernet (PoE)	Non-POE
Extended slot	Provides two extended slots, one for an uplink subcard and the other for a stack card
Max Stack bandwidth	48Gbps
DRAM Memory	256 MB
Flash Memory	32 MB
Performance
Forwarding performance	96 Mpps
MAC address table	IEEE 802.1d compliance
	16 K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4 K VLANs
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	STP, RSTP, and MSTP
	BPDU protection, root protection, and loop protection
	E-Trunk
IP routing	Static routing, ECMP
IP routing	RIPv1, RIPv2 and RIPng
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination
	MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	Blacklist and whitelist
Management
Management and maintenance	Stacking MAC Forced Forwarding (MFF) Virtual cable test Port mirroring and RSPAN (remote port mirroring) Remote configuration and maintenance by using Telnet SNMP v1/v2/v3 RMON Web NMS HGMP System logs and alarms of different levels GVRP MUX VLAN
Power Supply Specifications
Power Device	Power supply - Non-PoE
Power Redundancy	No
Voltage Required	AC 120/230 V ( 50/60 Hz )
Dimensions / Weight / Miscellaneous
Width	44.2cm
Depth	43.6cm
Height	22.0cm
Weight	5.0kg
System Software
Software Version	Standard Version
Manufacturer Warranty
Service & Support	1 year warranty

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the S5700-28C-SI?

Available accessories include power supply modules, flexible cards, and mounting brackets which enhance its usage and integration.

How does the S5700-28C-SI compare with other similar products?

The S5700-28C-SI stands out for its flexibility with dual power slots and a flexible card slot, compared to other similar range switches.

How do I use the S5700-28C-SI for network segmentation?

Utilize VLANs (Virtual Local Area Networks) to segment the network effectively, offering enhanced security and management.

Why should I buy from router-switch.com?

As an authorized distributor for 20+ top brands, router-switch.com offers:
- Genuine products with full warranties.
- Competitive pricing and bulk order discounts.
- Professional pre-sales and after-sales support.

Learn More

How cost-effective is the S5700-28C-SI?

The S5700-28C-SI offers high performance and flexibility at a competitive price, making it ideal for budget-conscious system integrators and distributors.

What are the key features of the S5700-28C-SI?

It has 20 GE RJ45 ports, 4 GE Combo ports, dual power slots, and a single slot for a flexible card, providing robust connectivity and network management.

What application scenarios are suitable for the S5700-28C-SI?

The S5700-28C-SI is well-suited for enterprise networks, data centers, and campus networks needing scalable and reliable service.

How do you install the S5700-28C-SI?

Mount the S5700-28C-SI in a standard 19-inch rack using the provided mounting brackets and connect the power and network cables as required.

Does the S5700-28C-SI need to be upgraded?

It is advisable to stay updated with the latest firmware and software upgrades provided by Huawei for optimal performance and security.

Are there alternative products to the S5700-28C-SI?

Yes, alternatives include other models in the Huawei S5700 series, such as the S5700-28P-LI, which offer similar functionalities.

What are common troubleshooting steps for the S5700-28C-SI?

Check the power supply, review network connections, and verify software configurations. Refer to the user manual for a detailed guide.

What accessories are available for the S5700-28C-SI?

Available accessories include power supply modules, flexible cards, and mounting brackets which enhance its usage and integration.

How does the S5700-28C-SI compare with other similar products?

The S5700-28C-SI stands out for its flexibility with dual power slots and a flexible card slot, compared to other similar range switches.

How do I use the S5700-28C-SI for network segmentation?

Utilize VLANs (Virtual Local Area Networks) to segment the network effectively, offering enhanced security and management.

Why should I buy from router-switch.com?
