HUAWEI OptiX Equipments Config Tool

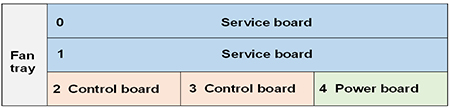

Slot Type Slot No.
Control board (SCU) slot 2,3
Power board slot 4
Service board slot 0,1

Configuration Model: MA5608T chassis with Fan + 1pcs power boards + 2pcs control boards + Variable service boards

Required Item

Board type and description	Qty
MPWC DC power board
MPWD AC Power Board, Power Backup

Board type and description	Qty
MCUD Control unit board, 4 GE optical uplink ports
MCUD1 Control unit board, 2 GE ports and 2 GE/10 GE optical uplink ports

Board type and description	Qty
GPFD B+ 16-port GPON OLT interface board (including Class B+ SFP Optical Module)
GPFD C+ 16-port GPON OLT interface board (including Class C+ SFP Optical Module)
GPFD C++ 16-port GPON OLT interface board (including Class C++ SFP Optical Module)
GPBD B+ 8-port GPON OLT interface board (including Class B+ SFP Optical Module)
GPBD C+ 8-port GPON OLT interface board (including Class C+ SFP Optical Module)
GPBD C++ 8-port GPON OLT interface board (including Class C++ SFP Optical Module)
GPBH B+ 8-port GPON OLT interface board (including Class B+ SFP Optical Module)
GPBH C+ 8-port GPON OLT interface board (including Class C+ SFP Optical Module)
GPBH C++ 8-port GPON OLT interface board (including Class C++ SFP Optical Module)
