TS-832PX-4G

Annapurna Labs Alpine AL324 quad-core 1.7 GHz processor, 4 GB DDR4 RAM (expandable to 16 GB)

Price: US$765.00
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

TS-832PX-4G Overview

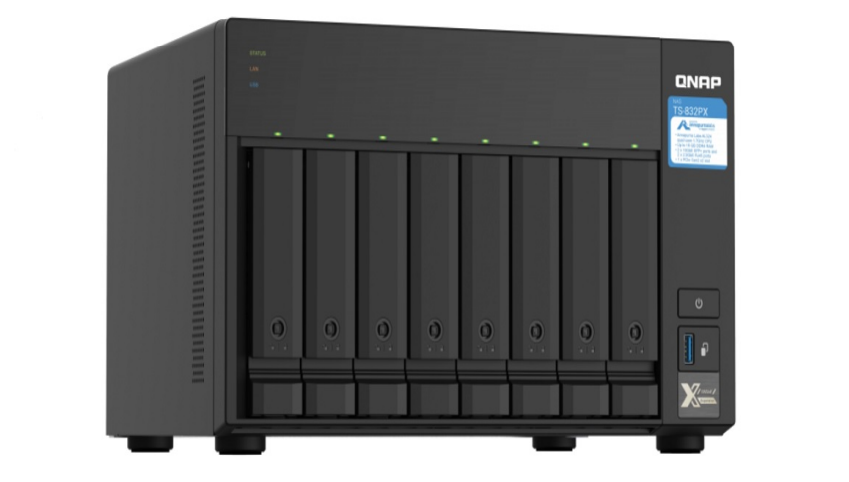

The quad-core 1.7GHz TS-832PX features eight 3.5-inch SATA 6GB/s drive bays, providing huge storage potential for a wide range of applications and everyday usage. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-832PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing. Various PCIe cards are also supported, including QM2 cards that provide M.2 SATA/NVMe SSD caching and Qtier auto-tiering storage to boost NAS performance.

Quick Spec

Table 1 shows the quick spec.

Product Code

TS-832PX-4G

CPU

Annapurna Labs Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz processor

CPU Architecture

64-bit ARM

Floating Point Unit

Encryption Engine

System Memory

4 GB SODIMM DDR4(1 x 4 GB)

Memory Slot

1 x SO-DIMM DDR4

Maximum Memory

16 GB (1 x 16 GB)

Drive Bay

8 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

USB 3.2 Gen 1 port

3

Product Details

TS-832PX-4G provides these features and benefits:
TS-832PX-4G 1

TS-832PX-4G 2Energy-efficient Quad-core Processor

Powered by 64-bit quad-core 1.7GHz ARM Cortex-A57 processor and 4 GB DDR4 RAM (expandable to 16 GB), the TS-832PX features is highly energy efficient without impacting system or application performance.
TS-832PX-4G 3

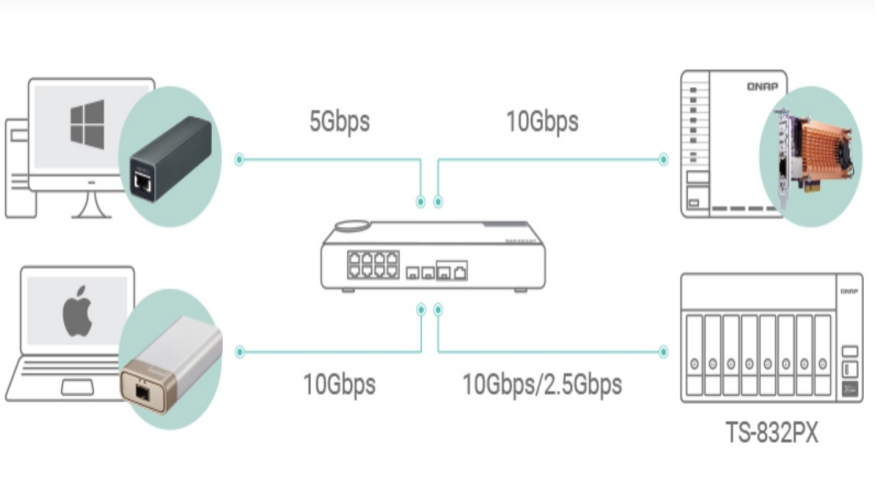

High-speed 10GbE and 2.5GbE connectivity

The TS-832PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.
TS-832PX-4G 4

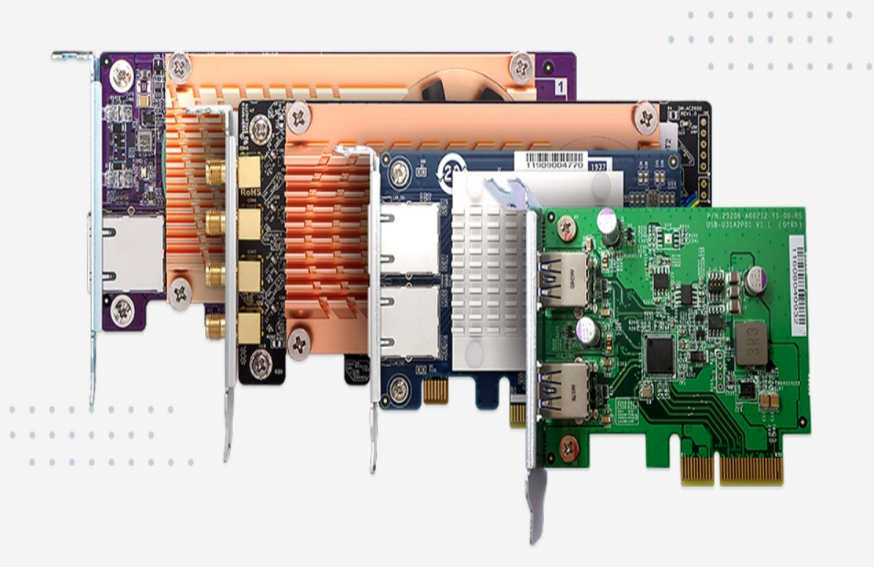

Extend NAS Functionality with a PCIe Card

With a PCIe Gen 2.0 slot, the TS-832PX provides flexibility in extending NAS functionality and potential applications. To optimize system performance, install a QNAP QM2 card for M.2 SATA/NVMe SSD caching/10GbE connectivity and use with Qtier for optimal system performance. You can also use a QNAP Wi-Fi 6 (802.11AX) network card to create a wireless environment. Additional options include QXG 5GbE/2.5GbE network adapter cards and USB 3.2 Gen 2 (10Gbps) cards. All these options ensure that the TS-832PX can be upgraded to fit future requirements.
TS-832PX-4G 5

TS-832PX-4G 6
Compare to Similar Items

Table 2 shows the comparison.

Product Code

TS-832PX-4G

TS-251D-4G

CPU Model

Cortex-A57

Intel Celeron J4025

CPU Architecture

64-bit ARM

64-bit x86

Floating Point Unit

System Memory

4 GB SODIMM DDR4(1 x 4 GB)

4 GB SO-DIMM DDR4 (1 x 4 GB)

Memory Slot

1 x SO-DIMM DDR4

2 x SO-DIMM DDR4

Maximum Memory

16 GB (1 x 16 GB)

8 GB (2 x 4GB)

Drive Bay

8 x 3.5-inch SATA 6Gb/s, 3Gb/s

2 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

Get More Information

Do you have any question about the TS-832PX-4G?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

TS-832PX-4G Specification

TS-832PX-4G Specification

CUP

Annapurna Labs Alpine AL324 ARM® Cortex-A57 quad-core 1.7GHz processor

CPU Architecture

64-bit ARM

Floating Point Unit

Encryption Engine

System Memory

4 GB SO-DIMM DDR4 (1 x 4 GB)

Maximum Memory

16 GB (1 x 16 GB)

Memory Slot

1 x SO-DIMM DDR4

Flash Memory

512 MB (Dual boot OS protection)

Drive Bay

8 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

Hot-swappable

M.2 Slot

Optional via a PCIe adapter

SSD Cache Acceleration Support

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

2 (also support 10M)

10 Gigabit Ethernet Port

2 x 10GbE SFP+

Hot Swappable Drive

2

Wake on LAN (WOL)

Jumbo Frame

PCIe Slot

1

Slot 1: PCIe Gen 2 x2

USB 3.2 Gen 1 port

3

Form Factor

Tower

LED Indicators

System Status, LAN, USB, HDD1~8

Buttons

Power, USB copy, Reset

Dimensions (HxWxD)

188.2 × 329.3 × 280.8 mm

Weight (Net)

6.38 kg

Operating temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

250W, 100-240V AC, 50/60Hz, 3.5A

Power Consumption: HDD Sleep Mode

27.949 W

Power Consumption: Operating Mode, Typical

50.858 W

Fan

System fan: 2 x 120mm, 12VDC

CPU fan: 1 x 60mm

Sound Level

19.6 db(A)

System Warning

Voice prompts or Buzzer

Kensington Security Slot

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

700
