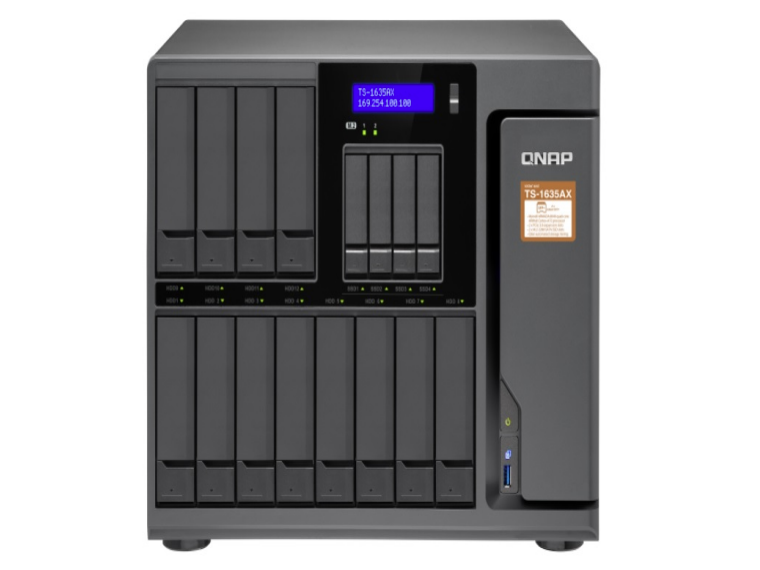

TS-1635AX-4G, QNAP TS-1635AX NAS, Marvell ARMADA 8040, 4GB DDR4 RAM, 64-bit quad-core

TS-1635AX-4G Specification

CUP

Marvell ARMADA 8040 ARMv8 Cortex-A72 quad-core 1.6 GHz processor

CPU Architecture

64-bit ARM

Floating Point Unit

√

Encryption Engine

√

System Memory

4 GB UDIMM DDR4 (1 x 4 GB)

Maximum Memory

16 GB (1 x 16 GB)

Memory Slot

1 x U-DIMM DDR4

Flash Memory

512 MB (Dual boot OS protection)

Drive Bay

12 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

2.5-inch bays:

2.5-inch SATA solid state drives

Hot-swappable

√

M.2 Slot

2 x M.2 2280 SATA SSD slots

SSD Cache Acceleration Support

√

Gigabit Ethernet Port (RJ45)

2

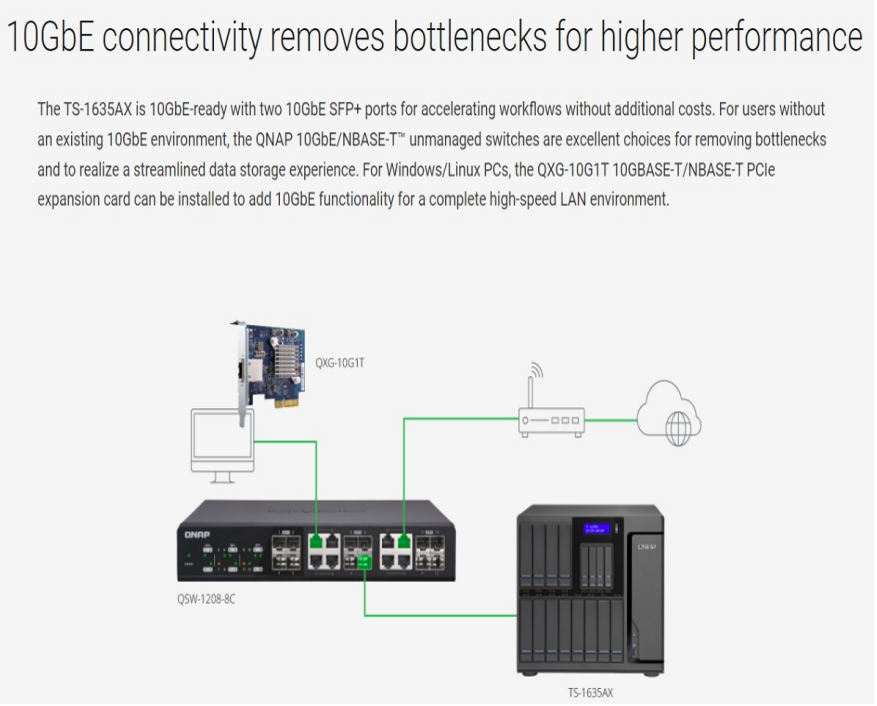

10 Gigabit Ethernet Port

2 x 10GbE SFP+

Wake on LAN (WOL)

√

Jumbo Frame

√

PCIe Slot

2

Slot 1: PCIe Gen 3 x2

Slot 2: PCIe Gen 3 x1

USB 3.2 Gen 1 port

3

USB 3.2 Gen 2 (10Gbps) Port

Optional via a PCIe adapter

Audio Output

- (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)

Form Factor

Tower

LED Indicators

Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2

LCD Display/ Button

√

Buttons

Power, Reset, USB Auto Copy

Dimensions (HxWxD)

303.84 × 369.89 × 319.8 mm

Weight (Net)

12.06 kg

Operating temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

ATX 250W, Input: 100-240 Vac~, 50-60Hz, 3.5A

Power Consumption: HDD Sleep Mode

39.74 W

Power Consumption: Operating Mode, Typical

76.69 W

Fan

System fan: 3 x 92mm, 12VDC

CPU fan: 1 x 60mm, 12VDC

Sound Level

23 db(A)

Other Interfaces

Kensington security slot

System Warning

Buzzer

Kensington Security Slot

√

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

700
