Name:	PFM811-4CH
Model:	PFM811-4CH - Dahua CVI Accessories
Brand:	Dahua
Detail:	Dahua PoC Transmitter
	Rating: 100% 5/5.0 1 Review
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

PFM811-4CH

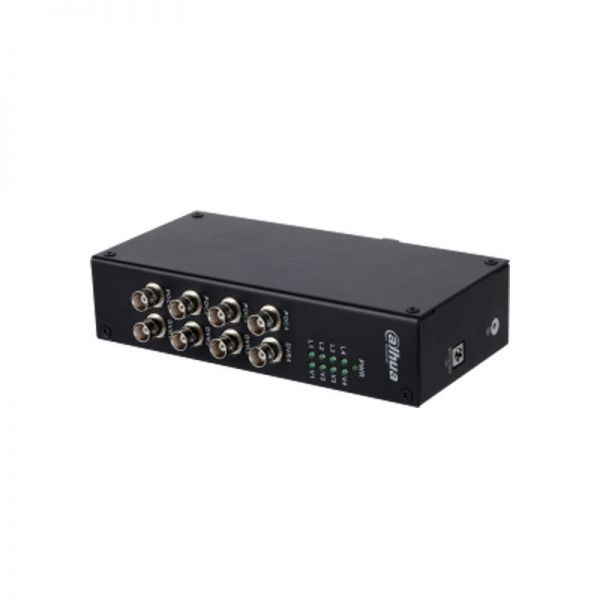

Dahua PoC Transmitter

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

PFM811-4CH Overview

Introducing the powerful Dahua PFM811-4CH PoC Transmitter, a top-tier product designed to bring seamless connectivity and enhanced performance to your surveillance systems. This device integrates power over coaxial technology, enabling efficient power and data transmission over single coaxial cables, simplifying installation and reducing costs. Ideal for diverse security environments, the Dahua PFM811-4CH PoC Transmitter ensures reliability and high-quality video signal transmission.

Quick Spec

Brand	Dahua
Model	PFM811-4CH
Channels	4
Video Transmission	HD
Operating Temperature	-30°C to +70°C

Product Features

● Easy installation with single coaxial cable for power and data transmission
● Supports HD video transmission over long distances
● Wide operating temperature range
● Compatible with various Dahua HD-CVI cameras
● Enhanced power supply stability

Product Applications

● Ideal for upgrading older CCTV systems to HD quality without rewiring
● Perfect for extensive surveillance installations in large buildings or complexes
● Suitable for temporary surveillance setups requiring quick and simple installation

Supported Options

Accessory	Model
Coaxial Cable	PFM920I
Power Adapter	PFM320D
Mounting Bracket	PFM902P

Compare to Similar Items

Model	Dahua PFM811-4CH	Dahua PFM812-4CH	Dahua PFM813-4CH
Channels	4	4	8
Video Resolution	HD	Full HD	HD
Transmission Distance	400m	500m	300m

Get more information

Check Dahua PFM811-4CH price and PFM811-4CH datasheet, buy Dahua PFM811-4CH PoC Transmitter with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or email us at sales@router-switch.com.

Quality Certifications

Specification

PFM811-4CH Specification

Function

Transmission Channel

4 channels

Video Standard

HDCVI: 720P/1080P/4MP (do not support AHD/TVI)

Transmission Distance

RG59: ≤400 m (1312 ft)

Transmission Media

RG59/RG6

Storage Platform

XVR (do not support XVR with built-in PoC)

Compatibility

Do not support XVR with built-in PoC,do not support camera with built-in PoC

Port

Power

1, Φ5.5 mm × Φ2.1 mm × 12 mm (Φ0.22" × Φ0.08" × Φ0.47")

Video

8 (4 BNC video input and 4 BNC video output)

Protection

Electrostatic Discharge

Contact discharge: 6k

Air discharge: 8k

Lightning

Common mode: ±2kV

Power

Power Supply

12V DC–36V DC

Output Power

≤12W

Environment

Operating Temperature

-10°C to +55°C (-14°F to +131°F)

Operating Humidity

≤95%RH

Storage Temperature

-20°C to +70°C (-4°F to 158°F)

Structure

Dimensions

183 mm × 105 mm × 42 mm (7.2" × 4.13" × 1.65")

Casing

SECC

Color

Black

Net Weight

0.6 kg (1.39 lb)

Gross Weight

0.7 kg (1.63 lb)

Certifications

CE:
EN 55032: 2015
EN 55024: 2010+A1: 2015
EN 50130-4: 2011+A1: 2014
FCC: 47 CFR Part 15, Subpart B

No.

Power Specification

Channel

12W Camera

6W Camera

12V DC

12V 2A

1CH

2CH

12V 3A

2CH

4CH

12V 5A

4CH

24V DC

24V 2A

3CH

4CH

24V 3A

4CH

36V DC

36V 1A

2CH

4CH

36V 2A

4CH

Testing conditions are as follows:

1. RG59-400 m (1312 ft) (DC impedance of RG59 cable is 5 ohm for every 100 meters (328 ft)).

2. IR function is enabled for all cameras, and one channel of camera is zoomed.

3. Test temperature: 25°C (77°F).
