MRD MTX100-A3K0102-M-SC Datasheet & Price Guide

Overview

MRD MTX100-A3K0102-M-SC Overview

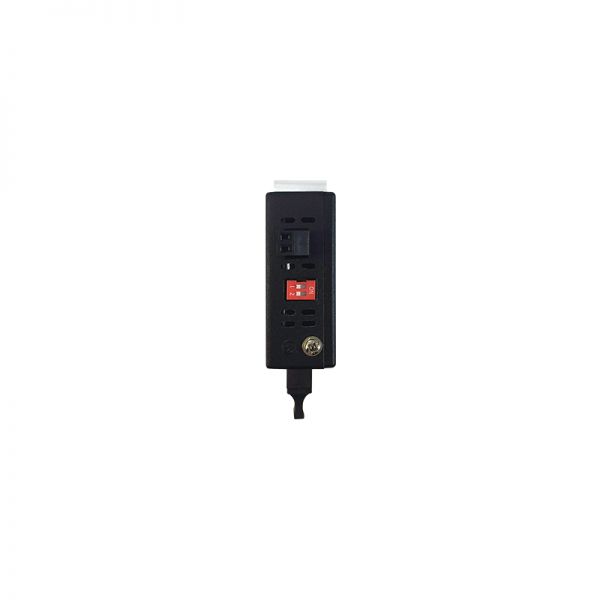

MTX100 3-port Unmanaged Industrial Ethernet Media Converter made from Anti-Corrosion Aluminum Alloy. 1 Fixed Fiber Port (MultiMode, 5KM, SC), and 2 10/100BaseT Ports. IP30 Protection Class, Operating Temperature from -40°C to +75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30 VAC) Power Input (Only connect to class 2 power supply).

Quick Spec

Table 1 shows the quick spec of the MTX100-A3K0102-M-SC .

Model	MTX100-A3K0102-M-SC
Interface Configuration	1 x 10/100 BaseX SFP 2 x 10/100 BaseT
Input Voltage	12/24/48 VDC & 24 VAC
Fansless	Yes
Backplane Bandwidth	8Gbps
Installasion	DIN-rail mounting
IP Rating	IP40; IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	24 × 100 × 61.8 mm
Dimensions (W x H x D)	0.94 inch x 3.94 inch x 2.43 inch
Weight	0.23kg
Weight	0.5 lb
MTBF	≥400,000H
Operating Temperature	-40 °C~ 75 °C
Operating Temperature	-40°F ~ 167°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A UL/cUL61010

Product Features

● Industrial-grade Chip
● 10/100/1000 BaseT(X)(RJ45 connector)
● Compact size for easy installation
● QoS supported to process critical data in heavy traffic
● Die-casting aluminum alloy housing
● IP30 or IP40 protection class
● -40 to 75°C or –10 to 60°C(IP40) wide operating temperature range

Supported Options

Table 2 shows the supported options of the MTX100-A3K0102-M-SC .

MDP-IE50W-24	50W Industrial DIN-Rail Power Supply. Input: 110/220 VAC/VDC (90~264VAC/88~300VDC) Output: 24VDC/2.08A Operating Temperature from -40°C to +75°C with conventional cooling Class 2 Power Supply
MRD-SFP-GLX	Industrial Grade 100BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-SFP-GEX	Industrial Grade 100BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-SFP-GZX	Industrial Grade 100BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-SFP-GSX-850	Industrial Grade 100BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 2KM
MRD-SFP-GSX	Industrial Grade 100BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the MTX100-A3K0102-M-SC .

Product number	Product description
MTX100-A3K0102-M-ST	MTX100 3-port Unmanaged Industrial Ethernet Media Converter made from Anti-Corrosion Aluminum Alloy. 1 Fixed Fiber Port (MultiMode, 5KM, ST), and 2 10/100BaseT Ports. IP30 Protection Class, Operating Tempera- ture from -40°C to +75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30 VAC) Power Input (Only connect to class 2 power supply).
MTX100-A3K0102-S-SC	MTX100 3-port Unmanaged Industrial Ethernet Media Converter made from Anti-Corrosion Aluminum Alloy. 1 Fixed Fiber Port (SingleMode, 40KM, SC), and 2 10/100BaseT Ports. IP30 Protection Class, Operating Temperature from -40°C to +75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30 VAC) Power Input (Only connect to class 2 power supply).
IMC-21-M-SC（MOXA）	1 x 10/100BaseT(X) (RJ45) +1 x 100BaseFX

Get More Information

Do you have any questions about the MTX100-A3K0102-M-SC price?

Contact us now via Live Chat or [email protected].

Quality Certifications

Specification

MRD MTX100-A3K0102-M-SC Specification

MTX100-A3K0102-M-SC Specification
Backplane Bandwidth	8Gbps
Processing Type	Store-and-Forward
MAC Table Size	4K
Packet Buffer Size	1.5 MB
Exchange Rate	148,800 pps/100M ports;
Ethernet Interface	Quality of Service (QoS),
Ethernet Interface	Broadcast Storm Protection (BSP)
Connection	1 removable 2-contact terminal block
Input Voltage	9.6~60 VDC & 18~30 VAC
Power Consumption	5W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-rail mounting
Housing	Die-casting aluminum alloy housing
IP Rating	IP40; IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	24 × 100 × 61.8 mm
Dimensions (W x H x D)	0.94 inch x 3.94 inch x 2.43 inch
Weight	0.23kg
Weight	0.5 lb
MTBF	≥400,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃~ 75 ℃
Operating Temperature	-40℉ ~ 167℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC Part 15 Subpart B Class A EN 55032 Class A EN 55035 Class A
EMS	IEC(EN)61000-4-2, Class 3 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 3 IEC(EN)61000-4-5, Class 3 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5 IEC(EN)61000-4-18, Class 3
Product Safety	EN/IEC62368-1 UL/cUL61010
Hazardous Area	EN55032 EN55024 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-6-4 FCC Part 15 Subpart B Class A

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available to complement MTX100-A3K0102-M-SC?

Accessories such as mounting brackets, power adapters, rack mounting kits, and additional SFP modules are available to enhance the functionality and versatility of MTX100-A3K0102-M-SC. These accessories enable system integrators and distributors to customize the switch according to their specific deployment needs, ensuring seamless integration and optimal performance.

How does MTX100-A3K0102-M-SC compare to other similar industrial switches in terms of performance and durability?

MTX100-A3K0102-M-SC sets itself apart from other industrial switches through its Anti-Corrosion Aluminum Alloy construction, which provides superior durability and corrosion resistance. Its high-performance capabilities, advanced features, and rugged design make it a reliable choice for demanding industrial environments where standard switches may fall short.

Is MTX100-A3K0102-M-SC suitable for both managed and unmanaged switch applications?

Yes, MTX100-A3K0102-M-SC is versatile and can be used in both managed and unmanaged switch applications, offering flexibility in deployment scenarios. Whether system integrators and distributors require advanced configuration options or simple plug-and-play functionality, MTX100-A3K0102-M-SC can adapt to various networking needs with ease.
