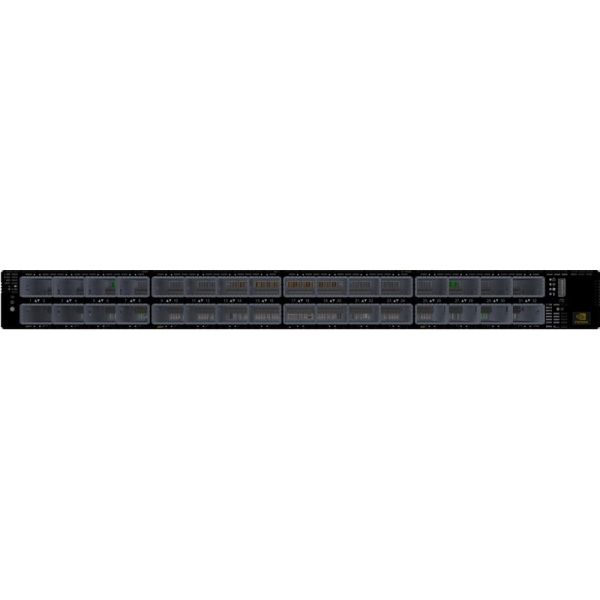

main product photo

MQM9790-NS2F, HPE & NVIDIA OEM Solution, NVIDIA Mellanox MQM9790 NDR InfiniBand Switch, 64x400Gb/s/32 OSFP/Unmanaged/P2C Airflow (P45691-B21 / 920-9B210-03FN-0D0)

  • Brand: NVIDIA Mellanox
  • Model: MQM9790-NS2F (OEM)
  • In Stock
    • United States
    • United Kingdom
    • Germany
    • United Arab Emirates
    • Singapore
    • India
    • Hong Kong
$19,200.00
Price Alert ×
MQM9790-NS2F, HPE & NVIDIA OEM Solution, NVIDIA Mellanox MQM9790 NDR InfiniBand Switch, 64x400Gb/s/32 OSFP/Unmanaged/P2C Airflow (P45691-B21 / 920-9B210-03FN-0D0)
MQM9790-NS2F, HPE & NVIDIA OEM Solution, NVIDIA Mellanox MQM9790 NDR InfiniBand Switch, 64x400Gb/s/32 OSFP/Unmanaged/P2C Airflow (P45691-B21 / 920-9B210-03FN-0D0) US$19,200.00
If you see a better price elsewhere, please let us know and we will work hard to find the product at the better price. We will notify you if the price drops.
Please enter a valid email address.
Please enter your name.
Condition
  • OEM
expert
Certified Expertise Builds Trust
CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
Talk to an Expert
  • Faster Delivery, Globally Ready

    Faster Delivery, Globally Ready

    20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

    48H Worldwide Shipping
    10+ Global Warehouses
  • Keep Projects On Time

    Keep Projects On Time

    Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

    Track Your Order
  • Leading Global Distributor Since 2002

    Leading Global Distributor
    Since 2002

    A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

      21500+ Enterprise Clients Served200+ Countries & Regions Covered
  • Worry-Free Coverage with RSCare

    Worry-Free Coverage with RSCare

    3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

    Cisco SmartNet
    HPE Foundation Care
    Dell ProSupport
    Juniper Care
    Fortinet Support
  • Your Trusted Genuine Source

    Your Trusted Genuine Source

    Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

    100% Authentic Products
    100,000+ Multi-Brand SKUs Available
MQM9790-NS2F, HPE & NVIDIA OEM Solution, NVIDIA Mellanox MQM9790 NDR InfiniBand Switch, 64x400Gb/s/32 OSFP/Unmanaged/P2C Airflow (P45691-B21 / 920-9B210-03FN-0D0)

MQM9790-NS2F, HPE & NVIDIA OEM Solution, NVIDIA Mellanox MQM9790 NDR InfiniBand Switch, 64x400Gb/s/32 OSFP/Unmanaged/P2C Airflow (P45691-B21 / 920-9B210-03FN-0D0)

100% Genuine Ready to Ship
$19,200.00
Overview
Specification
Reviews
Warranty
Overview

NVIDIA Mellanox MQM9790-NS2F (OEM) Overview

The NVIDIA Mellanox MQM9790-NS2F is an HPE OEM 64-port NDR InfiniBand switch with 32 OSFP cages and P2C airflow. See the HPE & NVIDIA OEM Solutions Reference Guide for OEM details.

Key Specifications

Network Type

NDR InfiniBand

Port Configuration

64 × 400Gb/s

Port Interface

32 × OSFP

Aggregate Bandwidth

Up to 51.2Tb/s

Management

Unmanaged / Externally Managed

Airflow Direction

P2C, Forward

Best Fit Applications

AI and HPC Cluster Fabrics

AI and HPC Cluster Fabrics

NDR InfiniBand provides high-bandwidth, low-latency connectivity for AI training and high-performance computing clusters.

High-Performance Data Center Fabrics

High-Performance Data Center Fabrics

The 1U, 64-port design is suitable for high-density InfiniBand fabric deployments.

System Compatible Components

Type Part Number Description
Optical Transceivers MMA4Z00-NS400 NVIDIA Mellanox NDR 400Gb/s OSFP Transceiver, MPO12 APC, 50m MMF
MMS4X00-NS400 NVIDIA Mellanox NDR 400Gb/s OSFP Transceiver
MMA1Z00-NS400 HPE/NVIDIA InfiniBand NDR 400G optical transceiver

Type Part Number Description
Interconnect Cables MCP7Y00-N001 NDR OSFP to 2 × OSFP passive copper splitter cable, 1m
MCP7Y00-N002 NDR OSFP to 2 × OSFP passive copper splitter cable, 2m
MCP7Y00-N01A NDR OSFP to 2 × OSFP splitter direct-attach copper cable, 1.5m
MCP7Y00-N003 NDR OSFP to 2 × OSFP splitter direct-attach copper cable, 3m
MCP7Y00-N02A NDR OSFP to 2 × OSFP passive copper splitter cable, 2.5m
MCA7J60-N004 NDR OSFP to 2 × OSFP active copper splitter cable, 4m
MCA7J60-N005 NDR OSFP to 2 × OSFP active copper splitter cable, 5m

Type Part Number Description
Server-Side Adapters MCX75310AAS-NEAT NVIDIA Mellanox ConnectX-7 400Gb/s OSFP NDR adapter, PCIe 5.0 x16
MCX75510AAS-NEAT NVIDIA Mellanox ConnectX-7 single-port 400Gb/s NDR InfiniBand adapter, PCIe 5.0 x16

Compare Related Models


MQM9790-NS2F HPE OEM MQM9790-NS2F OEM
MQM9790-NS2R MQM9790-NS2R
MQM9700-NS2F MQM9700-NS2F
MQM9700-NS2R MQM9700-NS2R
Product Positioning Externally managed NDR switch Externally managed NDR switch Internally managed NDR switch Internally managed NDR switch
Network Type NDR InfiniBand NDR InfiniBand NDR InfiniBand NDR InfiniBand
Port Configuration 64 × 400Gb/s 64 × 400Gb/s 64 × 400Gb/s 64 × 400Gb/s
Connector Cages 32 × OSFP 32 × OSFP 32 × OSFP 32 × OSFP
Port-Split Support Up to 128 NDR200 ports Up to 128 NDR200 ports Up to 128 NDR200 ports Up to 128 NDR200 ports
Aggregate Bandwidth Up to 51.2Tb/s Up to 51.2Tb/s Up to 51.2Tb/s Up to 51.2Tb/s
Switching Throughput 25.6Tb/s 25.6Tb/s 25.6Tb/s 25.6Tb/s
Management Type Unmanaged / externally managed Unmanaged / externally managed Managed Managed
Onboard Subnet Manager Not onboard Not onboard Supported Supported
Management Platform External UFM compatible External UFM compatible MLNX-OS MLNX-OS
Management Interface I2C microUSB I2C microUSB MGT port, console port and USB MGT port, console port and USB
Airflow Direction P2C, forward C2P, reverse P2C, forward C2P, reverse
Power Supply 1+1 redundant AC, hot-swappable 1+1 redundant AC, hot-swappable 1+1 redundant AC, hot-swappable 1+1 redundant AC, hot-swappable
Form Factor 1U 1U 1U 1U
System Weight 14.5kg reference 14.5kg reference 14.5kg reference 14.5kg reference
Operating Temperature 0°C to 35°C 0°C to 40°C 0°C to 35°C 0°C to 40°C
Recommended Application Scenarios AI/HPC clusters and externally managed NDR fabrics AI/HPC clusters requiring reverse airflow Internally managed AI, HPC and enterprise InfiniBand fabrics Internally managed fabrics requiring reverse airflow

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

NVIDIA Mellanox MQM9790-NS2F (OEM) Specification

Brand NVIDIA Mellanox
Product Family NVIDIA Quantum-2 QM9700 Series
System Model QM9790
Legacy OPN MQM9790-NS2F
Product Type NDR InfiniBand Switch
OEM Version HPE OEM
HPE Part Number P45691-B21
NVIDIA Part Number 920-9B210-03FN-0D0
Switch Architecture NVIDIA Quantum-2
InfiniBand Generation NDR
Port Configuration 64 × 400Gb/s NDR ports
Supported Port Speeds 40, 56, 100, 200, and 400Gb/s per port
Connector Type OSFP
Connector Cages 32 OSFP cages
Port-Split Capability Up to 128 NDR200 logical ports
Aggregate Bidirectional Throughput Up to 51.2Tb/s
Switching Throughput 25.6Tb/s
Packet Processing More than 66.5 billion packets per second
Management Type Unmanaged / externally managed
Subnet Manager Not onboard
External Fabric Management Compatible with external UFM or host-based subnet management
Management Interface I2C microUSB
Airflow Direction Power-to-connector (P2C), forward airflow
Form Factor 1U standard-depth rack-mount switch
Rack Mounting 19-inch standard rack mount
Dimensions 43.6mm H × 438mm W × 660.4mm D
Dimensions in Inches 1.7in H × 17.2in W × 26in D
Weight 14.5kg, HPE P45691-B21 reference
Power Supply 1+1 redundant, hot-swappable AC power supplies
Input Voltage 200–240VAC
Input Current 10A
Input Frequency 50/60Hz
Typical Power Consumption 640W with passive cables
Maximum Power Consumption 1,610W with active cables
Cooling 6+1 hot-swappable fan unit
Operating Temperature 0°C to 35°C
Non-Operating Temperature -40°C to 70°C
Operating Humidity 10%–85%, non-condensing
Non-Operating Humidity 10%–90%, non-condensing
Maximum Operating Altitude Up to 3,050m
Acoustic Noise 78.4dBA at room temperature
Safety Certifications CB, cTUVus, CE, CU, S-Mark
EMC Compliance CE, FCC, VCCI, ICES, RCM, CQC, BSMI, KCC, TEC, ANATEL
RoHS RoHS compliant
Warranty HPE-provided warranty
Product Status OEM
