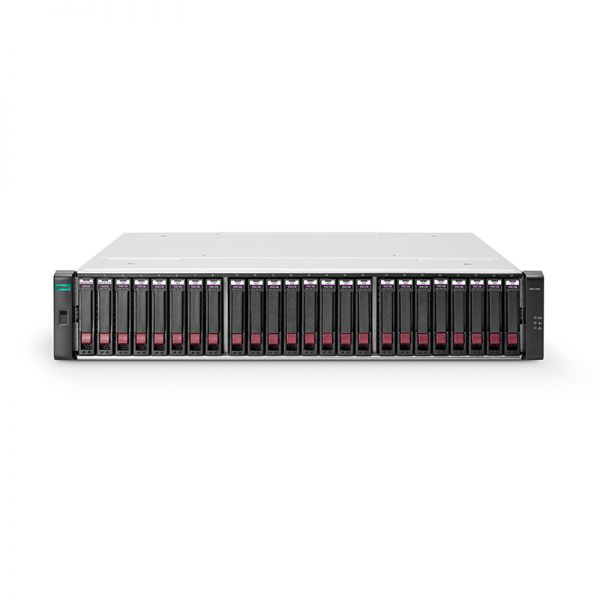

M0T60A

M0T60A Specification

Mfg Part Number

M0T60A

Brand

Hewlett Packard Enterprise

Product series

2040 Modular Smart Array (MSA 2040)

Product category

Storage

Includes

SFF Array Chassis
(2) MSA 2040 SAN controllers
4x200GB SSD
6x900GB 10K SFF HDD
Performance Auto Tier LTU

Storage

Bay Form Factor

2.5" SFF

Bay quantity

24

Drives included

24 x 1.2TB 12G SAS 10K SFF HDD

 Capacity

Native: 28.8TB

Max capacity in 1 chassis: 48 TB (single SFF array-head - using 24 x 2TB SFF SAS drives)

Max capacitysupported: 398 TB (by adding 7 SFF Disk Enclosures behind SFF Array & using 2TB SFF SAS drives)

Maximum Drives w/ expansion

199 SFF

Maximum LUNs

512

Maximum LUN size

140TB (128TiB)

Host support

Support Interface

Serial Attached SCSI 2

Maximum host supported

64 in v2 UI
512 in v3 UI

Interface

Type

SAS 6Gb/s

User Interface

Status and activity provided via management interfaces.
Status Indicators on front of Controller

Disk Drive and Enclosure Protocol

6 Gb SAS - Serial Attached SCSI

Slots

4

Storage Controller

Cache Memory

4GB Read/Write

Cache Backup

ECC protection with back up to flash memory (indefinite backup)

Metadata and System OS memory

 2GB

Upgradeable Firmware

yes

RAID Support

RAID 0 , RAID 1 , RAID 10 , RAID 3 , RAID 5 , RAID 50 , RAID 6

Host Support

Host Ports

FC: 4 x 8Gb Fibre Channel (per controller)
FC: 4 x 16Gb Fibre Channel (per controller)
iSCSI: 4 x 10GbE iSCSI (per controller)
iSCSI: 4 x 1GbE iSCSI (per controller)

Expansion Port

SAS (SFF8088) 4x lane 6 Gb SAS

Number of controller included

Two SAN controllers

Power requirement

Power supply

Internal power supply

Input Power

110VAC 3.32A, 344-390 W; 220VAC 1.61A,374-432W

Max Input Power

100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A

Heat Dissipation

1622 BTU/hr

Temprature and humidity range

Operating Temperature

41°F to 104°F (5°C to 40°C)

Operating Humidity

10% to 90% RH @ 104°F (40°C) non-condensing

Non-Operating Humidity

Up to 93% RH @ 104°F (40°C)

Declared acoustic noise levels

Sound Power

A weighted sound power LWAd=6,75 B

Sound Pressure

A weighted sound pressure LpAm - 55dB

Regulatory Info

Safety

UL 60950-1 (USA)
CAN/CSA-C22.2 No.60950-1-03 (Canada)
EN 60950-1 (European Union)
GS mark (Germany)
IEC 60950-1 (International)

Electromagnetic Compatibility

UL 60950-1 (USA)
CAN/CSA-C22.2 No.60950-1-03 (Canada)
EN 60950-1 (European Union)
GS mark (Germany)
IEC 60950-1 (International)
CCC Mark (power supply only, China PRC)
Electromagnetic
Compatibility
VCCI:2008-04 Class A (Japan)
FCC 15:109(g) Class A (USA)
ICES-003:2004 Class A (Canada)
EN55022 : (European Union Class A); CISPR 22 (International Class A)
EN61000-3-2 : (Harmonics) (European Union)
EN61000-3-3 : (Flicker) (European Union)
EN 55024 (European Union, Immunity, Class A);CISPR 24 (International
Immunity, Class A)
AS/NZS CISPR 22, Class A (Australia, New Zealand)
CNS 13438 Taiwan, Class A (Taiwan)
KN22 Class A (Emissions Class A); KN24 (Immunity) (S Korea)

RoHS and WEEE

RoHS-6/6 Compliance, China RoHS, WEEE

Weight and dimensions

Form factor

Rackmountable - 2U height

Width

7.6 in

Depth

19.5 in

Height

3.5 in

Weight

31 lbs
