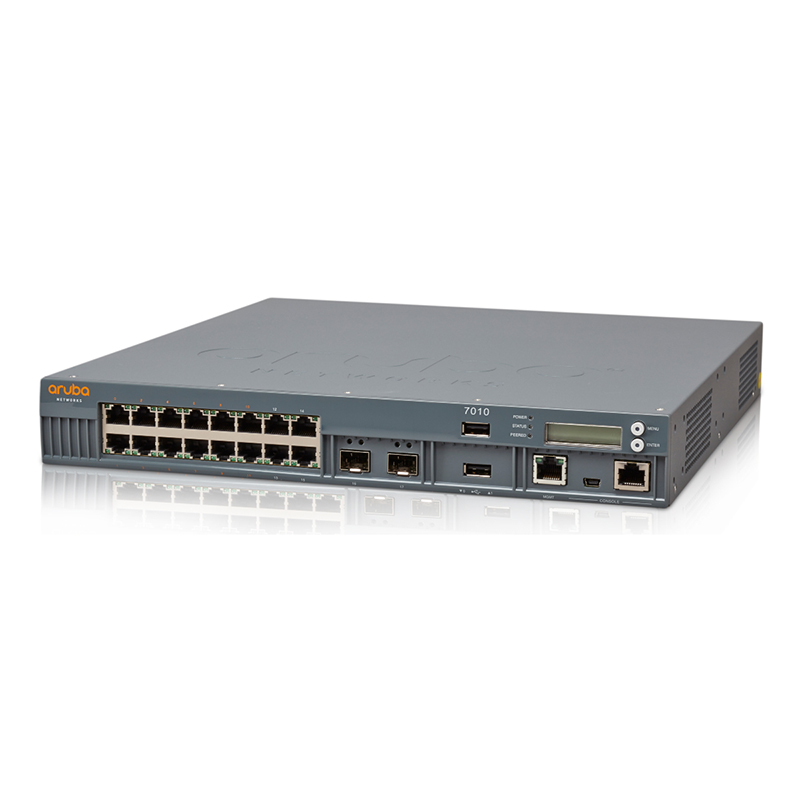

JW679A

JW679A Specification

Product Model

Aruba 7010 (US) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 AP and 2K Clients Controller

Maximum campus AP licenses

32

Maximum remote AP licenses

32

Maximum concurrent users/devices

2,048

Maximum VLANs

4,094

Active firewall sessions

32,768

Concurrent GRE tunnels

512

Concurrent IPsec sessions

1,024

Mobility Access Switch tunneled-node ports

1,024

Firewall throughput

4 Gbps

Encrypted throughput (3DES, AES-CBC)

2.4 Gbps

Encrypted throughput (AES-CCM)

3.4 Gbps

Form factor/footprint

1 rack unit

Auto-negotiating 10/100/1000BASE-T

16

Gigabit Ethernet ports (GBIC or SFP)

2 SFP

USB 2.0

Yes

Management/status LEDs

Yes (2)

LINK/ACT and status LEDs

Yes

LCD panel and navigation buttons

No

Console port

Yes (micro USB/RJ-45)

Out-of-band management port

Yes

PoE Role/Mode

Power Source Equipment (PSE)

PoE In or Out

Out

Number of PoE+ capable Ports

12

Max concurrent of PoE Ports

12

Max concurrent PoE+ Ports

5

PoE Power Budget

150W

Dimension (H × W × D)

4.42 cm x 31.75 cm x 33.7 cm (1.74” x 12.75” x 13.3”)

Weight

3.4 kg (7.5 lbs)

MTBF (hours, @ 25C)

232,843

Operating temperature

0° C to 40° C

Storage temperature

-40° C to 70° C

Humidity/storage humidity

10% to 95%,

NC Operating altitude

10,000 feet

Acoustic noise

39.8 – 58.6 dBA

Maximum power consumption

190W (with PoE)

Safety certifications

UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition EN 60950:2005 IEC 60950-1 Second Edition

NOM (obtained by partners and distributors)

Electromagnetic emissions certifications

FCC Part 15 Class B CE

AS/NZS CISPR22 Class B

CISPR22 Class A (7010, 7024, 7030), Class B (7005)

EN55022 Class A (7010, 7024, 7030), Class B (7005)

ICES-003 Class A (7010, 7024, 7030), Class B (7005)

VCCI Class A (7010, 7024, 7030), Class B (7005)

EN61000-3-2

EN61000-3-3

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-4-8, EN 61000-4-11, AS/NZS 3548

KN22 Class B KCC CNS13438 Class B

EN55024/CISPR24

KN24

Industry Canada Class B

CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC

Telco

Common Language Equipment Identifier (CLEI) Code

Regulatory SKU information

ARCN01014(7005), ARCN0103(7010), ARCN7024(7024), ARCN7030(7030)

Minimum ArubaOS Release

7005, AOS 6.4.1.0; 7008, AOS 6.5.0.0; 7010, AOS 6.4.1.0; 7024, AOS 6.4.3.0; 7030, AOS 6.4.1.0
