IPC6232-IR(6mm), Huawei IPC6232-IR, 3MP Network IR Bullet Camera/20fps/f=6mm/IR 20m

  • Brand: Huawei
  • Model: IPC6232-IR(6mm)
$441.00
Price Alert ×
IPC6232-IR(6mm), Huawei IPC6232-IR, 3MP Network IR Bullet Camera/20fps/f=6mm/IR 20m
IPC6232-IR(6mm), Huawei IPC6232-IR, 3MP Network IR Bullet Camera/20fps/f=6mm/IR 20m US$441.00
If you see a better price elsewhere, please let us know and we will work hard to find the product at the better price. We will notify you if the price drops.
Please enter a valid email address.
Please enter your name.
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    Express Shipping to United States Get Shipping Estimate
    Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    IPC6232-IR(6mm), Huawei IPC6232-IR, 3MP Network IR Bullet Camera/20fps/f=6mm/IR 20m

    IPC6232-IR(6mm), Huawei IPC6232-IR, 3MP Network IR Bullet Camera/20fps/f=6mm/IR 20m

    100% Genuine Ready to Ship
    $441.00
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Overview

    Huawei IPC6232-IR(6mm) Overview

    The Huawei IPC6232-IR(6mm) is a professional 3MP network IR bullet camera designed for reliable day and night IP camera surveillance in commercial and campus deployments. It delivers 2048 × 1536 high-resolution video at up to 20 fps with H.264 and MJPEG compression, ensuring efficient streaming for NVR and VMS platforms. With 0.07 Lux low-light sensitivity, integrated IR illumination to 30 m, and IP66 weather protection, this Huawei IP camera suits outdoor corridors, parking areas, and perimeter security across APAC, EMEA, and North America.

    Product Highlights

    3,000 Kpx
    3MP Image
    30 m IR
    IR Range
    20 fps
    3MP Stream

    Product Applications Scenarios

    Security & Privacy
    The 3MP IP camera with 20–30 m IR and motion detection secures entrances, reducing blind spots and cutting guard patrol workload by up to 30%.
    Public Infrastructure
    IP66 housing and -30°C to 60°C tolerance make it ideal for streets and campuses, lowering maintenance truck rolls and replacement costs.
    Edge & IoT
    ONVIF 2.2, PoE, and local SD storage enable simple edge recording and quicker project rollouts, shortening field deployment time by about 25%.

    Product Features Comparison

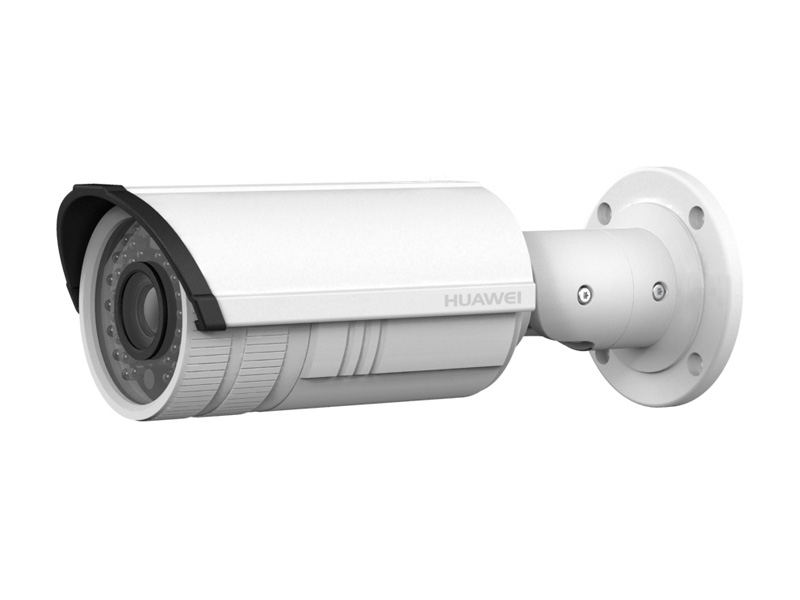

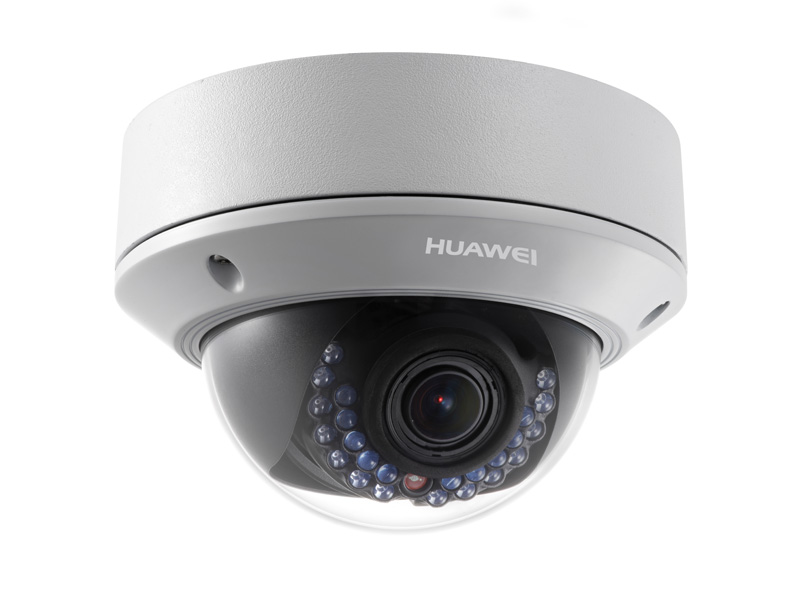

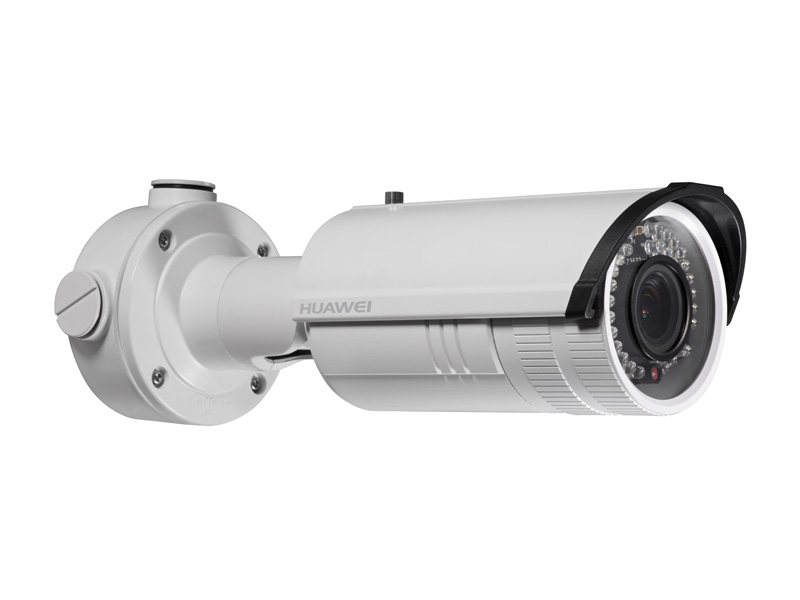

      Huawei IPC6232-IR(6mm) Huawei IPC6232-IR(12mm) Huawei IPC6231-WD-VRZ Huawei IPC6331-IR(4mm)
    Model IPC6232-IR(6mm) IPC6232-IR(12mm) IPC6231-WD-VRZ IPC6331-IR(4mm)
    Brand Huawei Huawei Huawei Huawei
    Image Sensor 1/3'' 3 Megapixel Progressive Scan CMOS 1/3" 3 Megapixel Progressive Scan CMOS 1/3'' 3MP Progressive Scan CMOS 1/3" 3 Megapixel Progressive Scan CMOS
    Max. Image Resolution 2048(H) × 1536(V) 2048(H) × 1536(V) 2048(H) × 1536(V) 2048(H) × 1536(V)
    Min. Illumination 0.07 Lux @ (F1.2, AGC ON), 0 Lux with IR 0.07 Lux @ (F1.2, AGC ON), 0 Lux with IR 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR; 0.14 Lux @(F1.4, AGC ON), 0 Lux with IR 0.07 Lux @(F1.2, AGC ON), 0 Lux with IR
    IR Distance 20 to 30 m 20 m to 30 m 10 to 30 m 20 m
    Lens 6mm, 12mm fixed lens optional; Max. aperture: F2.0 6mm, 12mm fixed lens optional; Max. aperture: F2.0 2.8 to 12mm @ F1.4 4mm fixed focus lens
    Video Resolution & Frame Rate 50 Hz: 20 fps (2048 × 1536); 25 fps (1920 × 1080, 1280 × 960, 1280 × 720). 60 Hz: 20 fps (2048 × 1536); 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 20 fps (2048 × 1536), 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720). 60 Hz: 20 fps (2048 × 1536), 30 fps (1920 × 1080), 30 fps (1280 × 960), 30 fps (1280 × 720) 50 Hz: 20 fps (2048 × 1536), 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720); 60 Hz: 20 fps (2048 × 1536), 30 fps (1920 × 1080), 30 fps (1280 × 960), 30 fps (1280 × 720) 50 Hz: 25 fps (1280 × 960), 25 fps (1280 × 720); 60 Hz: 30 fps (1280 × 960), 30 fps (1280 × 720)
    Video Bitrate 32 Kbps to 12Mbps 32 Kbps to 12Mbps 32 Kbps to 16Mbps 32 Kbps ~ 12Mbps
    Multiple Streams Main stream / Sub stream Main stream / Sub stream Main Stream / Sub Stream / Third Stream Dual streams (Main Stream / Sub Stream)
    Storage Interface Supports Micro SD/SDHC/SDXC card (Max. 64GB) Supports Micro SD/SDHC/SDXC card (max. 64GB) Supports Micro SD/SDHC/SDXC card (Max. 64GB) Micro SD/SDHC/SDXC card (up to 64GB)
    Power Supply DC 12 V ±10% / PoE (802.3af) DC 12 V ±10% / PoE (802.3af) DC 12 V ±10% / PoE (802.3af) DC 12 V ±10% / PoE (802.3af)
    Power Consumption Max. 5.5W (7.5W for ICR switch) Max. 5.5W (7.5W for ICR switch) ≤11.5W regularly, Max. 12W 5.5W max.
    Protection Level IP66 IP66 IP66 IP66
    Operating Temperature / Humidity -30°C to 60°C; 5% to 90% RH (non-condensing) -30°C to 60°C; 5% to 90% RH (non-condensing) Operating temperature: -30°C to 60°C; Operating humidity: 5% to 90% (non-condensing) -30°C ~ 60°C; 5% ~ 90% RH (non-condensing)

    Optional Add-ons

    Model Number Description
    HW-POE-01 Huawei PoE injector for powering a single IPC6232-IR series IP camera over Ethernet
    HW-JB-IPC6K Huawei junction box for IPC6200/6300 bullet cameras, enabling protected cabling and wall terminations
    HW-BRACKET-IPC62 Huawei outdoor mounting bracket for IPC62xx bullet cameras, suitable for poles or building facades

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei IPC6232-IR(6mm) Specification

    Model
    IPC6232-IR(6mm)
    Brand
    Huawei
    Image Sensor
    1/3'' 3 Megapixel Progressive Scan CMOS
    Max. Image Resolution
    2048(H) × 1536(V)
    Min. Illumination
    0.07 Lux @ (F1.2, AGC ON), 0 Lux with IR
    Day & Night Mode
    Auto (ICR) / Color / B/W / Timer / Alarm Trigger
    IR Distance
    20 to 30 m
    Electronic Shutter Speed
    1/3 to 1/100,000 s
    Gain Control
    Supported
    White Balance
    MWB / AWB1 / Locked WB / Fluorescent Lamp / Incandescent Lamp / Warm Light Lamp / Natural Light
    Wide Dynamic Range
    Supported
    Backlight Compensation
    Supported
    Lens Mount
    Ø14
    Lens
    6mm, 12mm fixed lens optional; Max. aperture: F2.0
    Horizontal Angle of View (6 mm)
    2048 × 1536: 43.3°; 1920 × 1080: 49°
    Horizontal Angle of View (12 mm)
    2048 × 1536: 20.6°; 1920 × 1080: 23.2°
    Image Compression
    H.264 MP/BP, MJPEG
    Video Resolution and Frame Rate (50 Hz)
    20 fps (2048 × 1536); 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
    Video Resolution and Frame Rate (60 Hz)
    20 fps (2048 × 1536); 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
    Video Bitrate
    32 Kbps to 12Mbps
    Multiple Streams
    Main stream / Sub stream
    ROI Encoding
    Supported
    Corridor Format
    Supports aspect ratio 9:16 for 2 megapixel and below 2 megapixel
    Audio Encoding Format
    G.711 / G.726 / MP2L2
    Audio Communication
    Voice intercom (pick-up needed), voice broadcasting, channel associated voice
    Communication Interface
    1 × RJ45 10M/100M adaptable Ethernet interface, 1 × RS-485 interface (PELCO-P/D)
    Alarm Interface
    1 alarm input / 1 alarm output
    Audio Interface
    1-channel audio input / 1-channel audio output
    Storage Interface
    Supports Micro SD/SDHC/SDXC card (Max. 64GB)
    Analog Video Output
    1 CVBS composite analog video output
    Motion Detection
    Supported
    Privacy Masking
    Supported
    PU Access Protocol
    ONVIF 2.2
    Network Protocol
    ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
    Digital Watermark
    Supported
    Max. Video Streams Accessing
    Supports up to 20 video stream channels accessing
    Security Measures
    User name and password authentication; supports 802.1X
    Web Browser Support
    IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, multi-language support; Windows XP, Windows 7, Windows 8
    Other Functions
    2D/3D noise reduction, front-end recording, front-end capture, IP address filtering, MTU configuration, electronic image stabilization
    Power Supply
    DC 12 V ±10% / PoE (802.3af)
    Power Consumption
    Max. 5.5W (7.5W for ICR switch)
    Operating Temperature / Humidity
    -30°C to 60°C; 5% to 90% RH (non-condensing)
    Protection Level
    IP66
    Physical Product Appearance
    95 × 105 × 258.6mm
    Weight
    1.2 kg

    Get more information

    Discover unbeatable prices and fast shipping for the IPC6232-IR(6mm), Huawei IPC6232-IR, 3MP Network IR Bullet Camera/20fps/f=6mm/IR 20m . Access the detailed IPC6232-IR(6mm), Huawei IPC6232-IR, 3MP Network IR Bullet Camera/20fps/f=6mm/IR 20m datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    What accessories are available for this camera?

    Accessories for the Huawei IPC6232-IR(6mm) include mounting brackets, power adapters, and weatherproof housings for enhanced durability.

    How does the IPC6232-IR(6mm) compare to other cameras?

    Compared to similar models, the Huawei IPC6232-IR(6mm) offers superior resolution, facial recognition, and cost efficiency.

    What common troubleshooting tips are there?

    For issues with the Huawei IPC6232-IR(6mm), check the power supply, network connection, and ensure the firmware is up to date.

    Are the products sold on router-switch.com authentic?

    Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.
