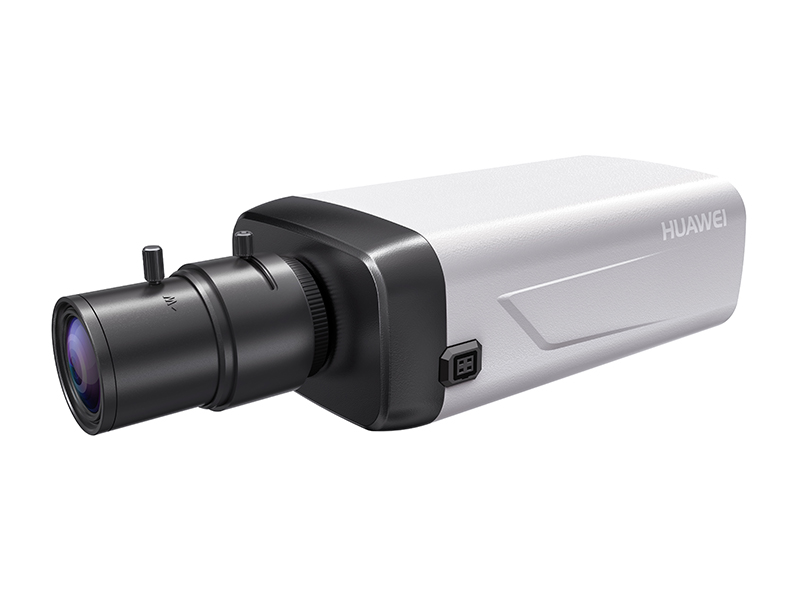

IPC6122-D, Huawei IPC6000 Series IP Camera, 2.0MP, HD, Network

IPC6122-D Specification

Image sensor

1/2.8" 2.0 megapixel progressive scan CMOS

Effective pixels
Minimum Illumination

1920(H)×1080(V)
Multicolor: 0.007lux (F1.2, AGC ON, 1/30s shutter and 50 IRE), 0.01lux (F1.4, AGC ON, 1/30s shutter and 50 IRE)
B/W: 0.002 lux (F1.2, AGC ON, 1/30s shutter and 50 IRE), 0.003 lux (F1.4, AGC ON, 1/30s shutter and 50 IRE)

Day/Night mode

Electronic shutter speed

Automatic ICR, multicolor, or B/W

1/16000 s ~ 1/25 (1/30) s

Gain control

Automatic

Backlight compensation

Wide dynamic range (WDR)

Supported

Supported

White balance

Noise Reduction

Auto/Manual/Indoor/Outdoor/Fixed Sodium Lamp

Self-adaptive to 2D or 3D DNR (digital noise reduction)

Lens interface

CS-mount lens with a C- or CS-mount adapter (without lens)

Lens control

Manual/DC drive auto aperture

Video encoding format

H.264 MP/BP, MJPEG

rate Video resolution and frame

1920 × 1080 ， 1280 × 720 ， 720 × 576 ， 720 × 480 ，352×288，352×240；
H.264: Full Frame Rate(25fps,30fps), 20fps ~ 1fps;
MJPEG：5fps ~ 1fps

Video bit rate

1080p: 1Mbps ~ 8Mbps，720p: 512Kbps ~ 8Mbps，D1: 300Kbps ~ 4Mbps，CIF: 100Kbps ~ 1Mbps

Region of Interest

Supported ROI (Region of Interest)

Multiple encoding

Encode one channel of primary streams and two channels of secondary streams at the same time

Stream package

Four basic packages and four customized packages

Bit rate type

CBR(Constants Bit Rate), VBR(Variable Bit Rate)

Dynamic bit rate

Supported

Image quality adjustment

H.264: stream control; MJPEG: JPEG quality control

IP address fi

Blacklist and whitelist

Communication interface

One RJ-45 10/100 Mbit/s self-adaptive Ethernet port and one RS-485 port (PELCO-P or PELCO-D protocol)

Alarm interface

1-channel alarm input and 1-channel alarm output (Phoenix connector)

Analog video output

1-channel RCA interface

Audio encoding format

G.711a/G.711u/G.726

Audio interface

1-channel audio input and 1-channel audio output , 3.5 mm audio port

Voice communication

Voice intercom (a sound pickup is required), voice broadcast, channel- associated voice

Motion detection

Supported

Privacy masks

Supported

Image mirroring

Mirror/Flip/Mirror&Flip

PU access protocol

ONVIF 2.2, HUAWEI SDK

Network protocol

Stream mode

TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTP, HTTPS, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP(V1/V2/V3), 802.1x, QoS

Unicast and multicast

Maximum access users

10 (allows users to obtain a maximum of two channels of 1080P video streams at the same time)

Local storage

Micro SD cards (confi ed additionally); A maximum capacity of 32 GB; Speed class: ≥ 4; Supports video buffering

Security mode

User name and password authentication, 802.1x (MD5 Challenge), and PKI digital certifi

Media security

Stream encryption using the AES128/192/256 encryption algorithm

Data transmission optimization

Bit rate stream smoothing, Self-adaptive bandwidth, MTU confi ation, QoS confi ation

Alarm linkage

Stream mode

Supported; When detecting alarms such as motion detection, lens mask, and Boolean value input, the system automatically links Boolean value output.

Browser

IE8/IE9/IE10, Windows XP, Windows 7, Windows 8

Quick confi ation

Typical scenarios

Power supply

DC12V± 25%， DC24V±25%，AC24V±30%

Power consumption

Typical consumption: 2.5 W; Maximum consumption: 4 W (IR-CUT switchover)

Operating environment

Operating temperature: -10ºC ~ 60ºC; Operating humidity: Relative humidity:5% to 90% (without condensation)

Net weight

450g

Product Appearances (mm)

143.5×80.7×62.5, without lens
