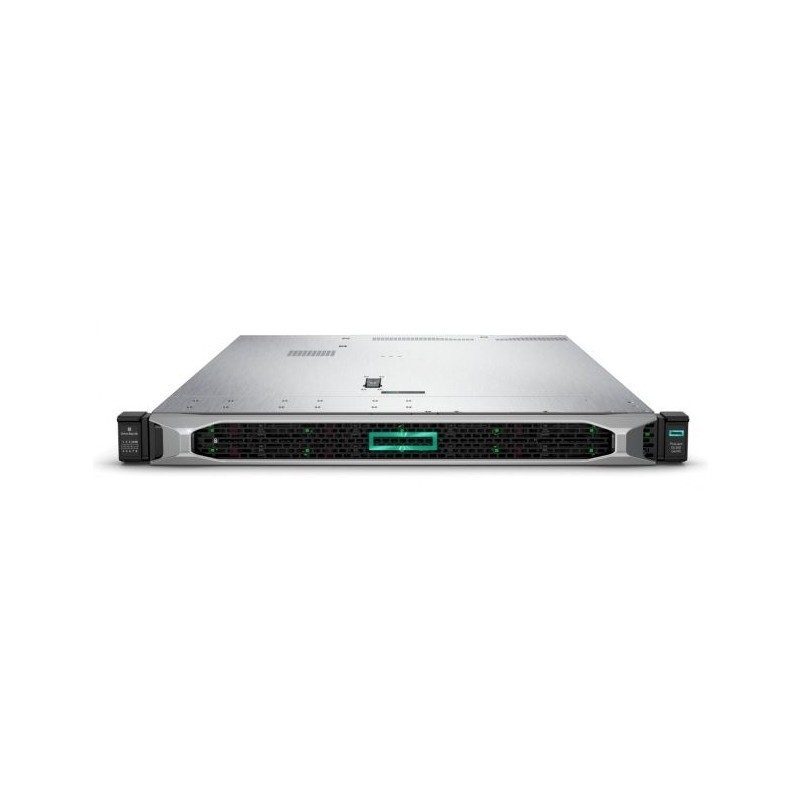

HPE DL360 8 SFF CTO P19766-B21

HPE DL360 Specification

Dimensions (H x W x D)

4.29 x 43.46 x 70.7 cm (1.69 x 17.11 x 27.83 in)

Weight (Approximate)

Minimum: 13.04 kg (28.74 Ib)

(1 Drive, 1 processor, 1 power supply, 2 heatsinks, 1 Smart Array controller, and 5 fans)

Maximum: 16.27 kg (35.86 Ib)

(10 Drives, 2 processors, 2 power supplies, 2 heatsinks, 1 Smart Array controller and 7 fans)

Input requirement (Per power supply)

Rated line voltage

For 1600 W (Platinum): 200-240 V ac

For 800 W (Titanium) power supply: 200-240 V ac

For 800 W (Platinum): 100-240 V ac

For 800 W (Universal) power supply: 200-277 V ac

For 800 W (-48 V dc): (-40) to (-72) V dc

500 W (Platinum) power supply: 100-240 V ac

BTU rating

Maximum:

For 1600 W power supply:

5918 BTU/hr (At 200 V ac)

5888 BTU/hr (At 220 V ac)

5884 BTU/hr (At 240 V ac)

For 800 W (Titanium) power supply:

2905 BTU/hr (At 200 V ac)

2899 BTU/hr (At 220 V ac)

2893 BTU/hr (At 240 V ac)

For 800 W (Platinum) power supply:

3067 BTU/hr (At 100 V ac)

2958 BTU/hr (At 200 V ac)

2949 BTU/hr (At 240 V ac)

For 800 W (Universal) power supply:

2964 BTU/hr (At 200 V ac)

2951 BTU/hr (At 230 V ac)

2936 BTU/hr (At 277 V ac)

For 800 W (-48) V dc power supply:

2983 BTU/hr (At (-40) V dc))

2951 BTU/hr (At (-48) V dc)

2912 BTU/hr (At (-72) V dc)

For 500 W (Platinum) power supply:

1902 BTU/hr (At 100 V ac)

1840 BTU/hr (At 200 V ac)

1832 BTU/hr (At 240 V ac)

Power supply output (Per power supply)

Rated steady-state power:

For 1600 W power supply:

1600 W (At 240 V ac)

1600 W (At 240 V dc) for china only

For 800 W (Titanium) power supply:

800 W (At 200 V ac)

800 W (At 240 V ac)

800 W (At 240 V dc) for china only

For 800 W (Platinum) power supply:

800 W (At 100 V ac)

800 W (At 240 V ac)

800 W (At 240 V dc) input for china only

For 800 W (-48) V dc power supply:

800 W (At (-40) V dc)

800 W (At (-72) V dc)

For 800 W (Universal) power supply:

800 W (At 200 V ac)

800 W (At 277 V ac)

For 500 W (Platinum) power supply:

500 W (At 100 V ac)

500 W (At 240 V ac)

500 W (At 240 V dc) input for china only

Maximum peak power:

For 1600 W power supply:

1600 W (At 200 to 240 V ac)

1600 W (At 240 V dc) input for china only

For 800 W (Titanium) power supply:

800 W (At 200 V ac)

800 W (At 240 V ac)

800 W (At 240 V dc) for china only

For 800 W (Platinum) power supply:

800 W (At 100 V ac)

800 W (At 240 V ac)

800 W (At 240 V dc) input for china only

For 800 W (Universal) power supply:

800 W (At 200 V ac)

800 W (At 277 V ac)

For 800 W (-48) V dc power supply:

800 W (At (-40) V dc)

800 W (At (-72) V dc)

For 500 W (Platinum) power supply:

500 W (At 100 V ac)

500 W (At 240 V ac)

500 W (At 240 V dc) input for china only
