H83MMA5620A3, Huawei GPON Remote Optical Access Equipment, 8FE+8POTS/Single GPON Uplink/America Power Cable

Brand: Huawei
Model: H83MMA5620A3

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H83MMA5620A3, Huawei GPON Remote Optical Access Equipment, 8FE+8POTS/Single GPON Uplink/America Power Cable

100% Genuine Ready to Ship

Overview

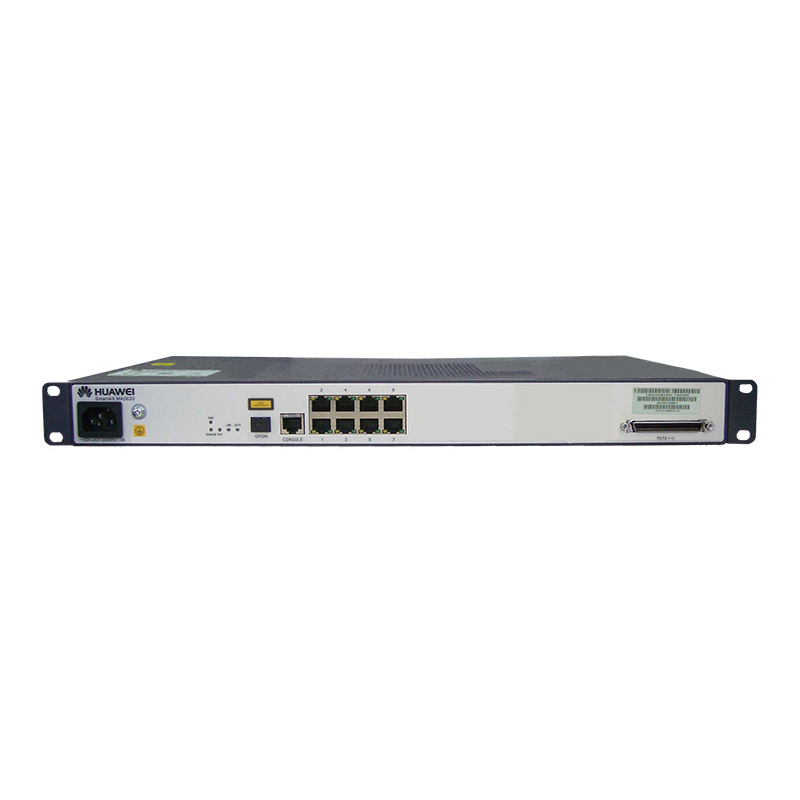

Huawei H83MMA5620A3 Overview

Huawei H83MMA5620A3 is a carrier-grade GPON remote optical access equipment designed for FTTx aggregation in American deployments. It provides 1 x GPON network-side uplink and 8 x FE plus 8 x POTS user-side ports to simplify triple-play access for SMB and residential users. Fanless passive cooling and broad 5%–95% non-condensing humidity tolerance enhance reliability in space-constrained cabinets. Flexible 110V/220V AC power and 4 kV lightning protection on LAN and POTS ports help protect services in harsh last-mile environments.

Product Highlights

1 GPON

Optical Uplink

8FE+8POTS

Access Ports

4kV

Surge Protect

Product Applications Scenarios

Enterprise Network

Provides reliable GPON aggregation with 8FE+8POTS, simplifying converged voice and data access for branch offices while reducing last-mile wiring costs by up to 30%.

Service Providers

Enables telcos to extend GPON services to remote buildings using compact fanless access, cutting on-site power and maintenance overhead for multi-tenant deployments.

Public Infrastructure

Delivers robust FE and POTS connectivity for campuses and public facilities, with 4kV surge protection improving uptime in outdoor cabinets and street cabinets.

Product Features Comparison


Model	H83MMA5620A3, Huawei GPON Remote Optical Access Equipment, 8FE+8POTS/Single GPON Uplink/America Power Cable	H87ZMA587106, Huawei Multi-service Access Equipment, 4GE/10G GPON/With UK Adapter	H35M8242HAU1, Huawei EchoLife HG8242H Broadband Network Terminal, GPON Terminal/SC/APC-CATV/AU Adapter	C3850-NM-BLANK, Cisco 3850 Series Network Module, Blank slot cover/No ports/Accessory
Brand	Huawei	Huawei	Huawei	Cisco
Compatible Models	n/a	n/a	n/a	Cisco 3850 Series switches
Accessory Type	GPON Remote Optical Access Equipment	10G GPON Multi-service Access Equipment	Broadband Network Terminal	Network Module
Connector Type	1 x GPON; 8 x FE; 8 x POTS	10G GPON/GPON Port/GE (optical)/GE (electric)	4GE + 2POTS + CATV; GPON Port; Ethernet Port; POTS Port; CATV Port	n/a
Mounting Method	n/a	n/a	n/a	n/a
Certification	n/a	n/a	n/a	n/a

Optional Add-ons

Model Number	Description

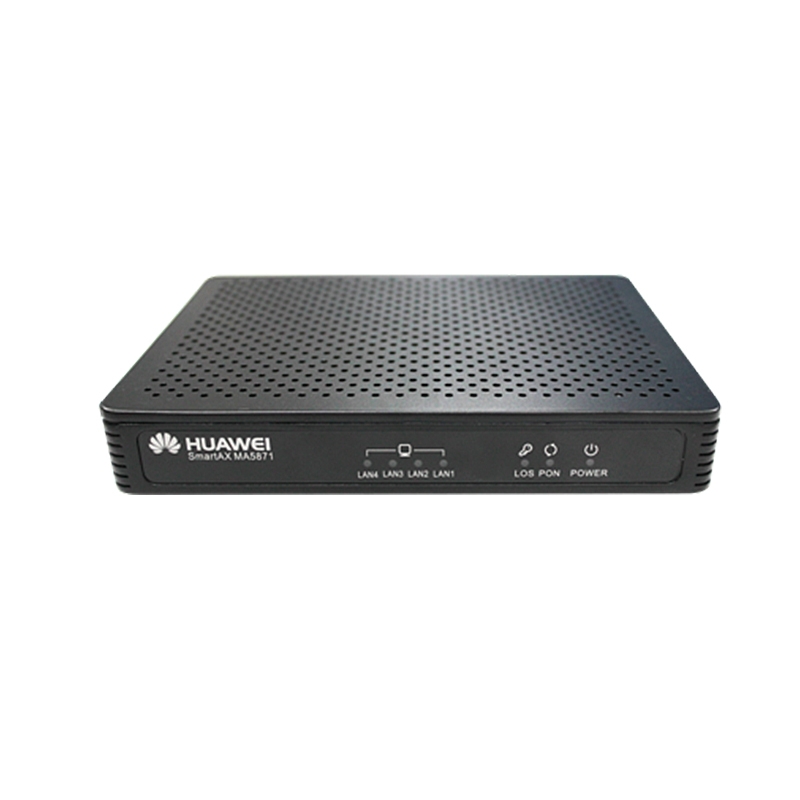

H87ZMA587106	Huawei MA5871 10G GPON multi-service access unit with 4GE user ports and UK power adapter, ideal for central office aggregation.

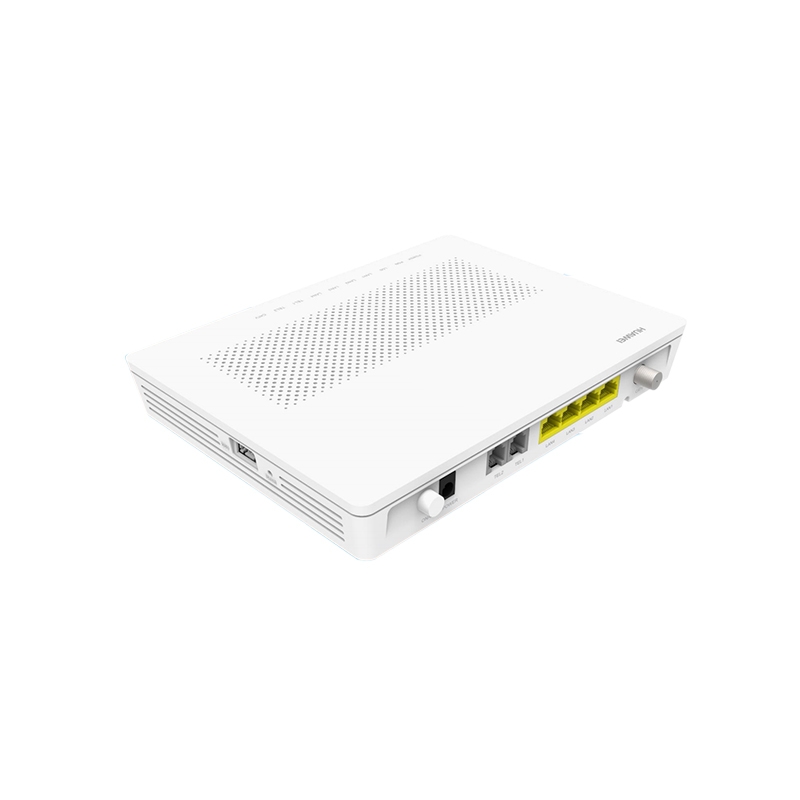

H35M8242HAU1	Huawei EchoLife HG8242H ONT with 4GE, 2POTS and CATV, providing CPE termination for GPON-based access networks.
CVDSL6416	Huawei CVDSL series 64-channel VDSL subscriber cable, 15m, supporting high-speed copper drops from access equipment.

Quality Certifications

Specification

Huawei H83MMA5620A3 Specification

Model

H83MMA5620A3

Brand

Huawei

Network-side Port

1 x GPON

User-side Ports

8 x FE + 8 x POTS

Operating Temperature

40°C to 55°C; start-up at -25°C

Humidity

5% to 95% (non-condensing)

Heat Dissipation Mode

No fans; passive cooling

Power Supply

AC: 110V, 220V

Lightning Protection Capability

LAN: 4 kV; POTS: 4 kV

Dimensions (H x W x D)

43.6mm x 442mm x 220mm

Get more information

Discover unbeatable prices and fast shipping for the H83MMA5620A3, Huawei GPON Remote Optical Access Equipment, 8FE+8POTS/Single GPON Uplink/America Power Cable . Access the detailed H83MMA5620A3, Huawei GPON Remote Optical Access Equipment, 8FE+8POTS/Single GPON Uplink/America Power Cable datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are included?

The H83MMA5620A3 comes with an American power cable and may require additional network cables for all ports.

How does the H83MMA5620A3 compare to similar products?

It provides robust features and reliability at a competitive price, making it ideal for diverse deployment scenarios.

Is the H83MMA5620A3 compatible with other network equipment?

Yes, it is highly compatible with a wide range of Huawei and third-party network equipment.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H83MMA5620A3?

The H83MMA5620A3 offers high performance in GPON remote optical access with features like 8FE+8POTS, making it a cost-effective solution for ISPs and network managers.

What are the primary features of H83MMA5620A3?

The H83MMA5620A3 includes 8 Fast Ethernet ports, 8 POTS ports, and a single GPON uplink, providing versatile connectivity options.

What are the common application scenarios?

This product is ideal for residential and business internet services, including VoIP, data transmission, and video services.

How do I install the H83MMA5620A3?

Installation is straightforward; mount the unit in a secure location, connect the power cable, and configure network settings as required.

Does the H83MMA5620A3 require frequent upgrades?

The H83MMA5620A3 may need periodic firmware updates to ensure optimal performance and security.

Are there alternatives to the H83MMA5620A3?

Alternatives include other models in the Huawei GPON remote optical access series, depending on specific network requirements.

What are common troubleshooting tips?

Ensure all cables are securely connected, check power supply, and verify configuration settings if network issues arise.
