H35M8240HNi1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English

Brand: Huawei
Model: H35M8240HNi1

$446.00

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H35M8240HNi1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English

100% Genuine Ready to Ship

$446.00

Overview

Huawei H35M8240HNi1 Overview

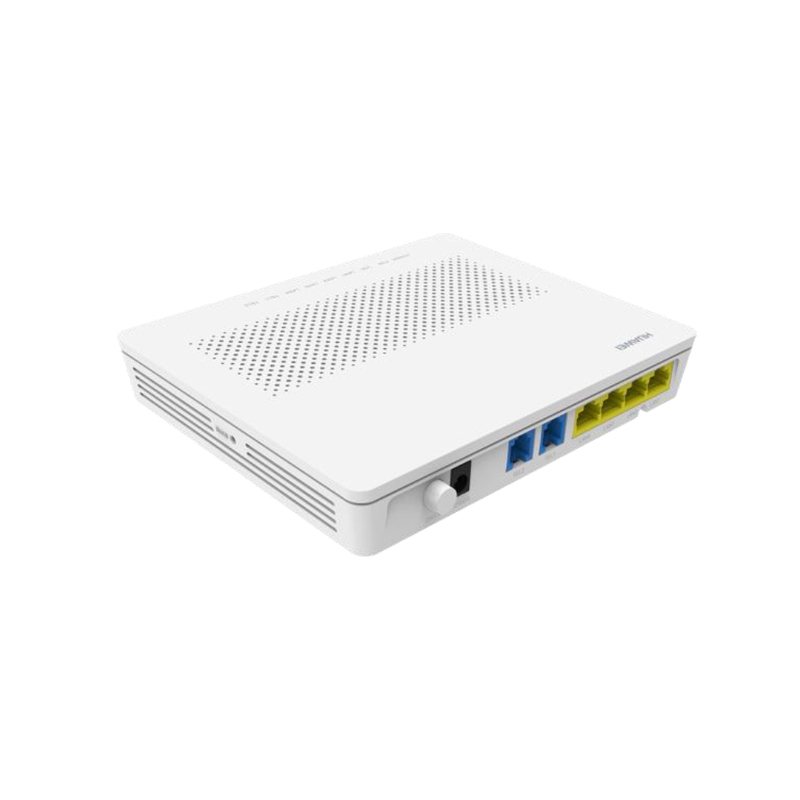

The Huawei H35M8240HNi1 HG8240H is a GPON terminal designed for high-speed fiber access in residential and small business networks. With a compact 176mm x 138.5mm x 28mm footprint and GPON Class B+ optics supporting bi-directional FEC and SR-DBA/NSR-DBA, it delivers stable upstream and downstream bandwidth. Four GE Ethernet ports enable flexible Layer 2 services with VLAN, QinQ, and IPv6 transparency, while two POTS ports provide voice with G.711/G.729/G.722, T.38 fax, and emergency call support via SIP or H.248. Variable-length OMCI, Web UI, and dual-system backup simplify O&M.

Product Highlights

4GE+2POTS

Port Access

10W Max

Low Power

-27dBm

GPON Sens

Product Applications Scenarios

Enterprise Network

As a GPON terminal with 4GE and voice, it aggregates branch users to the optical core, reducing cabling costs and simplifying enterprise access edges.

Service Providers

SR-DBA, NSR-DBA and OMCI-based O&M let ISPs deliver triple-play GPON services and cut on-site maintenance visits by improving remote diagnostics.

Edge & IoT

Its 4GE ports with VLAN and QoS features backhaul edge gateways and IoT controllers over GPON, enhancing reliability for smart building deployments.

Product Features Comparison


Model	H35M8240HNi1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English	H87ZMA587114, Huawei GE Multi-service Access Equipment, 4GE/Europe Adapter/Chinese&English Docs	OSPL33400, Huawei OSPL Splitter, 1:4 LC/APC/40mm/1.5m	A0RFCON04, Huawei Coaxial Connector, N type, 50 ohm, Straight, Dual-female
Brand	Huawei	Huawei	Huawei	Huawei
Compatible Models	n/a	n/a	n/a	For Cable with N type connector
Accessory Type	GPON Terminal	GE Multi-service Access Equipment	Bare Optical Splitter	Coaxial Connector
Connector Type	SC/APC (GPON)	n/a	LC/APC	Dual-female Adapter
Mounting Method	n/a	n/a	n/a	n/a
Certification	n/a	n/a	n/a	RoHS Compliant

Optional Add-ons

Model Number	Description
OSPL33400	Huawei OSPL33400 1:4 LC/APC bare optical splitter for GPON FTTx distribution.
A0RFCON04	Huawei A0RFCON04 N-type 50 ohm dual-female coaxial connector for RF cabling.
Cable-120ohm	Huawei Cable-120ohm G.703 20m 120 ohm shielded cable for telecom backhaul links.

Quality Certifications

Specification

Huawei H35M8240HNi1 Specification

Model

H35M8240HNi1

Brand

Huawei

Dimensions (H x W x D) (mm)

176mm x 138.5mm x 28mm

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 0.5 A

Static power consumption

Maximum power consumption

10W

Ports

4GE + 2POTS

Indicators

POWER/PON/LOS/LAN/TEL

GPON Port

• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA

Ethernet Port

• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Local switching/isolation based on Ethernet ports • Transparent transmission of IPv6 packets at Layer 2

POTS Port

• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)

Smart Services

• Association of one account with two POTS ports • L2 forwarding: 1G uplink, 2G downlink

Smart interconnection

• SIP/H.248 auto-negotiation

Smart O&M

• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Call emulation, and circuit test and loop-line test

QoS

• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p

Power Saving

• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4

Security

• MAC address filtering

Common O&M

• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check

Multicast

• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation

Get more information

Discover unbeatable prices and fast shipping for the H35M8240HNi1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English . Access the detailed H35M8240HNi1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are included with the H35M8240HNi1 GPON Terminal?

The H35M8240HNi1 GPON Terminal package typically includes the terminal unit, a UK standard power adapter, SC/APC fiber-optic cables, and an installation guide.

How does the H35M8240HNi1 compare with other Huawei GPON Terminals?

The H35M8240HNi1 is tailored for the Nigerian market with specific features like the UK adapter and English interface, offering a unique combination of cost-efficiency and performance for local applications.

Can the H35M8240HNi1 GPON Terminal be used in commercial settings?

Yes, the H35M8240HNi1 GPON Terminal can be used in both residential and small commercial settings where reliable and high-speed internet connectivity is required.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H35M8240HNi1 GPON Terminal for system integrators?

The H35M8240HNi1 GPON Terminal offers high performance at a competitive price, making it a cost-effective choice for system integrators looking to optimize budgets.

What are the main features of the H35M8240HNi1 GPON Terminal?

The H35M8240HNi1 GPON Terminal features high-speed data transmission, SC/APC ports, a UK standard adapter, and an English interface, specifically designed for the Nigerian market.

What application scenarios is the H35M8240HNi1 GPON Terminal suitable for?

The H35M8240HNi1 GPON Terminal is ideal for residential and small business internet connectivity applications requiring stable and high-speed fiber-optic internet services.

How do you install the H35M8240HNi1 GPON Terminal?

Installation involves connecting the terminal to fiber-optic cables using SC/APC connectors, configuring the settings via the English interface, and ensuring power supply with the UK standard adapter.

Does the H35M8240HNi1 GPON Terminal require any upgrades?

The H35M8240HNi1 GPON Terminal may require firmware updates to optimize performance and security as provided by Huawei.

Are there alternative GPON Terminals to the H35M8240HNi1?

Alternative models from Huawei include the HG8347R and HG8245H, which also support high-speed fiber-optic connections but may have different port configurations and features.

How do you troubleshoot common issues with the H35M8240HNi1 GPON Terminal?

Common troubleshooting steps include checking the fiber connection, ensuring correct power supply, resetting the device, and consulting the user manual for specific error codes.
