H35M8240HNC1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English

Brand: Huawei
Model: H35M8240HNC1

$404.00

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H35M8240HNC1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English

100% Genuine Ready to Ship

$404.00

Overview

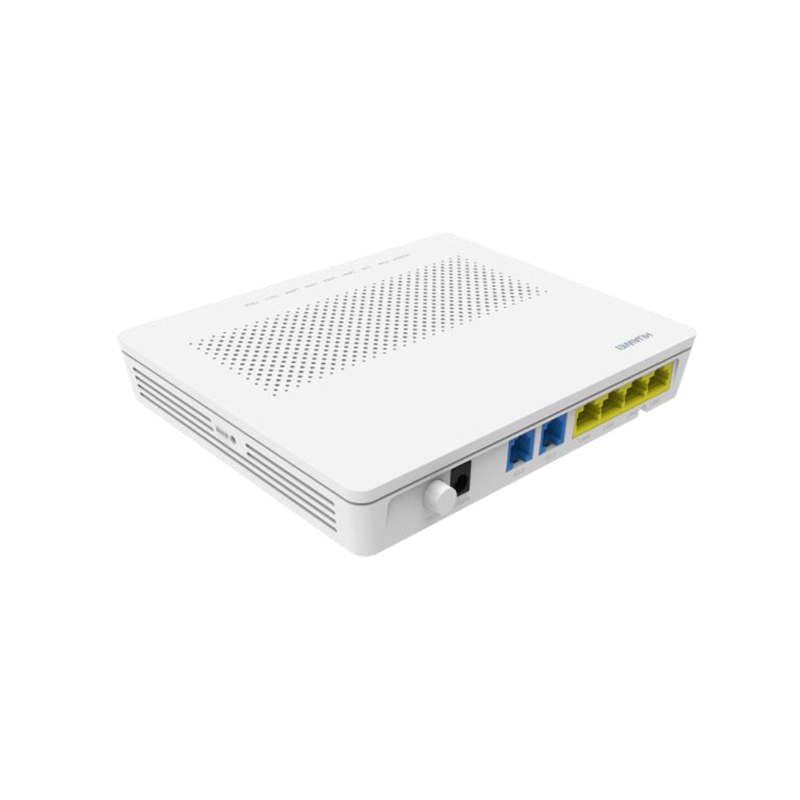

Huawei H35M8240HNC1 Overview

The Huawei H35M8240HNC1 HG8240H is a carrier-grade GPON terminal designed for fiber-to-the-home and small enterprise access. It delivers reliable gigabit Ethernet and voice services through 4GE and 2POTS ports, with Class B+ GPON optics and robust Layer 2 features. Compact dimensions and low 10W maximum power consumption suit dense deployments, while OMCI and Web UI simplify operations for service providers, integrators, and end users.

Product Highlights

4GE+2P

Access Ports

10W

Max Power

-27dBm

GPON Optics

Product Applications Scenarios

Service Providers

Delivers GPON-based triple-play over 4GE+2POTS, enabling operators to simplify CPE, cut truck rolls by up to 30% and standardize FTTH access across diverse customer sites.

Enterprise Network

Acts as a high-speed ONT for branch offices, using VLAN, QoS and IPv6 transparency to prioritize critical applications and lower WAN access costs versus legacy links.

Public Infrastructure

Supports municipal or campus broadband with low 10W draw and extended humidity range, improving availability while reducing long-term energy and maintenance expenses.

Product Features Comparison


Model	H35M8240HNC1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English	H35M8240HJT1, Huawei EchoLife HG8240H GPON Terminal, European Adapter/SC APC/For Jazztel	H35M8040HUK1, Huawei HG8040H GPON Terminal, UK Standard Adapter/English/SC APC	HG8M8010HSOL, Huawei HG8010H GPON Terminal, SC/APC, European Adapter, English
Brand	Huawei	Huawei	Huawei	Huawei
Port Configuration	n/a	n/a	n/a	n/a
Switching Capacity	n/a	n/a	n/a	n/a
Forwarding Rate	n/a	n/a	n/a	n/a
PoE Budget	n/a	n/a	n/a	n/a
Stacking Capability	n/a	n/a	n/a	n/a

Optional Add-ons

Model Number	Description
HW-ONT-PSU-12V1A-UK	Huawei 12V 1A UK power adapter for HG8240H/HG8040H GPON ONTs
HW-SC-APC-PATCH-3M	Huawei SC/APC single-mode fiber patch cord, 3m, for GPON ONT uplink
HW-ONT-WALL-MOUNT-KIT	Huawei wall-mount bracket kit for HG8240H series GPON terminals

Quality Certifications

Specification

Huawei H35M8240HNC1 Specification

Model

H35M8240HNC1

Brand

Huawei

Dimensions (H x W x D) (mm)

176mm x 138.5mm x 28mm

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 0.5 A

Static power consumption

Maximum power consumption

10W

Ports

4GE + 2POTS

Indicators

POWER/PON/LOS/LAN/TEL

GPON Port

• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA

Ethernet Port

• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Local switching/isolation based on Ethernet ports • Transparent transmission of IPv6 packets at Layer 2

POTS Port

• Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)

Smart Services

• Association of one account with two POTS ports • L2 forwarding: 1G uplink, 2G downlink

Smart interconnection

• SIP/H.248 auto-negotiation

Smart O&M

• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Call emulation, and circuit test and loop-line test

QoS

• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p

Power Saving

• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4

Security

• MAC address filtering

Common O&M

• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check

Multicast

• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation

Get more information

Discover unbeatable prices and fast shipping for the H35M8240HNC1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English . Access the detailed H35M8240HNC1, Huawei HG8240H GPON Terminal, SC/APC, UK Standard Adapter, English datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

Which accessories are available for the H35M8240HNC1?

Available accessories include extra power adapters, SC/APC connector cables, and mounting brackets.

How does the H35M8240HNC1 compare to similar products?

The H35M8240HNC1 offers a competitive combination of features, ease of use, and reliability compared to similar GPON terminals.

What is the warranty period for the H35M8240HNC1 GPON terminal?

The H35M8240HNC1 typically comes with a 1-year manufacturer's warranty, subject to terms and conditions.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H35M8240HNC1 GPON terminal?

The H35M8240HNC1 GPON terminal provides excellent cost-effectiveness with high-speed fiber optic internet and extensive features for its price.

What are the main features of the H35M8240HNC1?

The H35M8240HNC1 features include SC/APC connectors, UK standard adapter, 4 GE ports, 2 POTS ports, and Wi-Fi capabilities.

Where can I use the H35M8240HNC1 GPON terminal?

The H35M8240HNC1 is ideal for residential, SOHO, and small enterprise fiber optic internet connections.

How do I install the H35M8240HNC1 GPON terminal?

Installation involves connecting the device to the fiber optic line using SC/APC connectors and configuring it via the web interface.

Does the H35M8240HNC1 need to be upgraded?

Firmware updates for the H35M8240HNC1 can be necessary to ensure optimal performance and security.

Are there any alternative GPON terminals to the H35M8240HNC1?

Alternative products include Huawei's HG8546M and HG8120C, with varying feature sets and price points.

What should I do if the H35M8240HNC1 has no internet connection?

Check the fiber line connection, ensure the device is properly configured, and verify with your ISP for line issues.
