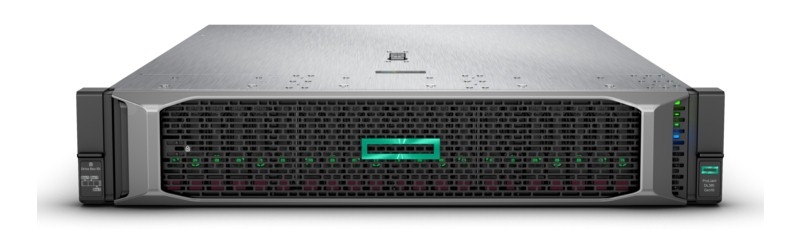

HPE ProLiant DL385 Gen10 Server has an adaptable chassis, including the modular drive bays that can be configured with up to 30 SFF, up to 19 LFF or up to 24 NVMe drive options along with support for up to 3 double wide GPU options.
HPE Smart Array S100i Software RAID ships standard for embedded m.2 boot, and the redesigned HPE Smart Array Essential and Performance RAID Controllers for performance or additional features including the ability to operate in both SAS and HBA mode.
Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 4x10GbE) and fabric so you can adapt and grow to changing business needs.
Table 1 show you the main specification of the DL385 servers.
|
Feature |
Description |
|
Processor Family |
AMD EPYC™ 7000 Series |
|
Processor core available |
32 or 24 or 16 or 8, per processor, depending on model |
|
Processor cache |
32.00 MB L3 64.00 MB L3 |
|
Processor speed |
3.2 GHz, maximum depending on processor |
|
Maximum Memory |
4.0 TB with 128 GB DDR4 |
|
Memory slots |
32 |
|
Memory type |
HPE DDR4 SmartMemory |
|
Memory Standard |
4 TB with 32 x 128 GB 2666MT/S RDIMMs |
|
Memory protection features |
ECC |
|
Drive type |
8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF rear drive optional 24 SFF NVMe optional NVMe support via Express Bay will limit maximum drive capacity |
|
Infrastructure management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses) |
|
Power supply type |
2 Flexible Slot power supplies, maximum depending on model |
|
Network controller |
HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional FlexibleLOM, depending on model |
|
Storage controller |
1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model |
|
System fan features |
Hot-plug redundant fans, standard |
|
Form factor |
2U |
Table 2 show you the main models of the DL385 servers.
|
Model |
Description |
|
HPE ProLiant DL385 Gen10 CTO Mod-X 8 Small Form Factor Server |
|
|
HPE ProLiant DL385 Gen10 CTO Mod-X 8 Large Form Factor Server |
|
|
HPE ProLiant DL385 Gen10 CTO Mod-X 24 Small Form Factor Server |
|
|
HPE ProLiant DL385 Gen10 CTO Mod-X 12 Large Form Factor Server |
|
|
HPE ProLiant DL385 Gen10 7251 1P 16GB-R E208i-a 8SFF SATA 500W PS Entry Server |
|
|
HPE ProLiant DL385 Gen10 7251 1P 16GB-R E208i-a 8LFF SATA 500W PS Entry Server |
|
|
HPE ProLiant DL385 Gen10 7301 1P 32GB-R P408i-a 8SFF SAS 500W PS Base Server |
|
|
HPE ProLiant DL385 Gen10 7401 1P 32GB-R P408i-a 24SFF SAS 800W PS Base Server |
|
|
HPE ProLiant DL385 Gen10 7451 2P 64GB-R P408i-a 8SFF SAS 2x800W PS Perf Server |
