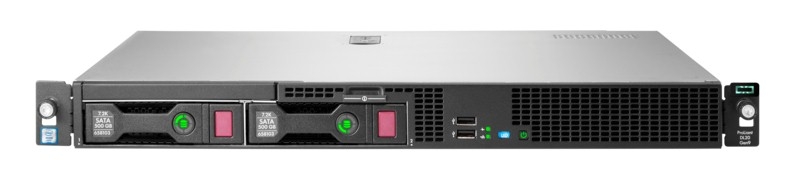

The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel® Pentium®, Core i3 and E3-1200 v5/v6 processors provides a unique blend of enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses and service providers. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.
Table 1 show you the main specification of the DL20 servers.
|
Feature |
Description |
|
Processor Family |
Intel® Xeon® E3-1200 v6 product family Intel® Core™ i3 Intel® Pentium® Intel® Xeon® E3-1200 v5 product family |
|
Processor core available |
4 or 2 |
|
Processor cache |
8MB L3 3MB L3 |
|
Processor speed |
4.0 GHz |
|
Maximum Memory |
64GB |
|
Memory slots |
4 DIMM slots Maximum |
|
Memory type |
HPE Standard Memory |
|
Memory protection features |
Advanced ECC |
|
Infrastructure management |
iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials(optional), iLO Scale-Out(optional) iLO Advanced (optional) |
|
Power supply type |
(2) Entry-Level |
|
Network controller |
1Gb 332i Ethernet Adapter 2 Ports per controller Applicable to all models |
|
Storage controller |
Dynamic Smart Array B140i or H240 Host Bus Adapter or Smart Array P440 Depending on model |
|
System fan features |
Non-hot plug non-redundant |
|
Form factor |
1U |
Table 2 show you the main models of the DL20 servers.
|
Model |
Description |
|
HPE ProLiant DL20 Gen9 G4560 3.5GHz 2-core 8GB-U 2LFF Non-hot Plug 290W PS Entry Server |
|
|
HPE ProLiant DL20 Gen9 E3-1220v6 3.0GHz 4-core 8GB-U B140i 2LFF 290W PS Base Server |
|
|
HPE ProLiant DL20 Gen9 E3-1240v6 3.7GHz 4-core 16GB-U H240 4SFF 290W PS Performance Server |
|
|
HPE DL20 Gen9 NHP 2LFF CTO Server |
|
|
HPE DL20 Gen9 2LFF CTO Server |
|
|
HPE DL20 Gen9 4SFF CTO Server |
|
|
HPE ProLiant DL20 Gen9 E3-1220v5 8GB-U B140i 2LFF Base Server |
|
|
HPE ProLiant DL20 Gen9 G4400 4GB-U Non-hot Plug 2LFF Entry Server |
|
|
HPE ProLiant DL20 Gen9 E3-1240v5 8GB-U H240 4SFF Performance Server |
|
|
HPE ProLiant DL20 Gen9 E3-1240v5 8GB-U H240 4SFF Performance Server |
