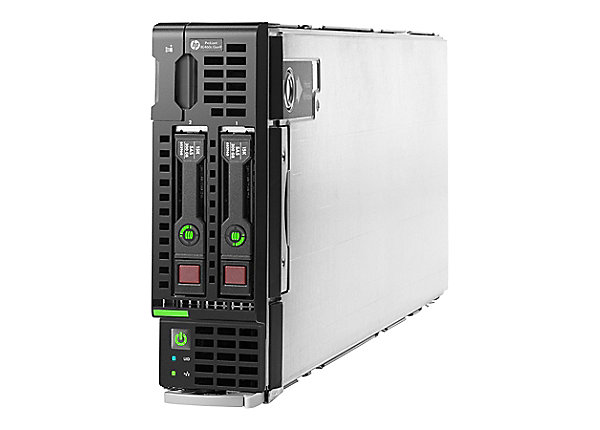

HPE ProLiant BL460c Gen9 Server Blade provides the flexibility to optimize your core IT applications with right-sized storage for the right workload for a lower TCO. All of this is managed by HPE OneView, the converged management platform that accelerates IT service delivery and boosts business performance. The HPE ProLiant BL460c Gen9 Server Blade now offers Intel® Xeon® E5-2600 v4 processors with up to 21% bin-to-bin performance gain over the previous generation, plus 2400 MT/s HPE DDR4 SmartMemory offering up to 33% higher throughput. Additional support includes tiered storage controller options, 12 Gb/s SAS, 20 Gb HPE FlexibleLOMs, support for M.2, NVMe, and HPE ProLiant Persistent Memory options.
Technical Specifications
Table 1 shows the Technical Specifications of HPE ProLiant BL460c Gen9 Server.
|
Processor family |
Intel® Xeon® E5-2600 v3 product family Intel® Xeon® E5-2600 v4 product family |
|
Processor speed |
3.5 GHz |
|
Number of processors |
2 or 1 |
|
Processor core available |
4 or 6 or 8 or 10 or 12 or 14 or 16 or 18 or 20 or 22 |
|
Processor cache |
10 MB L3 15 MB L3 20 MB L3 25 MB L3 30 MB L3 35 MB L3 40 MB L3 45 MB L3 50 MB L3 55 MB L3 |
|
Form factor chassis |
Blade |
|
Drive description |
2 SFF SAS/SATA/SSD or 2 SFF NVMe (optional) SSD |
|
Expansion slots |
2 maximum, for detailed descriptions reference the QuickSpecs |
|
Memory type |
HPE DDR4 SmartMemory |
|
Memory slots |
16 DIMM slots |
|
Maximum memory |
2 TB, using 128 GB DIMMs |
|
Network controller |
10 Gb HPE 536FLB FlexFabric adapter, 2 ports per controller or 20 Gb HPE 650FLB FlexFabric adapter, 2 ports per controller, depending on model |
|
Storage controller |
HPE H244br Host Bus Adapter or HPE Smart Array P244br. depending on model |
|
Power supply type |
(6) Enclosure-based |
|
System fan features |
Hot plug enclosure-based |
|
Infrastructure management |
Standard: HPE iLO Management with Intelligent Provisioning Optional: HPE iLO Advanced for BladeSystems, HPE OneView Advanced, and HPE Insight Control |
Table 2 shows the common model of HPE ProLiant BL460c Gen9 Server.
|
HPE BL460c Gen10 Xeon-G 5122 FIO Kit |
|
|
HPE BL460c Gen10 Xeon-G 6136 Kit |
|
|
HPE BL460c Gen10 Xeon-G 6136 FIO Kit |
|
|
HPE BL460c Gen10 Xeon-G 6138 Kit |
|
|
HPE BL460c Gen10 Xeon-G 6138FIO Kit |
|
|
HPE BL460c Gen10 Xeon-G 6140 Kit |
