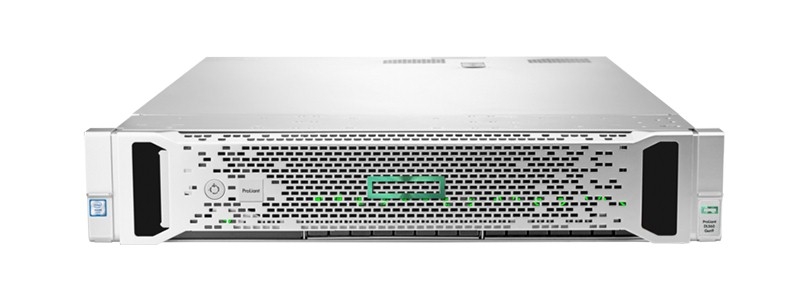

HPE ProLiant DL560 Gen9 Server is a high-density four-socket (4S) server with balanced performance, increased scalability and reliability, all in a 2U chassis.
Supporting the latest Intel® Xeon® E5-4600 v4/v3 processors, the HPE ProLiant DL560 Gen9 Server offers greater processing power, along with increased storage capacity, I/O bandwidth of up to seven PCIe Gen 3.0 slots, up to 3 TB of memory, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 4.
The HPE ProLiant DL560 Gen9 Server is the ideal server for virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.
Table 1 shows the main specification of HPE DL560 Gen9 server.
|
Feature |
Description |
|
Processor Family |
Intel® Xeon® E5-4600 v4 product family Intel® Xeon® E5-4600 v3 product family |
|
Processor core available |
22 or 18 or 16 or 14 or 12 or 10 or 8 or 6 |
|
Processor cache |
25MB L3 30MB L3 35MB L3 40MB L3 45MB L3 55MB L3 |
|
Processor speed |
2.9GHz |
|
Maximum Memory |
3.0 TB |
|
Memory slots |
48 DIMM slots Maximum |
|
Memory type |
DDR4 SmartMemory |
|
Memory protection features |
Advanced ECC and DIMM Address/Parity Protection Memory Online Spare Mode Memory Lock Step Mode |
|
Infrastructure management |
iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), HPE OneView Advanced (optional), HPE Insight Control (optional) |
|
Power supply |
(2) Common Slot |
|
Expansion slots |
(7) Maximum |
|
Network controller |
(1) 1Gb 331FLR Ethernet Adapter 4 Ports per controller or 10Gb 533FLR-T FlexFabric Adapter 2 Ports per controller Depending on model |
|
Storage controller |
Dynamic Smart Array B140i Smart Array P440ar Smart Array P840 Depending on model |
|
System fan features |
Hot plug redundant standard |
Table 2 shows the main models of HPE DL560 Gen9 servers.
|
Model |
Description |
|
HPE ProLiant DL560 Gen9 E5-4610v3 2P 32GB-R B140i 8SFF SATA 1200W PS Entry Server |
|
|
HPE ProLiant DL560 Gen9 E5-4620v3 2P 64GB-R P440ar/2GB 8SFF 2x1200W RPS Base Server |
|
|
HPE ProLiant DL560 Gen9 E5-4640v3 4P 128GB-R P840/4GB 16SFF 2x1200W RPS Perf Server |
|
|
HPE ProLiant DL560 Gen9 E5-4610v4 2P 32GB-R B140i 8SFF SATA 1200W PS Entry Server |
|
|
HPE ProLiant DL560 Gen9 E5-4620v4 2P 64GB-R P440ar/2GB 8SFF 2x1200W RPS Base Server |
|
|
HPE ProLiant DL560 Gen9 E5-4640v4 4P 128GB-R P840/4GB 16SFF 2x1200W RPS Perf Server |
|
|
HPE ProLiant DL560 Gen9 E5-4669v4 2P 64GB-R P440ar/2G 8SFF 2x1200W RPS Server |
|
|
HPE ProLiant DL560 Gen9 E5-4667v4 2P 64GB-R P440ar/2G 8SFF 2x1200W RPS Server |
|
|
HPE ProLiant DL560 Gen9 E5-4627v4 2P 64GB-R P440ar/2G 8SFF 2x1200W RPS Server |
|
|
HPE ProLiant DL560 Gen9 E5-4655v4 2P 64GB-R P440ar/2G 8SFF 2x1200W RPS Server |
