Huawei S5700/S5720 Series SMB Network Solution
A SMB network typically mixed and matched several brands of switches interconnected together when it grows from smaller into a bigger one network infrastructure. The switches are usually un-configured and badly managed. When there is a network outage there is no trace to the cause of the problem.
There is a detailed example of a proposed network solution comprising Huawei S5720 as core, and S5700 as access layer switches. It is a very cost effective and well managed infrastructure for SMB network.
Huawei two-tier network infrastructure, which includes a stack of two S5720 core switches, and a stack of several S5700 switches.

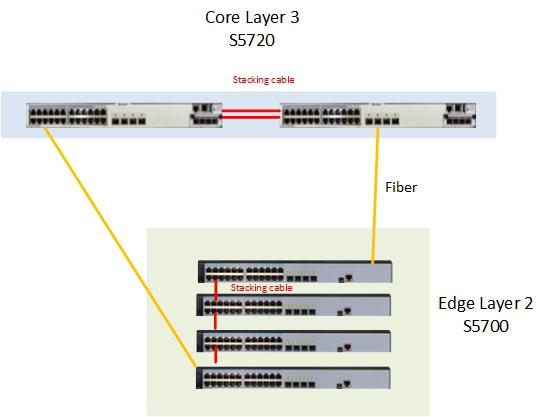

Network Diagram
Solution Highlights
- All gigabit ports for core, access switches ports
- Core switches stacked and managed as a single unit
- Access switches stacked and managed as a single unit
- Core switch redundancy
- Core switch supports layer 3 switching
- Scalability–The S5700-SI supports intelligent stacking (iStack). Multiple S5700-SI can be connected with stack cables to set up a stack, which functions as a virtual switch
Equipment List
|
Item |
Description |
Qty |
|
1 |
S5720-28P-SI Bundle (24 Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 Gig SFP,with 150W AC power supply) |
2 |
|
2 |
Ethernet Stack Interface Card (Including Stack Card,100cm Stack Cable) |
2 |
|
3 |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.5km,LC) |
2 |
|
4 |
S5700-52P-LI-AC (48 Ethernet 10/100/1000 ports,4 Gig SFP,AC 110/220V) |
2 |
|
5 |
SFP+,10G,High Speed Direct-attach Cables, 1m,SFP+20M,CC8P0.254B (S),SFP+20M,Used indoor |
2 |
|
6 |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.5km,LC) |
2 |
|
7 |
LC/LC MMF Fiber Patch Cord, 2 meter |
2 |
