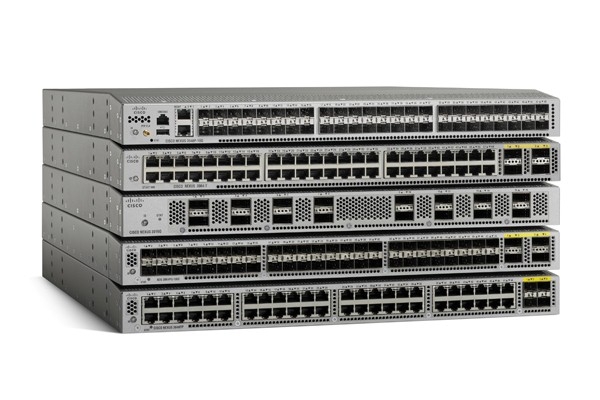

The Cisco Nexus 3000 Series offers low-latency, highly programmable, high-density switches. These compact fixed switches are excellent for general-purpose deployments, high-performance computing (HPC), high-frequency trading (HFT), massively scalable data center (MSDC), and cloud networks.
Cisco Nexus 3000 Series Switches, Get top-of-rack, Layer 2 and 3 switching
The following tables compare Cisco Nexus 3000 Series models, which help you learn about the similarities and differences of the models within this 3000 series.
Nexus 3048
|
|
Cisco Nexus 3048 |
|
VXLAN Capability |
No |
|
OpenFlow Support |
Yes |
|
Rack unit (RU) |
1 |
|
Switching capacity |
176 Gbps |
|
Interface Type |
48 RJ-45 and 4 SFP+ |
|
Maximum 1 GE ports |
Up to 48 |
|
Maximum 10 GE ports |
4 |
|
Maximum 40 GE ports |
0 |
|
Switch latency |
2.7 to 7.2 microseconds |
|
Line-rate traffic throughput (both Layer 2 and 3) on all ports |
Yes |
|
Redundant and hot-swappable power supply and fans |
Yes |
|
Airflow |
Front-back and back-front |
Compare Nexus 3100 Models
|
|
Cisco Nexus 3132Q (Eos)/3132Q-X |
Cisco Nexus 3164Q |
Cisco Nexus 31128PQ |
||
|
Virtual extensible LAN (VXLAN) capable |
Bridging |
Bridging |
Bridging |
Bridging |
Bridging |
|
OpenFlow support |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Rack unit (RU) |
1 |
2 |
1 |
1 |
2 |
|
Switching capacity |
2.56 Tbps |
5.12 Tbps |
1.44 Tbps |
1.44 Tbps |
2.56 Tbps |
|
Interface-type |
32 QSFP+ |
64 QSFP+ |
48 SFP+ and 6 QSFP+ |
48 RJ-45 and 6 Quad Small Form-Factor Pluggable Plus (QSFP+) |
96 Small Form Factor Pluggable+ and 8 Quad SFP+ transceivers |
|
Maximum 1 Gigabit Ethernet (GE) ports |
29 |
None |
48 |
48 |
96 |
|
Maximum 10 GE ports |
104 |
256 |
72 |
72 |
96 |
|
Maximum 40 GE ports |
32 |
64 |
6 |
6 |
8 |
Compare Nexus 3100V Models
|
|
Cisco Nexus 31108PC-V |
Cisco Nexus 31108TC-V |
Cisco Nexus 3132Q-V |
|
Virtual extensible LAN (VXLAN) capable |
Bridging and Routing |
Bridging and Routing |
Bridging and Routing |
|
Shared Buffer Space |
16 MB |
16 MB |
16 MB |
|
Openflow support |
Yes |
Yes |
Yes |
|
Rack unit (RU) |
1 |
1 |
1 |
|
Switching capacity |
2.16 Tbps |
2.16 Tbps |
2.56 Tbps |
|
Interface-type |
48 SFP |
48 RJ-45 |
32 QSFP |
|
Maximum 1 Gigabit Ethernet (GE) ports |
48 |
48 |
29 |
|
Maximum 10 GE ports |
72 |
72 |
104 |
|
Maximum 40 GE ports |
6 |
6 |
32 |
|
Maximum 100 GE ports |
6 |
6 |
0 |
Compare Nexus 3200 Models
|
|
Cisco Nexus 3232C |
Cisco Nexus 3264Q |
|
VXLAN Capability |
Bridging |
Bridging |
|
Openflow Support |
Yes |
Yes |
|
Rack unit (RU) |
1 |
2 |
|
Switching capacity |
6.4-Tbps |
5.12 Tbps |
|
Interface Type |
32 QSFP28 |
64 QSFP+ |
|
Maximum 10 GE ports |
128 |
128 |
|
Maximum 25 GE ports |
128 |
n/a |
|
Maximum 40 GE ports |
32 |
64 |
|
Maximum 50 GE ports |
64 |
n/a |
|
Maximum 100 GE ports |
32 |
n/a |
|
Switch latency |
450ns |
515-700ns |
|
Line-rate traffic throughput (both Layer 2 and 3) on all ports |
Yes* |
Yes* |
|
Redundant and hot-swappable power supply and fans |
Yes |
Yes |
|
Air flow |
Port-side intake or port-side exhaust |
Port-side intake or port-side exhaust |
|
*Packets greater than 250 Bytes |
|
|
Compare Nexus 3500 Models
|
|
3524 (eos)/3524-X |
3548 (eos)/3548-X |
|
Algo Boost-capable (NAT, Active Buffer Monitoring) |
Yes |
Yes |
|
VXLAN Capable |
No |
No |
|
Multicast NAT |
Only 3524-X |
Only 3548-X |
|
Latency Monitoring |
Only 3524-X |
Only 3548-X |
|
OpenFlow support |
Yes |
Yes |
|
Rack unit (RU) |
1 |
1 |
|
Switching capacity |
480 Gbps |
960 Gbps |
|
Interface-type |
24 SFP+ |
48 SFP+ |
|
Maximum 1 GE ports |
24 enabled (48 max) |
48 |
|
Maximum 10 GE ports |
24 10G SFP+ ports. Additional 24 ports via license |
48 |
|
Maximum 40 GE ports |
6 |
12 |
|
Switch latency |
Sub-250ns |
Sub-250ns |
|
Line-rate traffic throughput (both Layer 2 and 3) on all ports |
Yes |
Yes |
|
Redundant and hot-swappable power supply and fans |
Yes |
Yes |
|
Airflow |
Front-back and back-front |
Front-back and back-front |
