Cisco Nexus 7700 Series Overview
The Cisco Nexus® 7000 Series Switches are the foundation of the Cisco® Unified Fabric solution. Designed to meet the requirements of mission-critical data centers, these switches deliver exceptional availability, outstanding scalability, and the proven and comprehensive Cisco NX-OS Software data center switching feature set.
The Cisco Nexus 7700 Switches are the latest extension to the Cisco Nexus 7000 Series modular switches. With more than 83 terabits per second (Tbps) of overall switching capacity, the Cisco Nexus 7700 Switches delivers the highest-capacity 10, 40, and 100 Gigabit Ethernet ports in the industry, with up to 768 native 10-Gbps ports, 384 40-Gbps ports, or 192 100-Gbps ports. This high system capacity is designed to meet the scalability requirements of the largest cloud environments.
The Cisco Nexus 7700 switches (Figure 1) have operational and feature consistency with the existing Cisco Nexus 7000 Series Switches, using common system architecture, the same application-specific integrated circuit (ASIC) technology, and the same proven Cisco NX-OS Software releases.

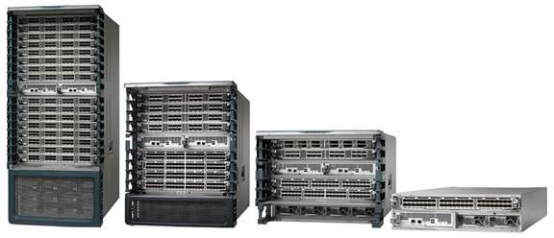

Figure 1. Cisco Nexus 7700 Switches
Features and Benefits
Powered by Cisco NX-OS, the Cisco Nexus 7700 switches deliver a comprehensive set of features with nonstop operations in four chassis form factors:
* Cisco Nexus 7700 2-Slot Switch: A 2-slot switch with two front-accessible module slots with front-to-back airflow and an integrated cable management system
* Cisco Nexus 7700 6-Slot Switch: A 6-slot switch with six front-accessible module slots with front-to-back airflow and an integrated cable management system
* Cisco Nexus 7700 10-Slot Switch: A 10-slot switch with 10 front-accessible module slots with front-to-back airflow and an integrated cable management system
* Cisco Nexus 7700 18-Slot Switch: An 18-slot switch with 18 front-accessible module slots and front-to-back airflow with integrated cable management system
Specifications
|
Item |
Cisco Nexus 7700 2-Slot Chassis |
Cisco Nexus 7700 6-Slot Switch |
Cisco Nexus 7700 10-Slot Switch |
Cisco Nexus 7700 18-Slot Switch |
|
Port count
|
48 x 10 Gbps, 24 x 40 Gbps, and 12 x 100 Gbps
|
192 x 10 Gbps, 96 x 40 Gbps, and 48 x 100 Gbps |
384 x 10 Gbps, 192 x 40 Gbps, and 96 x 100 Gbps |
768 x 10 Gbps, 384 x 40 Gbps, and 192 x 100 Gbps |
|
Product compatibility
|
* Supports all Cisco Nexus 7700 switch modules except the following: * N77-F248XP-23E * Does not use fabric modules |
* Supports all Cisco Nexus 7700 Series Supervisor and I/O modules * Supports Cisco Nexus 7700 Series Fabric-2 modules |
* Supports all Cisco Nexus 7700 Series Supervisor and I/O modules * Supports Cisco Nexus 7700 Series Fabric-2 modules
|
* Supports all Cisco Nexus 7700 Series Supervisor and I/O modules * Supports Cisco Nexus 7700 Series Fabric-2 modules |
|
Software compatibility
|
Cisco NX-OS Software Release 7.2 or later |
Cisco NX-OS Software Release 6.2.6 or later |
Cisco NX-OS Software Release 6.2.2 or later |
Cisco NX-OS Software Release 6.2.2 or later |
|
Options
|
* Door air filter * Lockable front module doors
|
* Door air filter * Lockable front module doors
|
* Door air filter * Lockable front module doors
|
* Door air filter * Lockable front module doors * Power supply center cable management |
|
System forwarding capacity
|
No fabric modules All I/O modules are line rate |
21 Tbps
|
42 Tbps
|
83 Tbps |
|
Max local switching capacity |
1.2 Tbps |
1.2 Tbps |
1.2 Tbps |
1.2 Tbps |
|
Max inter-slot switching capacity |
n/a |
1.2 Tbps |
1.2 Tbps |
1.2 Tbps
|
|
Reliability and availability
|
Online insertion and removal (OIR) of redundant power supplies
|
OIR of all redundant components: supervisor and fabric modules, power supplies, and fan trays |
OIR of all redundant components: supervisor and fabric modules, power supplies, and fan trays |
OIR of all redundant components: supervisor and fabric modules, power supplies, and fan trays |
|
MIBs
|
Supports Simple Network Management Protocol Version 3 (SNMPv3), v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) |
Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) |
Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)
|
Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support) |
|
Network management
|
Cisco Data Center Network Manager (DCNM) |
Cisco Data Center Network Manager (DCNM) |
Cisco Data Center Network Manager (DCNM) |
Cisco Data Center Network Manager (DCNM) |
|
Programming interfaces
|
* XML * Scriptable command-line interface (CLI) * Cisco DCNM web services * Python * Tool Command Language (TCL) * Cisco IOS® Embedded Event Manager (EEM) * Cisco One Platform Kit (OnePK TM) * OpenFlow |
* XML * Scriptable CLI * Cisco DCNM web services * Python * TCL * Cisco IOS EEM * Cisco OnePK * OpenFlow
|
* XML * Scriptable CLI * Cisco DCNM web services * Python * TCL * Cisco IOS EEM * Cisco OnePK * OpenFlow
|
* XML * Scriptable CLI * Cisco DCNM web services * Python * TCL * Cisco IOS EEM * Cisco OnePK * OpenFlow |
|
Physical specifications
|
* Required rack space: 3RU * 2-slot switch: 1 dedicated supervisor module and 1 I/O module * No fabric modules * 2 power supply slots * Dimensions (H x W x D): 5.15 x 17.3 x 29.1 in. (13.08 x 43.9 x 73.9 cm) * Chassis depth, including cable management and chassis doors, is 35.1 in. (89.15 cm) * Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable * Weight - Chassis only: 37.5 lb (17 kg) - Fan Tray: 13.5 lb (6.1 kg) * Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies |
* Required rack space: 9RU * 6-slot switch: 2 dedicated supervisor modules and 4 I/O modules * 6 fabric module slots * 4 power supply slots * Dimensions (H x W x D): 15.6 x 17.3 x 32 in. (39.62 x 43.9 x 81.3 cm) * Chassis depth, including cable management and chassis doors, is 38 in. (96.52 cm) * Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm) * Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable * Weight - Chassis only: 145 lb (65.8 kg) - Fabric Module: 5.6 lb (2.5 kg) - Fan Tray: 5.3 lb (2.4 kg) - Fan Tray (Generation 2): 7.75 lb (3.5 kg) * Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies |
* Required rack space: 14RU * 10-slot switch: 2 dedicated supervisor modules and 8 I/O modules * 6 fabric module slots * 8 power supply slots * Dimensions (H x W x D): 24.35 x 17.3 x 34 in. (61.85 x 43.9 x 86.4 cm) * Chassis depth, including cable management and chassis doors, is 40 in. (101.6 cm) * Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm) * Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack * Weight - Chassis only: 160 lb (72.6 kg) - Fabric Module: 11 lb (5.0 kg) - Fan Tray: 8.5 (3.9 kg) - Fan Tray (Generation 2): 12 lb (5.4 kg) * Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplies |
* Required rack space: 26RU * 18-slot switch: 2 dedicated supervisor modules and 16 I/O modules * 6 fabric module slots * 16 power supply slots * Dimensions (H x W x D): 45.25 x 17.3 x 35 in. (114.9 x 43.9 x 88.9 cm) * Chassis depth, including cable management and chassis doors, is 41 in. (104.1 cm) * Additional depth with Generation 2 fan tray is 1.75 in. (4.5 cm) * Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack * Weight - Chassis only: 300 lb (136.0 kg) - Fabric Module: 20 lb (9.1 kg) - Fan Tray: 13.5 lb (6.1 kg) - Fan Tray (Generation 2): 17.75 lb (8.1 kg) * Supports 3-kW AC and DC and 3.5-kW HV AC/DC power supplie |
|
Environmental specifications |
* Airflow direction: Front to back * Operating temperature: 32 to 104°F (0 to 40°C) * Operational relative humidity: 5 to 90%, noncondensing * Operating altitude: -500 to 13,123 ft. (agency certified 0 to 6500 ft.) * Seismic: Zone 4 per GR63 * Floor loading: 24 lbs per sq. ft. * Operational vibration * GR63, Section 5.4.2 * ETS 300 019-1-3, Class 3.1, Section 5.5 * Storage altitude: -1000 to 30,000 ft. * Storage temperature: -40 to 158°F (-40 to 70°C) * Storage relative humidity: 5 to 95%, noncondensing * Heat dissipation: Maximum 6650 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration) |
* Airflow direction: Front to back * Operating temperature: 32 to 104°F (0 to 40°C) * Operational relative humidity: 5 to 90%, noncondensing * Operating altitude: -500 to 13,123 ft. (agency certified 0 to 6500 ft.) * Seismic: Zone 4 per GR63 * Floor loading: 92 lbs per sq. ft. * Operational vibration * GR63, Section 5.4.2 * ETS 300 019-1-3, Class 3.1, Section 5.5 * Storage altitude: -1000 to 30,000 ft. * Storage temperature: -40 to 158°F (-40 to 70°C) * Storage relative humidity: 5 to 95%, noncondensing * Heat dissipation: Maximum 26,280 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration) |
* Airflow direction: Front to back * Operating temperature: 32 to 104°F (0 to 40°C) * Operational relative humidity: 5 to 90%, noncondensing * Operating altitude: -500 to 13,123 ft. (agency certified 0 to 6500 ft.) * Seismic: Zone 4 per GR63 * Floor loading: 122 lbs per sq. ft. * Operational vibration * GR63, Section 5.4.2 * ETS 300 019-1-3, Class 3.1, Section 5.5 * Storage altitude: -1000 to 30,000 ft. * Storage temperature: - 40 to 158°F (-40 to 70°C) * Storage relative humidity: 5 to 95%, noncondensing * Heat dissipation: Maximum 52,500 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration) |
* Airflow direction: Front to back * Operating temperature: 32 to 104°F (0 to 40°C) * Operational relative humidity: 5 to 90%, noncondensing * Operating altitude: -500 to 13,123 ft. (agency certified 0 to 6500 ft.) * Seismic: Zone 4 per GR63 * Floor loading: 230 lbs per sq. ft. * Operational vibration * GR63, Section 5.4.2 * ETS 300 019-1-3, Class 3.1, Section 5.5 * Storage altitude: -1000 to 30,000 ft. * Storage temperature: -40 to 158°F (-40 to 70°C) * Storage relative humidity: 5 to 95%, noncondensing * Heat dissipation: Maximum 96,160 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration) |
|
Regulatory compliance
|
* EMC compliance * FCC Part 15 (CFR 47) (USA) Class A * ICES-003 (Canada) Class A * EN55022 (Europe) Class A * CISPR22 (International) Class A * AS/NZS CISPR22 (Australia and New Zealand) Class A * VCCI (Japan) Class A * KN22 (Korea) Class A * CNS13438 (Taiwan) Class A * CISPR24 * EN55024 * EN50082-1 * EN61000-3-2 * EN61000-3-3 * EN61000-6-1 * EN300 386 |
|||
|
Environmental standards
|
* NEBS criteria levels - SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE) * Verizon NEBS compliance - Telecommunications Carrier Group (TCG) checklist * Century Link NEBS requirements - Telecommunications Carrier Group (TCG) checklist * ATT NEBS requirements - ATT TP76200 level 3 * ETSI - ETSI 300 019-2-1, Class 1.2 storage - ETSI 300 019-2-2, Class 2.3 transportation - ETSI 300 019-2-3, Class 3.2 stationary use * Validation in progress |
|||
|
Safety
|
* UL/CSA/IEC/EN 60950-1 * AS/NZS 60950 |
|||
|
Warranty
|
Cisco Nexus 7700 Switches come with the standard Cisco 1-year limited hardware warranty |
|||
